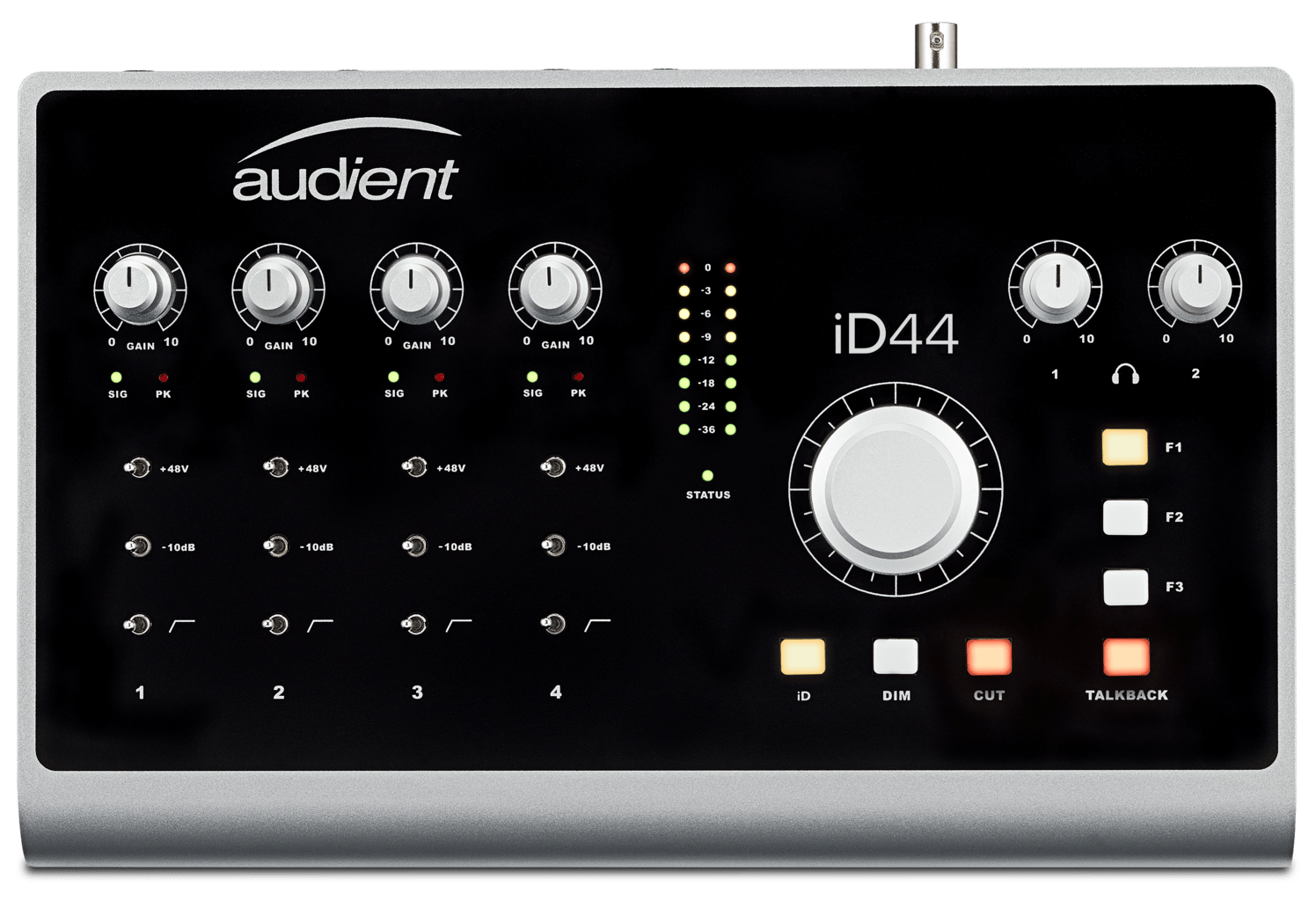

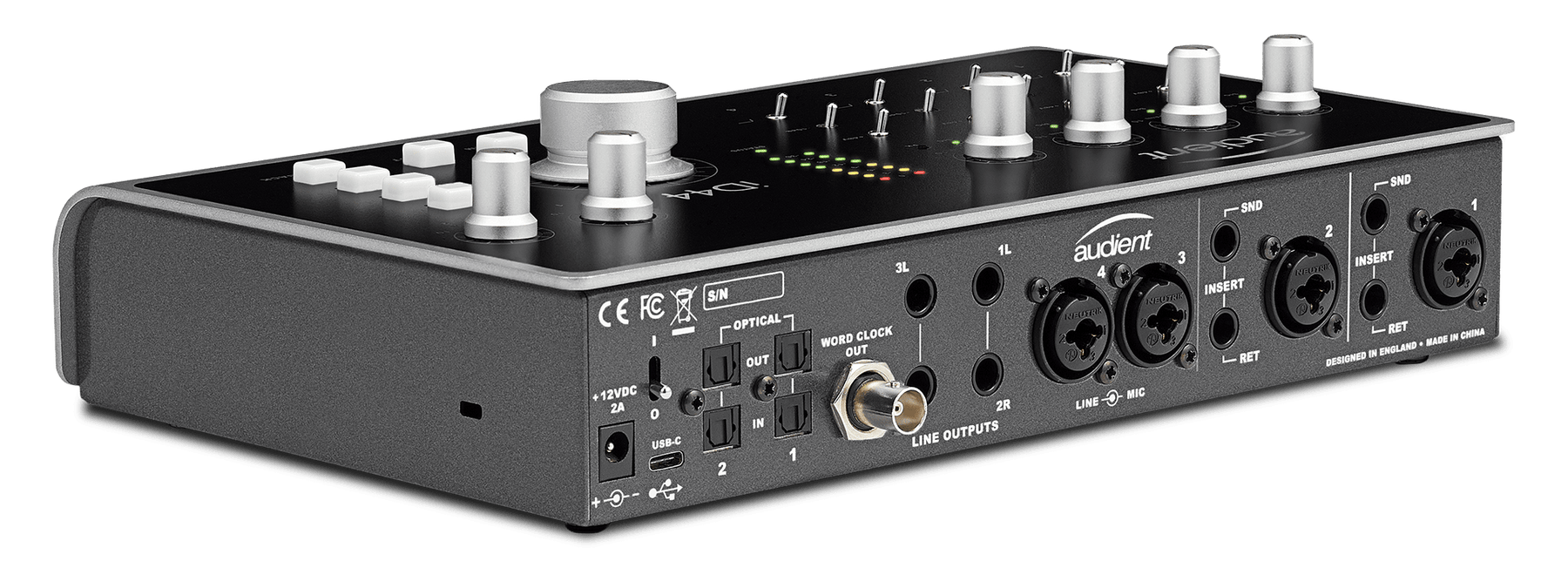

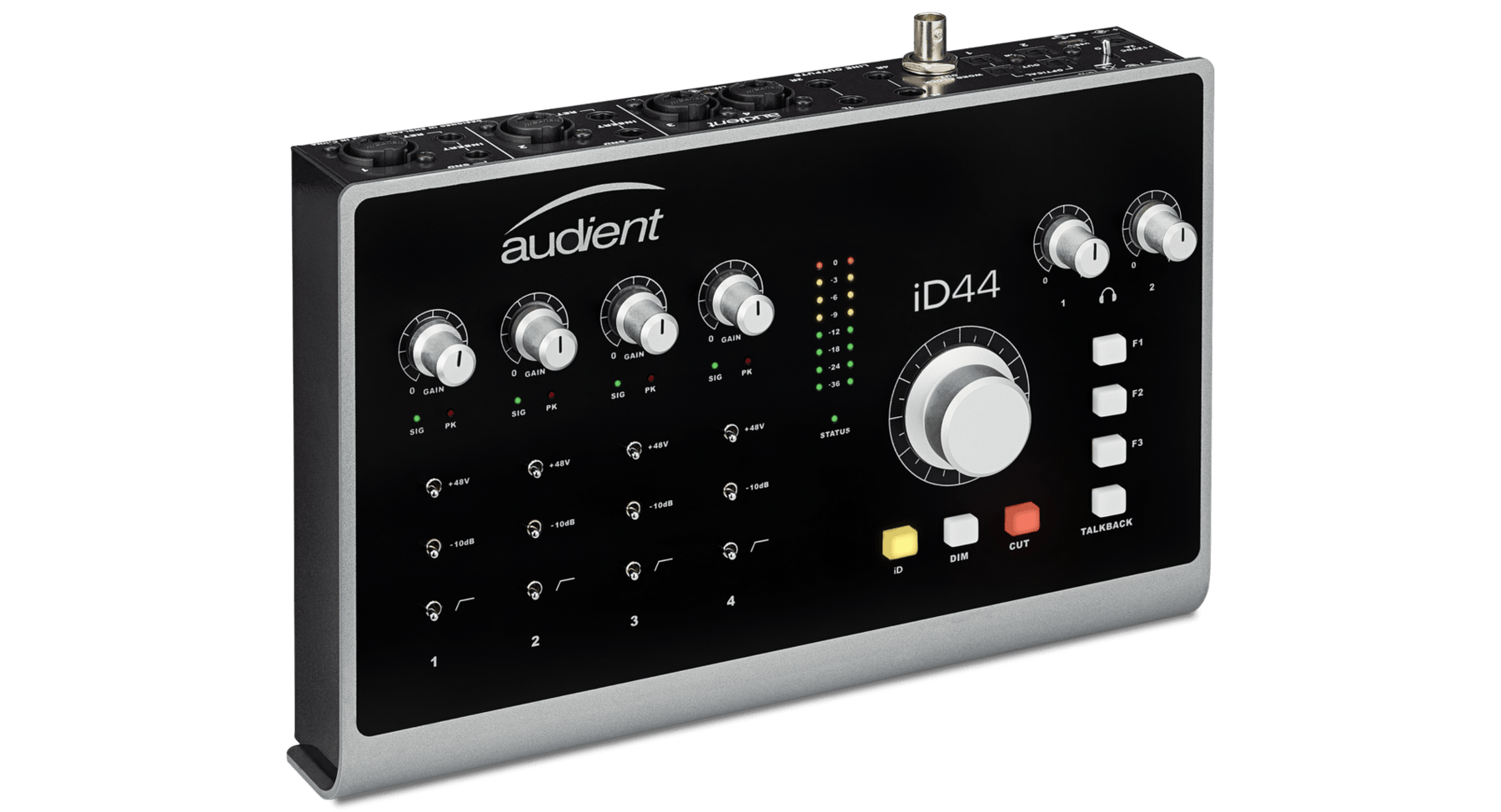

AUDIENT iD44 AUDIO INTERFACE

AUDIENT iD44 AUDIO INTERFACE
AUDIENT iD44 AUDIO INTERFACE
AUDIENT iD44 AUDIO INTERFACE

AUDIENT iD44 AUDIO INTERFACE

Regular price $699.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

The Classic Audient Sound with Console Mic Pres & Class Leading Conversion

Inspired by our 20 years of expertise in analogue hardware design, iD44 is our most powerful audio interface yet. Featuring four Audient console mic pres, class-leading converters, ADAT expandability and more, iD44 delivers the audio performance of an an Audient console on your desktop, giving you the professional sound you deserve.

iD44 features four Class-A console mic pres, the same discrete circuit design found in our renowned recording console the ASP8024-HE and throughout our product range. Designed to deliver ultra- low noise and low distortion, the Audient mic pre will provide an accurate reproduction of your source, along with enough analogue warmth to add a bit of character, making it the go to mic pre for any project.

Hear your audio more accurately than ever with iD44’s all new high performance AD/DA converter technology. Our next generation converters have been designed to deliver optimised dynamic range, ensuring you hear the most honest and natural translation of your recording. Hear subtle detail, make better mix decisions and experience remarkable clarity from the moment you press play.

Specifications

MICROPHONE PREAMPLIFIER:

(measured to insert send)

MIC GAIN: 0 to +60 dB
LINE GAIN: -10 to +50 dB
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-126dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +18dBu (+28dBu with pad)
INPUT IMPEDANCE (Mic): >3kΩ Balanced
INPUT IMPEDANCE (Line): >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 65kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-96dBu)
SNR: 96dB
Pad: -10dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I (Channel 1):

(measured to insert send)

D.I GAIN: -0 to +60 dB
MAXIMUM INPUT LEVEL: +10dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 95dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)

INSERT SENDS (Mic Pre Out):

MAXIMUM OUTPUT LEVEL: +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

ADC LINE INPUTS (Insert Returns):

(measured at optical output under AES-17)

MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUT IMPEDANCE: >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)
DYNAMIC RANGE: 121dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

DAC OUTPUTS (1-4):

(measured from optical input under AES-17)

MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -118dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)
DYNAMIC RANGE: 126dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

HEADPHONE OUTPUT (5&6):

(measured from optical input under AES-17)

MAXIMUM OUTPUT LEVEL: +14dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +14dBu
OUTPUT IMPEDANCE: <50Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)
DYNAMIC RANGE: 124dB A-weighted
MAX LEVEL INTO 30hms: +7.5dBu, 0.003%
THD+N, 2.6Vpk
Power: 225mW or Pavg 112.6mW
MAX LEVEL INTO 6ohms: +10.2dBu, 0.002%
THD+N, 3.55Vpk
Power: 210mW or Pavg 105mW
MAX LEVEL INTO 600ohms: +14.2dBu, 0.001%
THD+N, 5.7Vpk
Power: 54mW or Pavg 27mW
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

DIGITAL i/o:

ADAT 16 CHANNELS 44.1 - 48kHz
ADAT 8 CHANNELS (SMUX) 88.2 - 96kHZ
STEREO S/PDIF 44.1 - 96kHz

USB2.0 HIGH SPEED

No. of INPUT CHANNELS 20 (4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS 24 (8 Analogue, 16 Digital)
Connector: USB Type-C
Included Cables: 1.5m USB 2.0 Type-C to USB Type-C
1.5m USB 2.0 Type-C to USB Type-A

iD DSP Mixer Roundtrip (in to out) Latency:

44.1 kHz 0.677ms
48.0 kHz 0.625ms
88.2 kHz 0.345ms
96.0 kHz 0.3236ms

DAW Playback Latency @ 32 Sample Buffer for Software Instrument Playback:

44.1 kHz ~2.5ms
96.0 kHz ~1.6ms

DAW Roundtrip Software Monitoring Latency @ 32 Sample Buffer (in to out):

44.1 kHz 5.6ms
96.0 kHz 4.2ms

POWER SUPPLY:

12VDC Centre Positive DC Adapter - 2Amps
Internally conditioned to provide +48VDC, +/-15VDC & low voltage rails for digital processing core & converters. iD44 cannot be bus powered for quality reasons.

Weight:

Unit: 1.75kg

Packaged: 2.4kg

Dimensions:

Unit: 276mm (w) x 51mm (h) x 174mm (d)

Packaged: 354mm (w) x 103mm (h) x 229mm (d)
