AUDIO DAMAGE KOMPRESSOR
AUDIO DAMAGE KOMPRESSOR
Regular price$28900 $289.00
- Free shipping over $99
- Easy returns
- Secure payments
- In Stock
NEW WEBSITE! HIT US UP FOR AN EXISTING ACCOUNT ACTIVATION!
NEW WEBSITE! HIT US UP FOR A PREVIOUS ACCOUNT ACTIVATION!

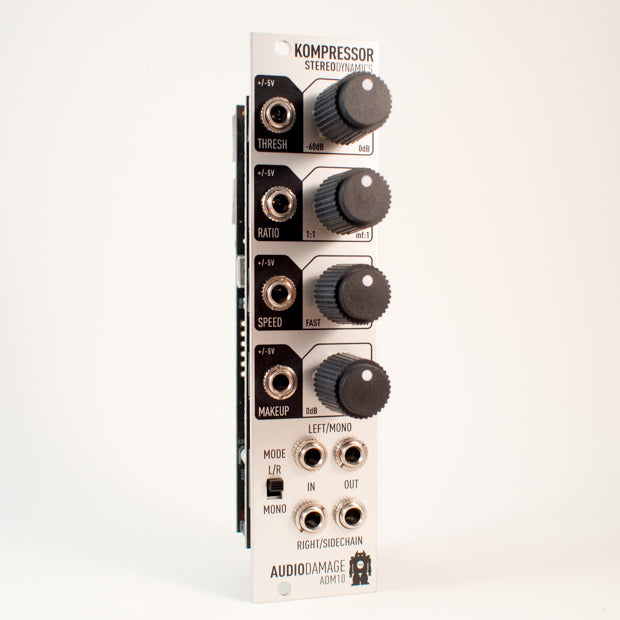

Kompressor is, as the name implies, a DSP-based buss compressor for the Eurorack format, with two operating modes: true stereo, or mono with sidechain. Equally at home taming your master outputs or drum mix, or sidechain-pumping a bass or synth line, Kompressor brings our incredibly popular dynamics code, used in many of our plug-in products (including Rough Rider, Rough Rider Pro, and Kombinat Dva), in to the realm of hardware.
» The THRESH knob controls threshold (sensitivity) level, from 0dB to -60dB.
» RATIO is a scaled control. The first half of the rotation goes from 1:1 to 1:10, and from 12 o'clock to fully clockwise, it goes from 1:10 to 1:1000 (infinite).
» The SPEED knob controls both the attack and release of the dynamics. At fully anti-clockwise, attack is 5ms and release is 50ms. At fully clockwise, attack is 100ms and release is 500ms.
» The MAKEUP knob adds gain to the final signal to compensate for attenuation in the compressor, from 0dB to +30dB. This leads directly to a soft-knee saturation stage; overdriving this stage provides everything from a mild "tube-like" saturation sound to full-on distortion, depending on the settings of the compressor stage.
» The MODE switch determines the unit's style of operation. In L/R mode, Kompressor is true stereo, while in M/SC mode, the LEFT input and output are the monophonic compressor. If a cable is plugged in to the RIGHT input, then the sidechain mode is activated, and the RIGHT input's level controls the gain reduction. The RIGHT input signal is passed through to the RIGHT output, for convenience's sake.
» Kompressor is a DSP-based effect that runs at 48kHz sample rate and 24 bit depth, via a high quality Cirrus-Logic codec.
» USB port (on the PCB board) for easy firmware updates.
» High-quality 100% Made In The USA construction, including panel-bolted 100,000-cycle BI potentiometers and custom stamped Rogan knobs.
» Power draw is 40ma from the +12V rail and 9ma from the -12V rail. This module has an on-board regulator and does not require +5V. Module depth is 25mm.
» Kompressor, like all Audio Damage hardware products, includes our lifetime unconditional warranty.
