As a special design the suitcase version of the A-100 frame is available even in a "monster" version with double width and height (168HP / 12HU). It can be chosen between a single and double version of the monster suitcase and even the monster cases are available in black or grey. For the double version the two suitcases are fixed together face-to-face during transportation so that no covers are required (as for the single version). Each monster suitcase is equipped with four power supplies with toroid transfomer/1200mA. Pay attention that the monster cases are special designs and no standard products we keep in stock. The delivery time is about 4-6 weeks and there is no right to return (concerning special designs please refer to our  terms of business).

Here are the details:

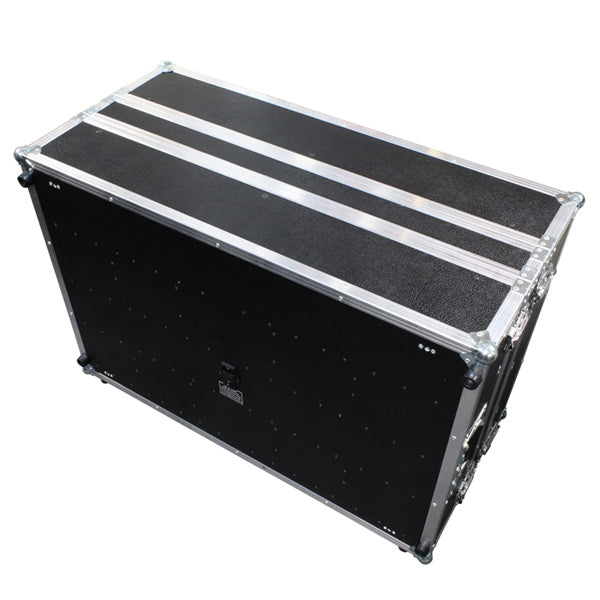

Double version of the 12U/168HP A-100 monster case (A-100PMD12):

outside dimensions (closed state): ~ 90 (length) x 62 (height) x 43 (depth) cm
weight of the complete double case (incl. bus boards, power supplies, middle connecting frame, without modules): ~ 35 kg
outside dimensions of a single case:  ~ 90 (length) x 62 (height) x 18 (depth) cm
available 19" width and height of each case: 12 U x 168 HP
weight of a single case (incl. bus boards, power supplies, without modules): ~ 16 kg
outside dimensions of the middle connecting frame:
~ 90 (length) x 62 (height) x 9 (depth) cm
weight of the middle connecting frame: ~ 3 kg
max. module current of each case: 4.8A (four power supplies 1.2A each, one power supply is assigned to two bus boards)
inside usable depth for A-100 modules: approx. 70 mm in the power supply area (bottom right), resp. approx. 100 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
position of the two mains inlets: center of the rear panel (standard), upon request even at the front side (same remarks as for the normal suitcase are valid)

A-100PMD12: custom made product, about 6-8 weeks delivery time
