DOEPFER A-165 DUAL TRIGGER MODIFIER - INVERTER

DOEPFER A-165 DUAL TRIGGER MODIFIER - INVERTER

DOEPFER A-165 DUAL TRIGGER MODIFIER - INVERTER

Regular price $80.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

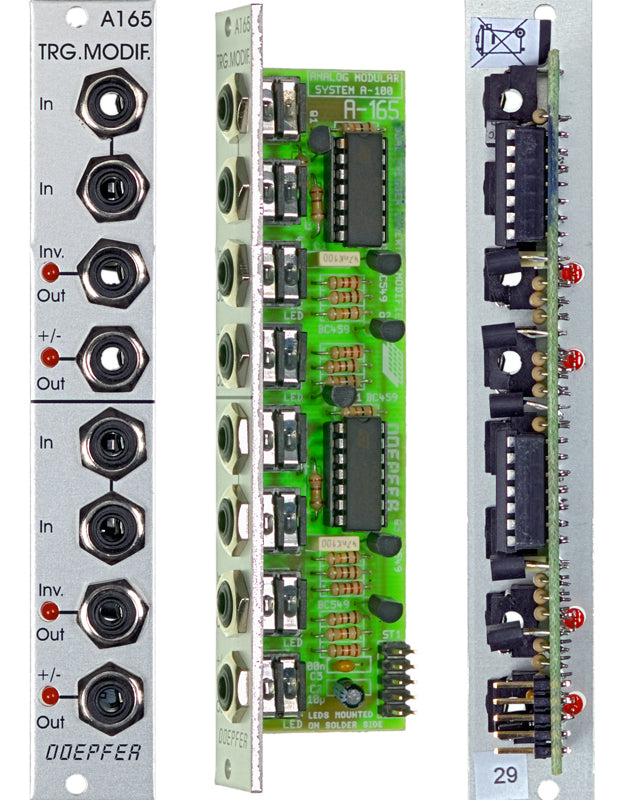

Module A-165 (Dual Trigger Modifier) contains two separate trigger modifiers, to use with logical / digital levels (Gate, Clock, Trigger). Each half of the module enables signals generated by the A-100 to communicate with other instruments (such as an external sequencer), or is simply used where you want to reverse a trigger polarity.
Whatever signal is patched into the input is inverted by the module, and fed out of the Inv. Out (inverted output) socket. At the same time, a trigger signal of roughly 50 ms is generated every time an edge of the trigger pulse is sensed (negative as well as positive). This trigger signal is available at the +/- output.
Two LEDs act as indicators showing the level of signal available at the two outputs.

For more detailed information please look at the English user's guide: A165_man.pdf


Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 35 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 20 mA
