DOEPFER A-190-2 LOW COST MIDI TO CV GATE INTERFACE

DOEPFER A-190-2 LOW COST MIDI TO CV GATE INTERFACE

DOEPFER A-190-2 LOW COST MIDI TO CV GATE INTERFACE

Regular price $140.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

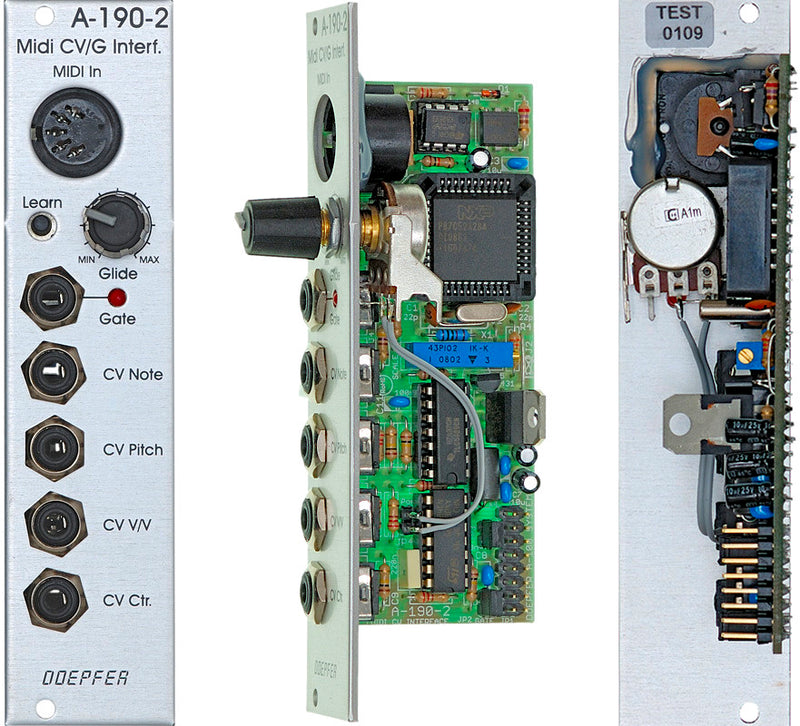

Module A-190-2 is an economically priced alternative to the MIDI-CV/SYNC interface A-190-1. It can be used in all cases where the additional features of the A-190-1 are not required (e.g. clock output, start/stop output). A-190-2 is the modular version of the established MCV4. Only some minor changes were made for a better adaption to the A-100 system, e.g. five 3.5 mm sockets,  zero-symmetrical CV for pitch bend to be able to adjust the pitch bend range e.g. in combination with the precision CV adder A-185-2, glide function.

These are the most important features of the A-190-2:

  • Midi CV/Gate interface

  • Gate output 0/+5V

  • CV1: this voltage is derived from incoming Midi note messages (0...+5V / 5 octaves), the glide control affects this CV output

  • CV2: this voltage is derived from incoming Midi pitch bend messages (-2.5 ... +2.5V)

  • CV3: this voltage is derived from the multiplication of incoming Midi volume messages and the velocity data of the note messages (0...+5V)

  • CV4: this voltage is derived from a freely adjustable Midi control change message (0...+5V)

  • Midi channel, reference note for 0V CV1 and the midi control change number for CV4 are adjusted by means of the learn button.

  • Glide control: portamento/slew limiter function for CV1

By means of two jumpers CV1 and Gate can be connected to the corresponding lines of the A-100 bus. That way the VCOs A-110 or A-111 and the envelope generator A-140can be controlled directly via the A-100 bus, i.e. it's not necessary to patch CV and Gate with cables between the front panels. In addition CV1 is buffered, i.e. even several VCOs can be controlled by the A-190-2 without the need of an additional bus buffer (e.g. A-185-1 or A-185-2).

A detailed description of the module can be found in the user's manual  A190_2_man.pdf

Attention: The module comes with installed bus jumpers for CV and Gate. One has to remove the jumpers if e.g. an A-164, A-190-1, A-190-3, A-185-1 or A-185-2 is already connected to the CV and/or gate lines of the same bus board!  If the A-190-2 should be used as CV and gate source for the A-100 bus the CV and gate connections of other CV/gate sources to the A-100 bus have to be removed. Otherwise short circuits are made between the outputs of the CV or gate transmitters !

Width: 6 HP / 30.0 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: 50 mA
