Enclave Flight 12U Features:



• 104hp x 4

• Length:  22.625”

• Width:  12.25”

• Height: 10.25”

• Case can close while patched

• Clearance above rails on each side: 1.75”

• Clearance above rails when case is closed: 3.5” (Metasonix safe)

• Clearance from top rails to bottom of case: 2.5”

• Multiple Configurations

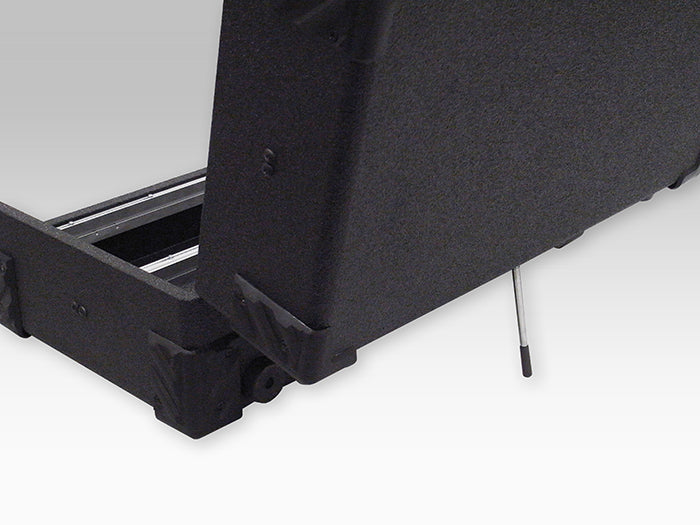

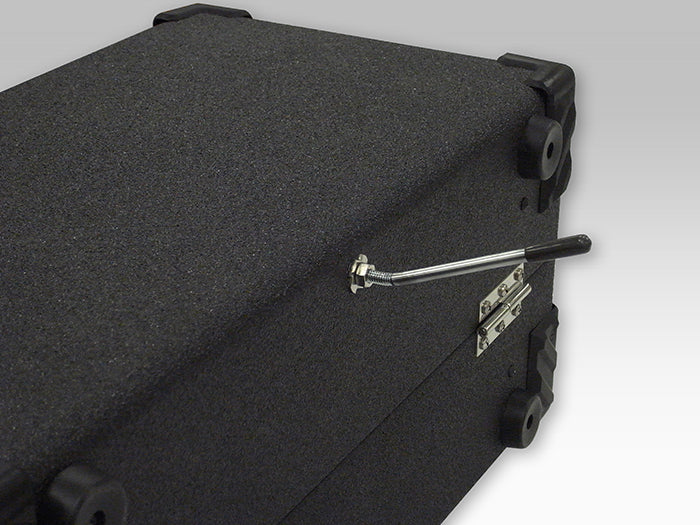

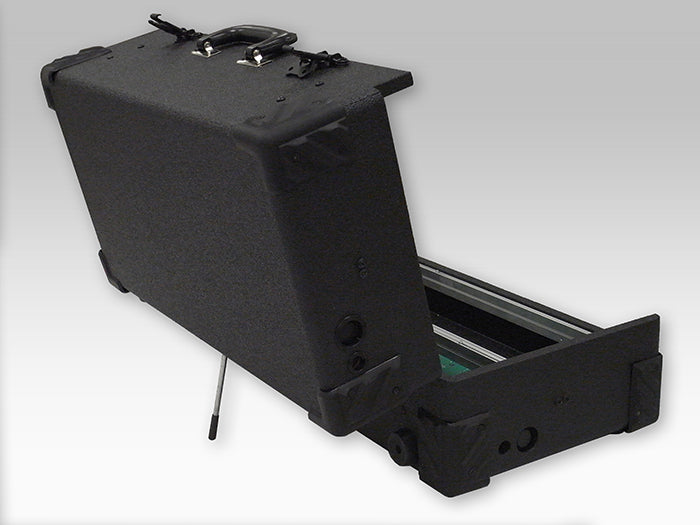

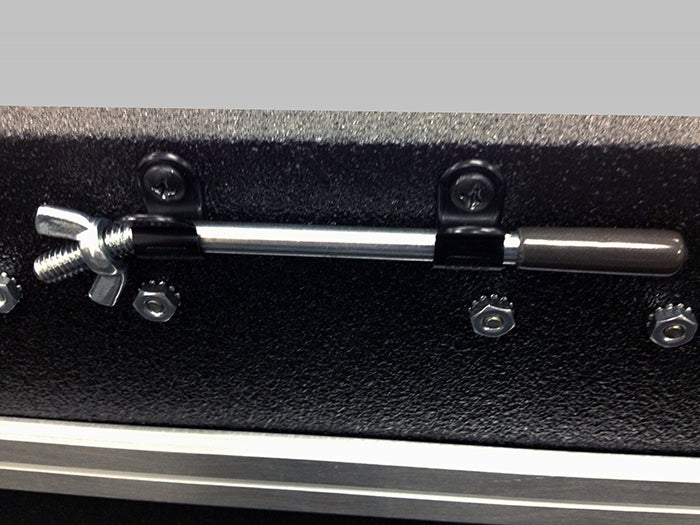

• Detachable stability leg that stores inside of case when not used

• Solid Dovetail Construction – no screws to pull out

• Military Grade two part polyurethane elastomer coating inside and out; Fabric Free (No Tolex to Snag or tear)

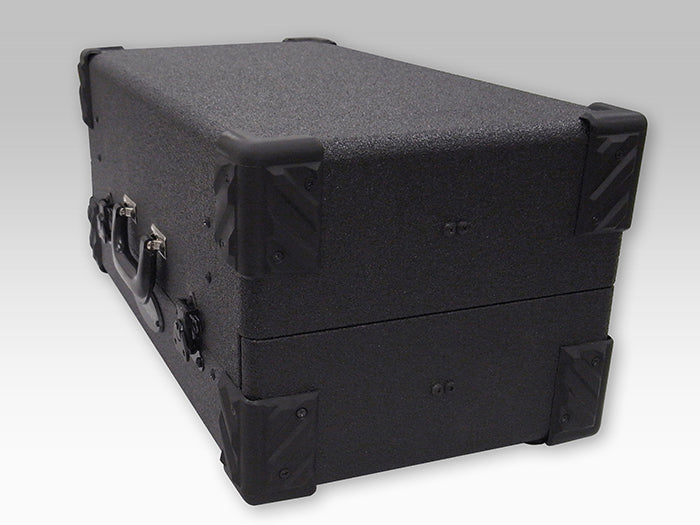

• Chevron Black Polymer Corners

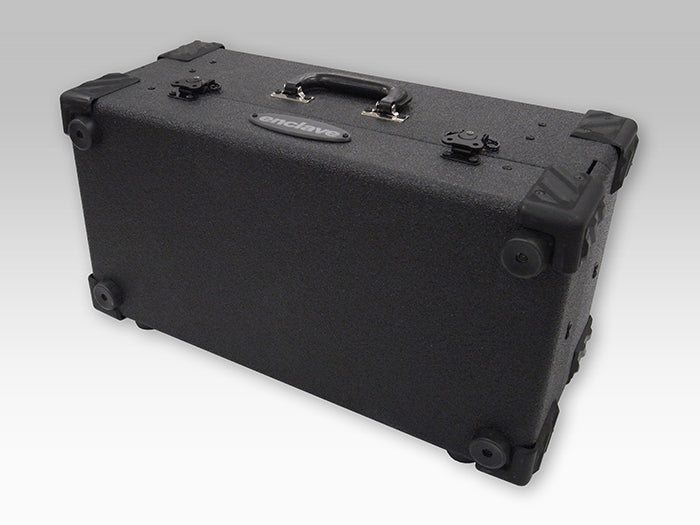

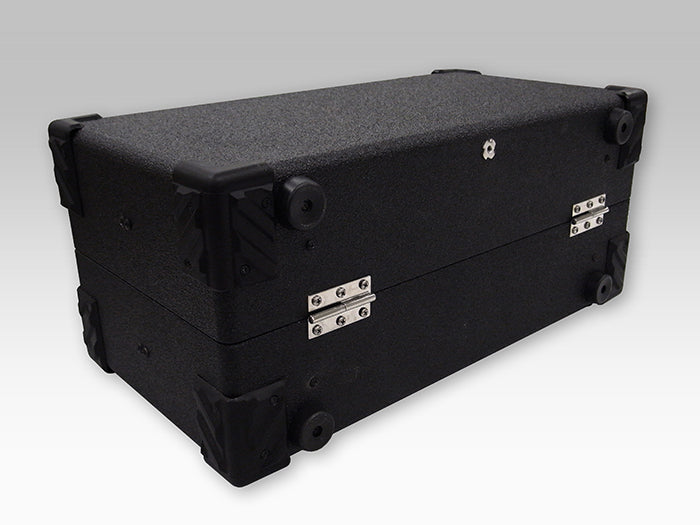

• Back Rubber Feet

• Meets most Airplane carry on requirements; only 16 lbs without modules. Click here for list of Airline Carry on Restrictions.

• Vector Rails with Sliding Nuts. Rails have no slots for losing nuts. Rails are easily removable for adding or removing nuts; 20 M2.5 nuts per rail and 160 screws included

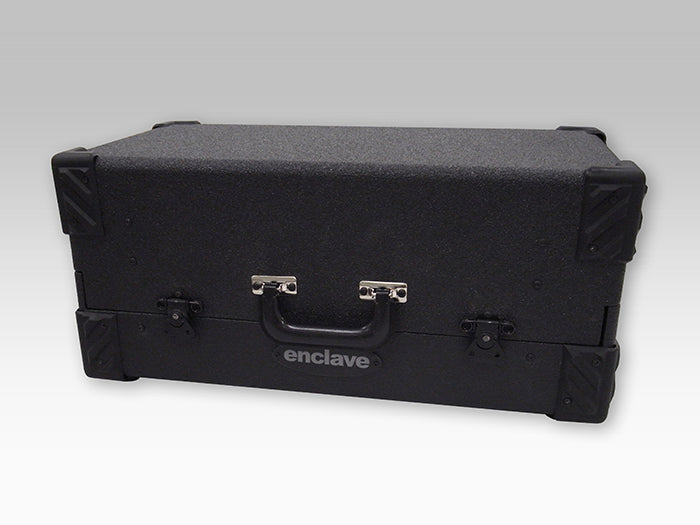

• Carrying handle

• 16lbs (7.26 kg)

• Comes with 2 Power Bricks

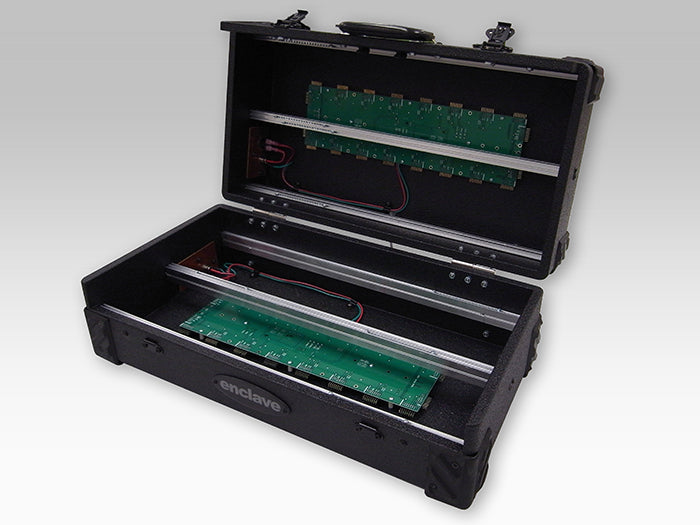

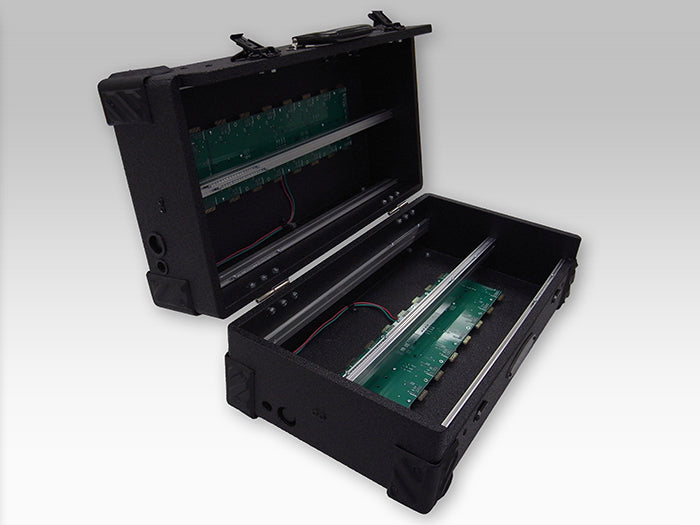

Two Make Noise Powered Bus Boards:



• Two Power Distribution boards, one on each side

• Power from +15V to +18V DC Wall-Wart, anywhere in the world

• Outputs: 2.8A +12V regulated, 2A -12 regulated, 500mA +5V regulated (there is an option for 1.5A +5V at added cost)

• 48 euro power connectors

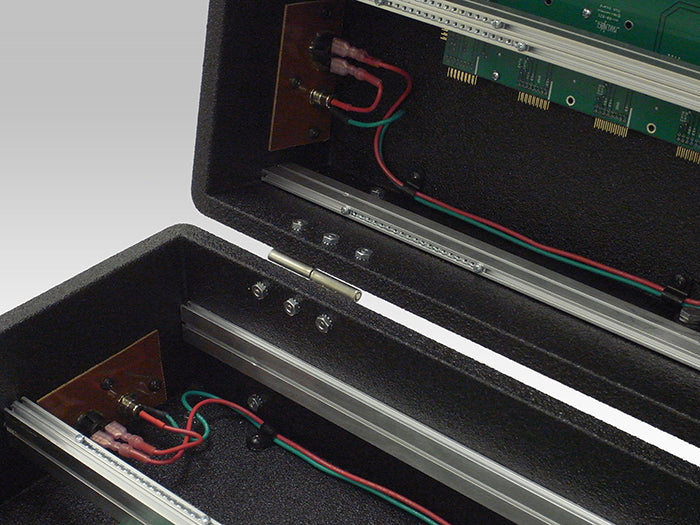

• Spade connectors for DC IN/ OUT/ GND (for chaining of DC power to multiple boards)

•  Spade connectors for +/-12V, System GND, +5V, and the CV/ Gate bus lines (for expansion)

• No heat to dissipate

• Low Noise, high stability

• Conservative Current rating

• Automatic ramp down to shut-off when current draw exceeds 2.2A

• Delayed power up to avoid false blowing of fuses (when powering up several Metasonix modules for example)

• Super-Efficient, averaging 90% efficiency. Much greener then typical linear supplies

• Unique design allow for powering two rows without the need for the passive bus board and additional wiring

• Lightweight and low profile (less than 18mm height)



We strongly suggest you anticipate your power requirements at www.modulargrid.net . You will quickly see that the Enclave power board is more than adequate for almost all configurations.
