ERICA SYNTHS POLIVOKS VCA II FULL DIY KIT

ERICA SYNTHS POLIVOKS VCA II FULL DIY KIT

ERICA SYNTHS POLIVOKS VCA II FULL DIY KIT

Regular price $119.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

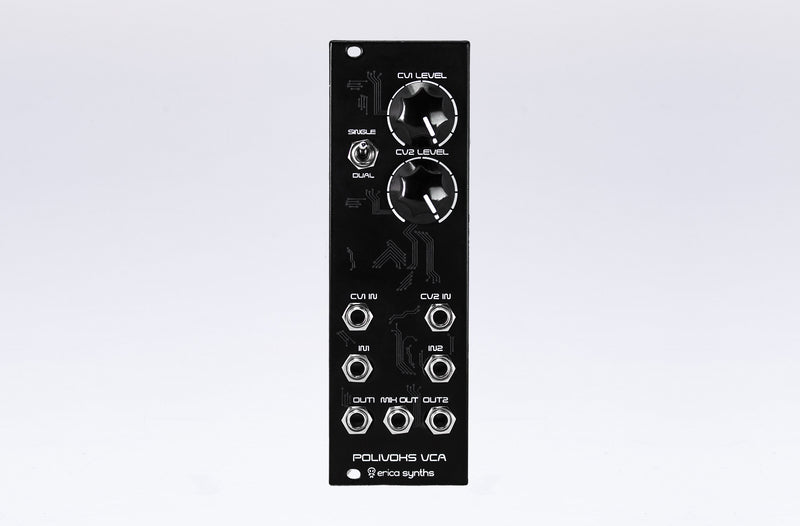

Erica Synths DIY Polivoks-inspired VCA is 35mm deep, skiff friendly, has solid mechanical construction and doesn’t require wiring.

Features



  • Single or Dual VCA mode
  • CV level adjustment for each VCA
  • Summed audio output (lower signal gain, though)
  • Skiff-friendly design



The Polivoks VCA has distinctive architecture – two differential opamp (Russian ICs K118UD1B) based VCAs in series, each for LFO and ADSR control over signal amplitude independently. Control voltage to attenuation behavior of this VCA is nonlinear and not logarithmic. It is kept authentic to the response of original Polivoks. Most parts of the VCA have been improved to achieve compatibility with eurorack signal and CV standards, higher dynamic range, better reliability, lower noise, accept higher signal levels, keep consistent behaviour, self-tuning of two internal offsets and higher linearity, but the heart of it is kept the same. We also redesigned audio signal path, so that you can use it as two independent VCAs or two VCAs in series as in original Polivoks, plus summed signal output.

Technical specifications:

VCA gain

1,2

CV level

-10V…+10V

Attenuation@0V CV

80dB

Panel width

8HP

Module depth

35mm

Power consumption

24mA@+12V, 18mA@-12V
