MAKE NOISE 7U STEEL CV BUS CASE

MAKE NOISE 7U STEEL CV BUS CASE

MAKE NOISE 7U STEEL CV BUS CASE

Regular price $660.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

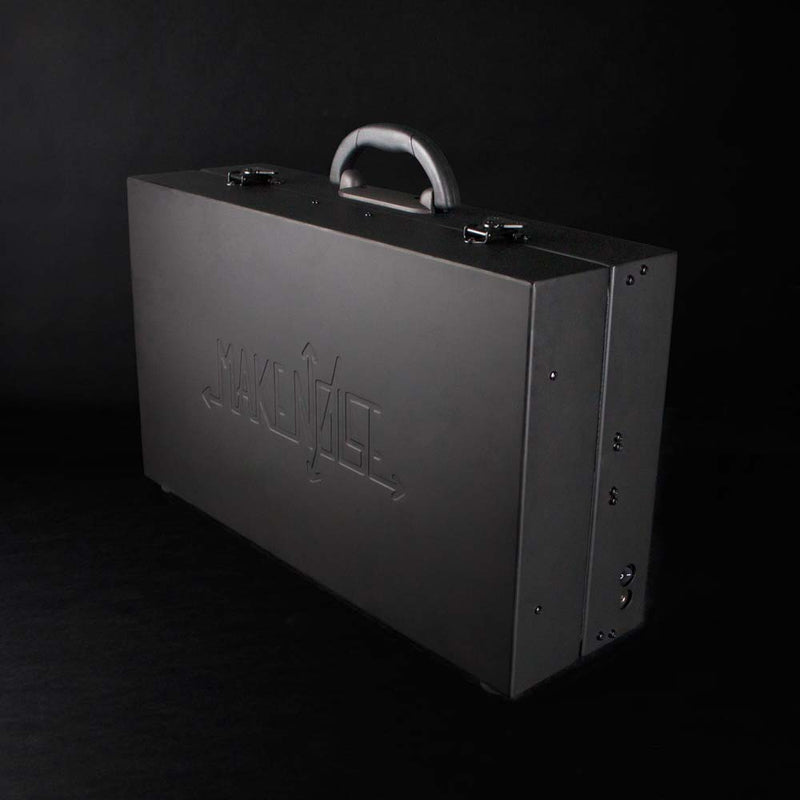

Our 208hp 7U CV Bus Case ships ready to use. Just add modules, patch cables and inspiration. The powder coated steel construction is 2 lbs. lighter than our wood Shared System case without compromising mechanical durability. The sleek matte black finish was selected to match our line of Black and Gold modules, and it looks great with just about any module installed. This finish will show the story of your modular synth's travels over the years. If you do not want that story to be told you will want to request your system to be built using our wood 7U case with scratch resistant black urethane coating.

208hp with power and 1U CV Bus module installed

Two 104 hp 6U rows of Eurorack module space

One 104hp 1U row for the CV Bus
40 Sliding M2.5 nuts with Black screws for ease in mounting modules of all widths

Rubber feet for playing the case on a table or other surface
Side mounted on/off switch and power inlet recessed for safe travel
Solid carrying handle and rubber feet on bottom side of lid so the case can travel upright with the lid attached

Lid is sealed to keep dust out during travel or storage

Lid offers enough space to close with your system patched

Meets Carry-On luggage size requirements for most airlines
Proven power solution continuously satisfying the euro market for 5 yrs. and counting is capable of a full case of modules.
5V power rail included
Eurorack bus and Select bus compatible
Universal AC power adapterworks world wide (Need IEC Cable for non-US outlets)


Internal Depth (for mounting modules with power supply clearance): 64mm (2.5")
Outer Dimensions: 550mm x 325mm x 175mm

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Outer Dimensions:
22.25" x 14" x 7.25" w/ lid
Max Module Depth: 2.5"
Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
Power: 1.4 amps @ 12Vdc, 1A @ -12Vdc, 1A @ +5Vdc (w/ powered bus board, CV Bus installed)
Connectors: 18
Includes: CV Bus, Powerd Bus Board, 80 Sliding M2.5 nuts w/ Black screws, AC Adapter
