Building on the tradition of warm and punchy analogue-style synth sounds, conceived by legendary synthesisers from the past, COBALT8X unlocks the full creative potential of analogue waveforms. This powerful, inspiring instrument reinvents the aesthetics of analogue sounds and invites musicians, producers and sound designers to explore a new era of virtual-analogue synthesiser textures, far beyond the limits of its analogue forefathers.
On top of the innovative oscillator engine of COBALT8X, we added a new morphable 4-Pole Ladder Filter. Combined with Modal’s unparalleled modulation options, an inspiring real-time / step sequencer, the energising arpeggiator, the Premium FATAR 61-note keyboard, MPE, studio-quality effects and MODALapp integration, COBALT8X is the perfect synth for everyone who wants a versatile electronic music instrument to play vintage synth sounds and is eager to enter new sound dimensions.
Eight true polyphonic voices tempt players to lay out wide string or rich synth pad chords, while a monophonic bass or lead patch, played with 64 oscillators can shake the walls of every stadium. And with the avant-garde sound forming features, every synth enthusiast can refine his performance with sounds that no other synthesiser is able to generate.
Play rich analogue-style sounds driven by COBALT8X’s Extended Virtual-Analogue Synthesis, combining traditional technology with modern synth features
Create your own signature sounds by harnessing the power of COBALT8X’s unique waveform architecture with 34 complex sophisticated algorithms and Modal’s morphable 4-pole Ladder Filter
Bring performance to a new level with MPE support, the integrated 512-note Realtime/Step Sequencer, 32-step programmable Arpeggiator and powerful Animation Lanes
Express yourself with the class-leading 61-note key bed with aftertouch, built into a road-ready aluminium enclosure
Integrate COBALT8 into your production and live performances with the full-size MIDI connections and the 3.5mm Sync Ins and Outs

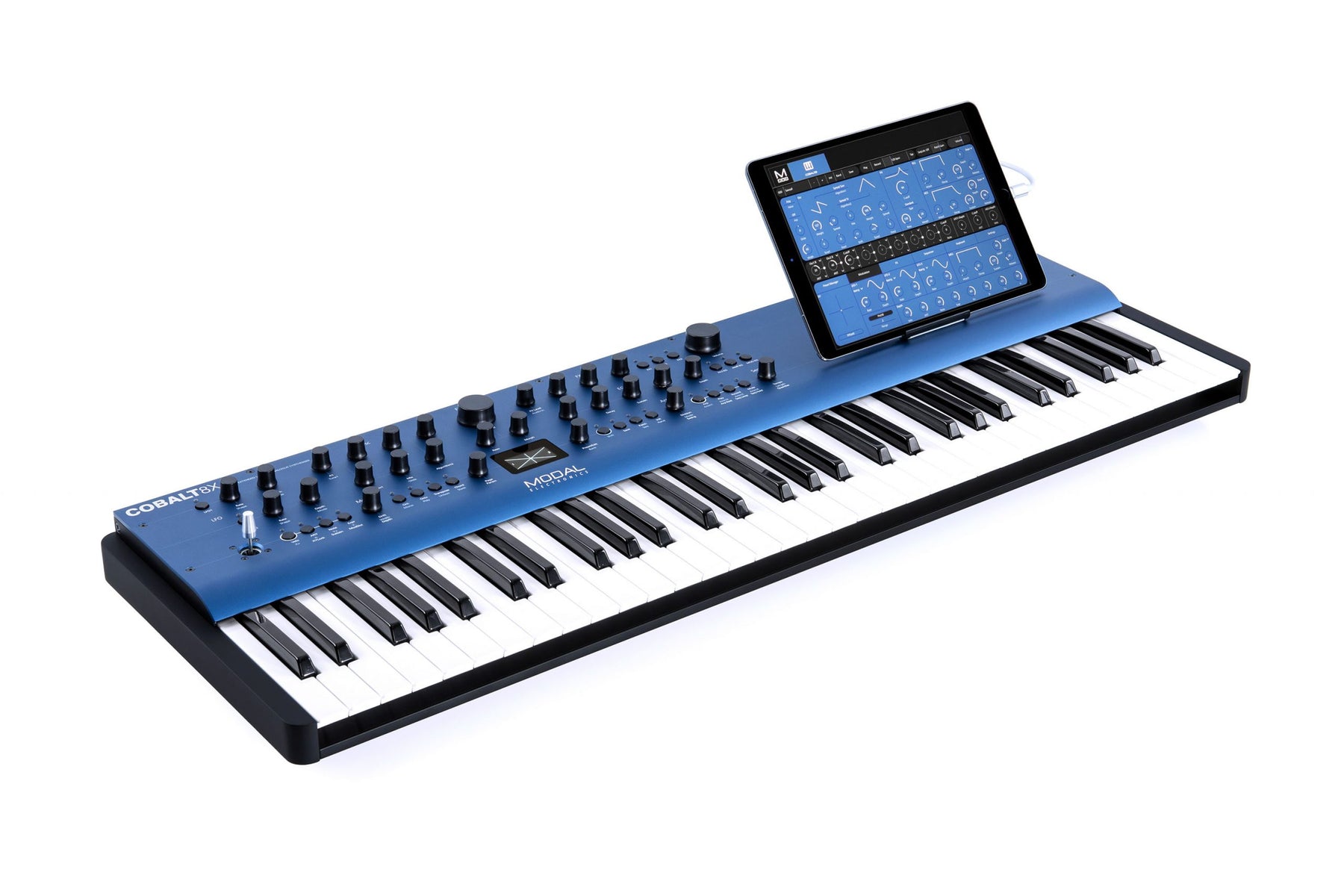

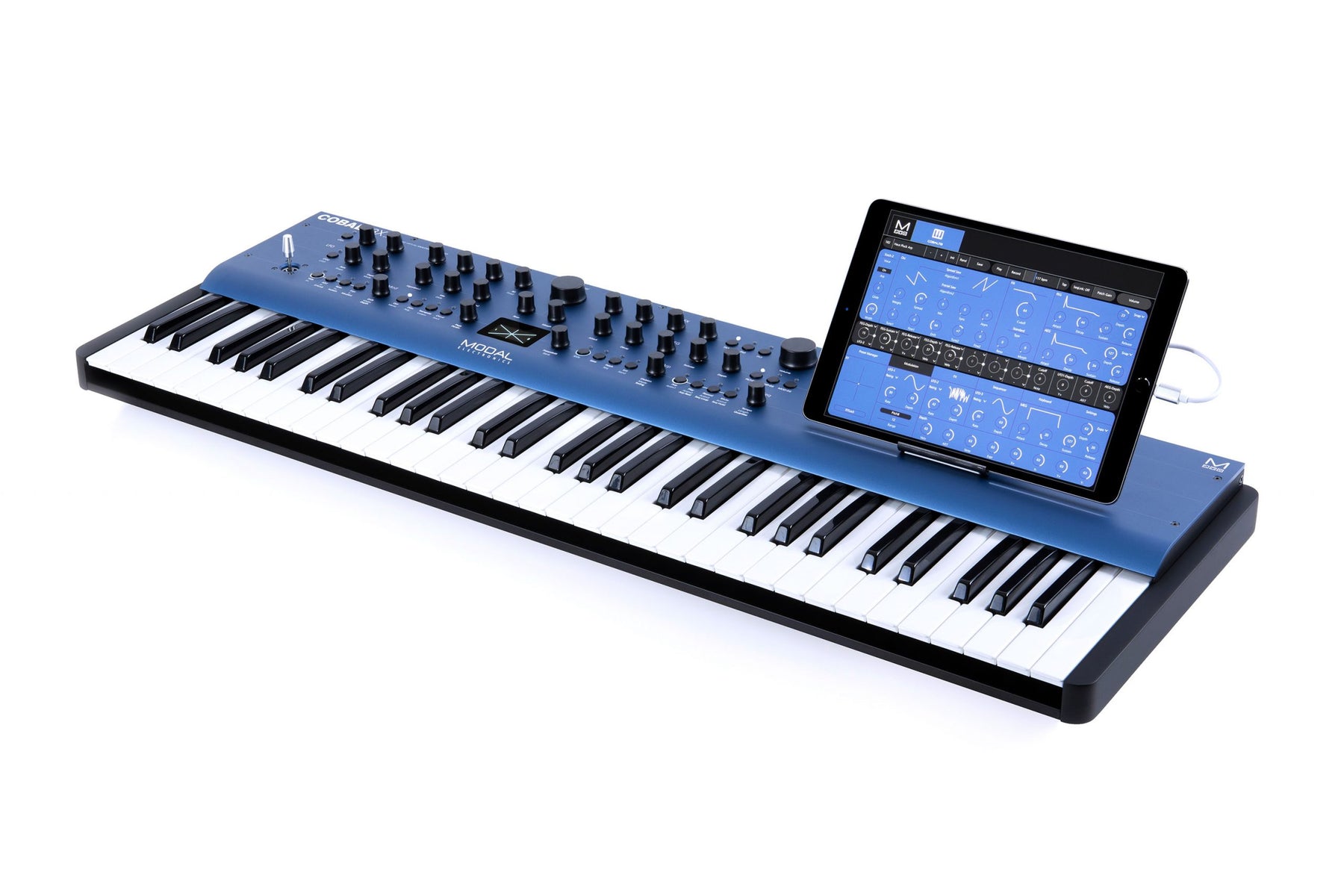

Access all synthesiser functions and update COBALT8 via the free MODALapp, available on macOS, Windows, iOS, iPadOS, Android and AU/VST3
Product Specification
Polyphony
True 8 voice polyphonic
MPE
Supports MPE-compatible MIDI controllers, allowing you to apply polyphonic control and expression to individual notes
Oscillators
64 high-resolution virtual-analogue oscillators, up to 8 per voice
Two independent and self-contained oscillator groups with sine, pulse, triangle, sawtooth waveforms, 34 different algorithms including: complex analogue synthesis techniques, built-in crossmodulation (SYNC, RM, and many more), PWM, smooth morphing between VA waves, bit crushing, filtered noise.
Extended Oscillator Drift
Filter
4-Pole Morphable Ladder Filter with Resonance and four switchable configurations
Resonance and Balanced Filter Modes
Modulation
Three dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously including negative (reverse) versions for MOD and FILTER ENVs
Three audio-rate LFO’s with tempo sync (two poly, one global) with seven different shapes
Eight assignable modulation slots and four additional fixed modulation routings for common assignments with 12 modulation sources and 55 modulation destinations
Sequencer and Arpeggiator
Polyphonic Real-time sequencer with 512 notes and four recordable/editable parameter animations (Delay FX, LFO’s, sequencer and arpeggiator can be either clocked internally or externally)
Polyphonic Step Sequencer with 64 steps, 8 notes per step, 4 lanes of Parameter-Lock style animation, Step Input mode, multiple playback modes including gate modes and rest function
Built-In sophisticated programmable arpeggiator of 32 steps with rest capability with up to 2048 steps before repeating
FX
Three incredibly powerful independent and user-configurable stereo FX engines for Chorus, Phaser, Flanger (Pos), Flanger (Neg), Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb that can be arranged in any order
User Memory
500 patch memories, all fully editable and ships with 300 factory programs
100 sequencer presets that can be linked to any patch for quickly loading arrangements
100 FX presets
8 Quick Recall slots accessible from the panel for quickly loading your favourite patches
Controls and Performance
Premium FATAR 61-key Keyboard with velocity and channel aftertouch
29 endless encoders, 24 buttons
4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired
Multiple keyboard modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4
Glide/Portamento with both legato and staccato modes
Chord Invert control to easily create chord inversions and variations

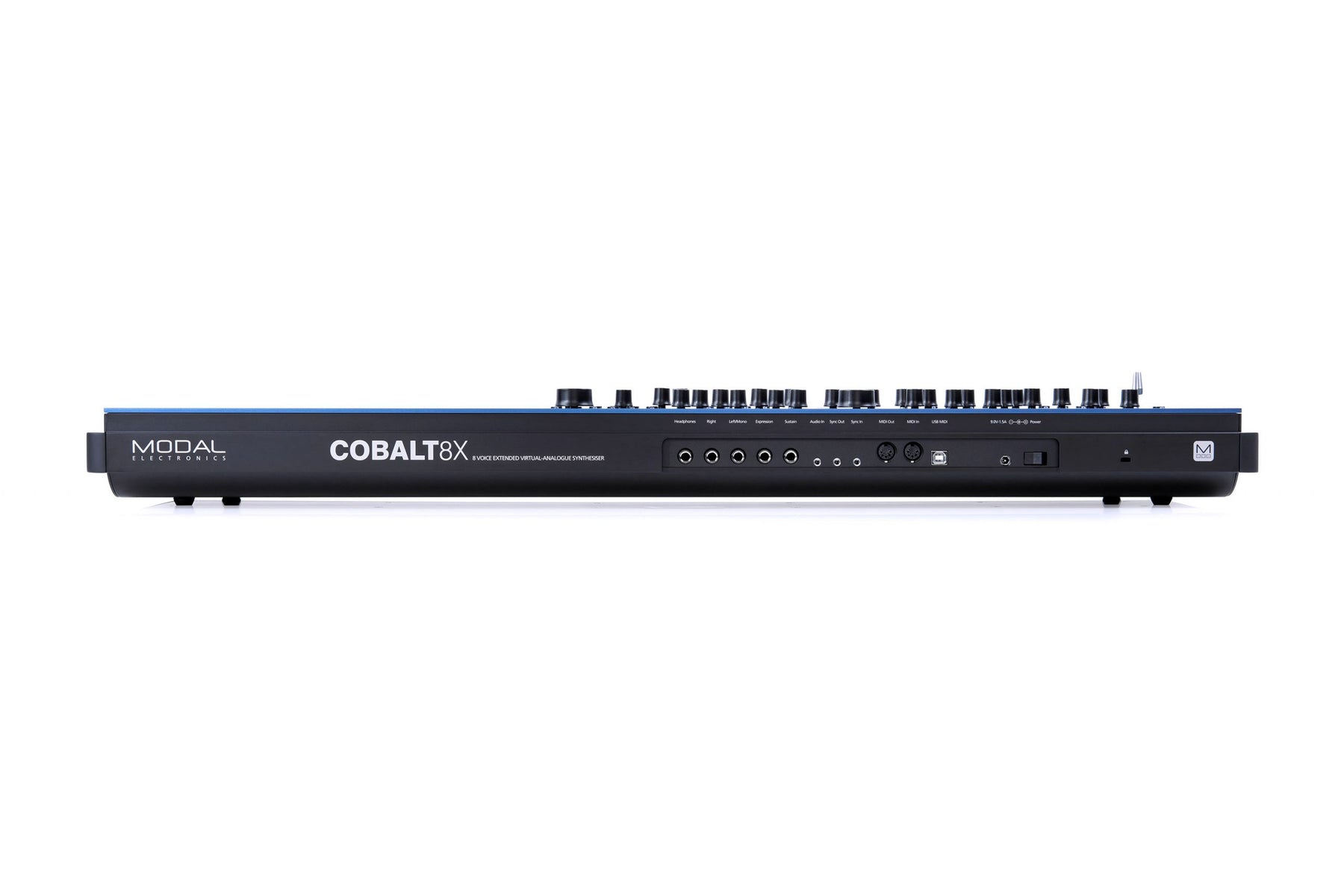

Inputs and Outputs
6.35 mm / 1/4″ TS dual-mono line outputs
6.35 mm / 1/4″ TRS headphone output
3.5 mm / 1/8″ TRS stereo audio input
MIDI DIN In and Out
3.5 mm / 1/8″ TS Analogue clock sync In and Out
Class compliant MIDI over USB connection
6.35 mm / 1/4″ TRS expression pedal input
6.35 mm / 1/4″ TS sustain pedal input
Enclosure and Display
Road-ready steel and aluminium enclosure with economical stained bamboo end cheeks
1.54-inch large OLED display for instant visual feedback at all times of playing/editing
Power
Power: DC-9.0V – 1.5A centre-positive
Editor Software
Free MODALapp software editor available for macOS, Windows, iOS and Android
MODALapp can also be run within your Digital Audio Workstation (DAW), with VST3 and AU versions available
General
Dimensions (L x W x H): 855 x 300 x 100 mm / 33.7″ x 11.8″ x 4″
Weight: 9 kg / 19.9 lbs
