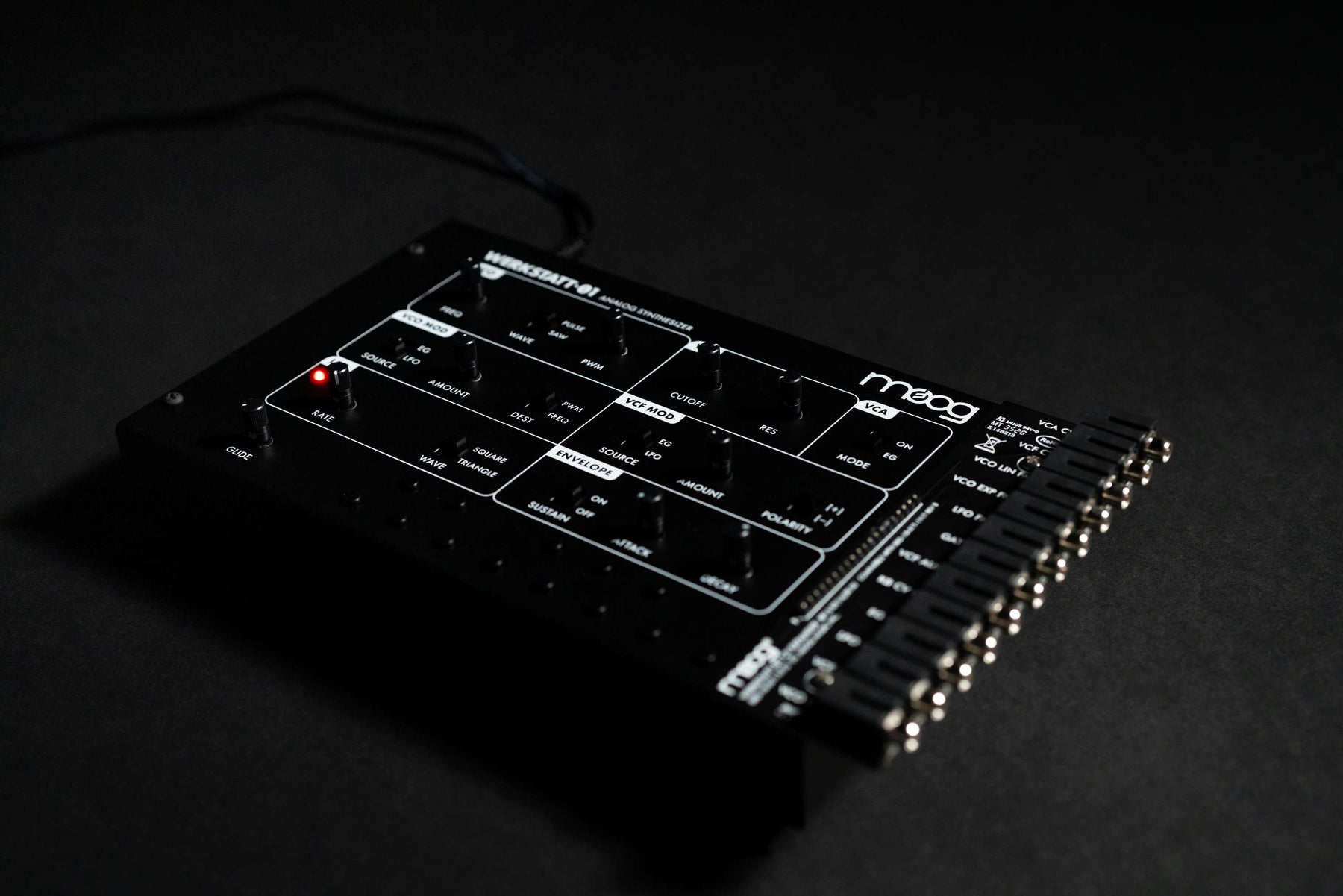

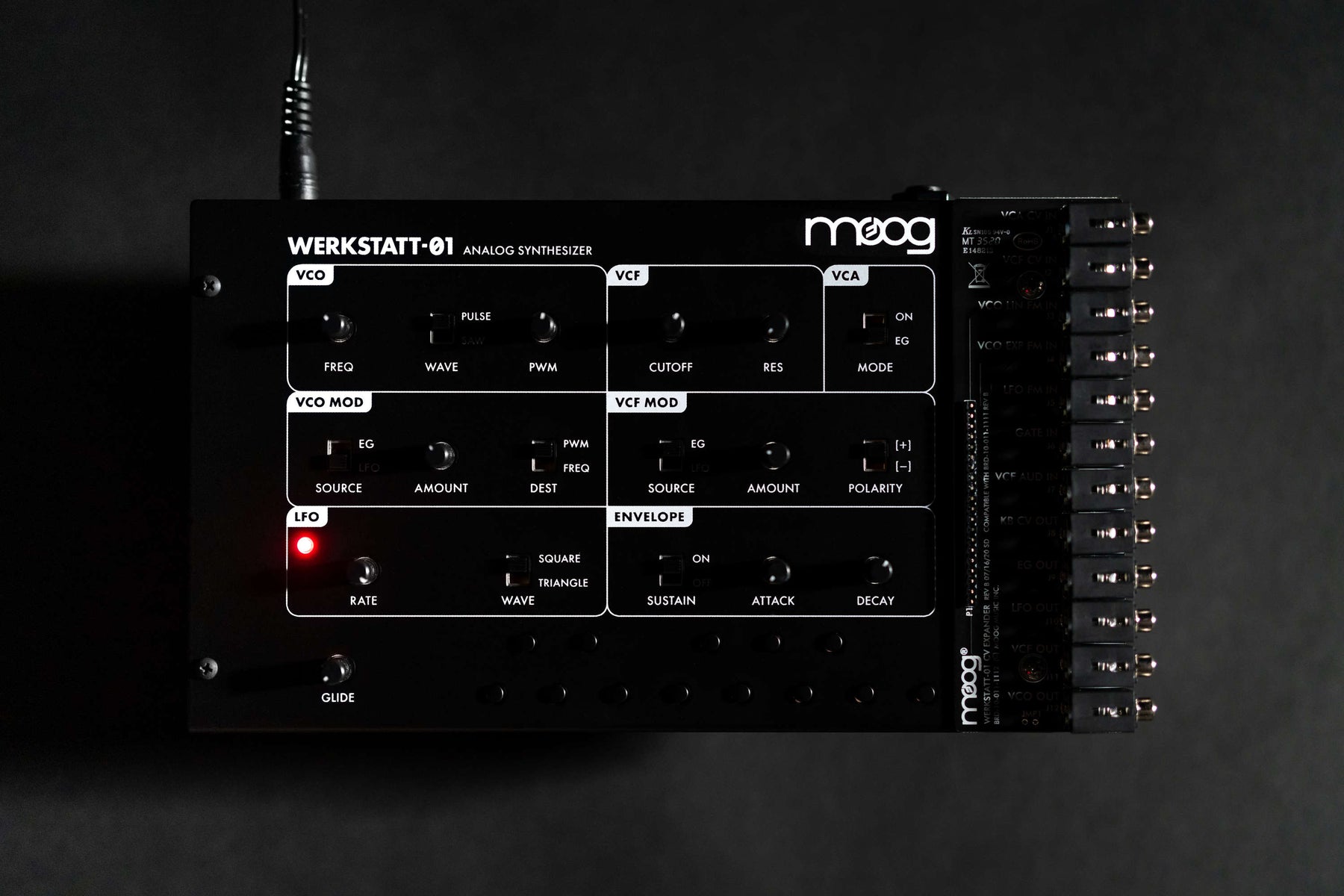

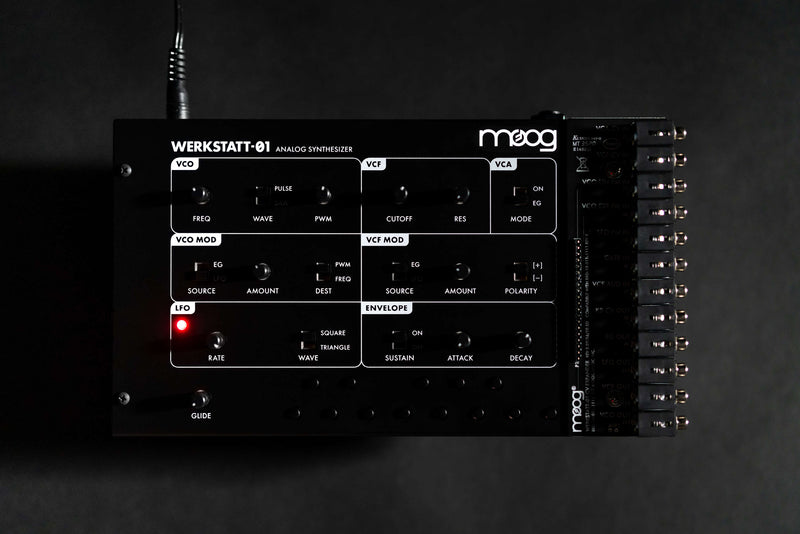

MOOG WERKSTATT 01 & CV EXPANDER

MOOG WERKSTATT 01 & CV EXPANDER
MOOG WERKSTATT 01 & CV EXPANDER
MOOG WERKSTATT 01 & CV EXPANDER
MOOG WERKSTATT 01 & CV EXPANDER

MOOG WERKSTATT 01 & CV EXPANDER

Regular price $199.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

Werkstatt-01’s 100% analog circuits deliver the classic soul and futuristic sound Moog synthesizers are known for. Featuring an full-range analog oscillator with selectable waveforms to power your sound and the legendary Moog Ladder Filter for precision harmonic sculpting, this instrument covers a vast expanse of sonic territory. Adding movement and modulation is as simple as engaging Werkstatt-01’s Analog LFO circuit to impart your sound with the motion of gently breathing waves –or crank up the LFO speed and summon cosmic laser beams. A 2-stage Analog Envelope Generator with Sustain gives you the control to shape your dynamics, dialing in everything from lush electronic string swells to punchy basslines and organic percussion hits – and everything in between!


OSCILLATOR SECTION

• Single VCO w/ frequency control (8Hz to 16KHz)

• Saw and square waveshapes w/ control for square pulse width

• Envelope or LFO selectable Mod Source that can be assigned to PWM or Pitch w/ Amount control

• Ability to PWM the square wave



FILTER SECTION

• Classic 4-Pole Moog Ladder Filter w/ Resonance control (20Hz-20KHz)

• Select between the Envelope generator and LFO as Mod Source.

• Polarity switch (+/-) and amount  knob for control of filter cutoff modulation



LFO SECTION

• Selectable Square or Triangle waveshape w/ rate control (2Hz-600Hz)



VCA/AMP SECTION

• Select between the Envelope Generator or ON (Drone)



ENVELOPES SECTION

• Controls for Attack & Decay time w/ Sustain On/Off switch



KB SECTION

• One octave low-note priority legato keyboard w/ glide control



PATCHBAY

• VCA Input0V to +5V in VCA EG Mode, +/-2.5V in VCA ON Mode

• VCF Input-5V to +5

• VCO LINEAR FM Input +/-2.5V - NOTE: this is an inverting control input

• VCO EXPONENTIAL FM Input -5V to +5V, 1V/Octave trimmable

• LFO CV Input 5V to +5V – NOTE: Negative CV slows LFO more than the panel

• VCF AUDIO InputUnbuffered/Unmixed AC coupled input to VCF

• 2x KB CV Output3V/semitone from 1 keyboard - NOTE: Attenuate for 1V/Octave

• 2x TRIG Output 5 msec pulse, 0 to +5 V signal generated from low-note priority

• 2x GATE Output0 to +5V signal generated from low-note priority

• 2x EG Output0 to +5V signal, Simple ASD or AD type Envelope Generator

• 2x LFO Output -2.5 to +2.5V Triangle or Square wave, selected via LFO Switch

• 2x VCF Output-2V to +2 V signal for audio or CV uses

• 2x VCO Output0V to +5V VCO signal, wave selected by VCO Wave Switch



Rear Panel

• AUDIO Output Nominal +/-1.5V Signal

• POWER+12VDC Center Positive w/ 1.2A Wall transformer

• POWER CONSUMPTION 1.8 Watt AVG

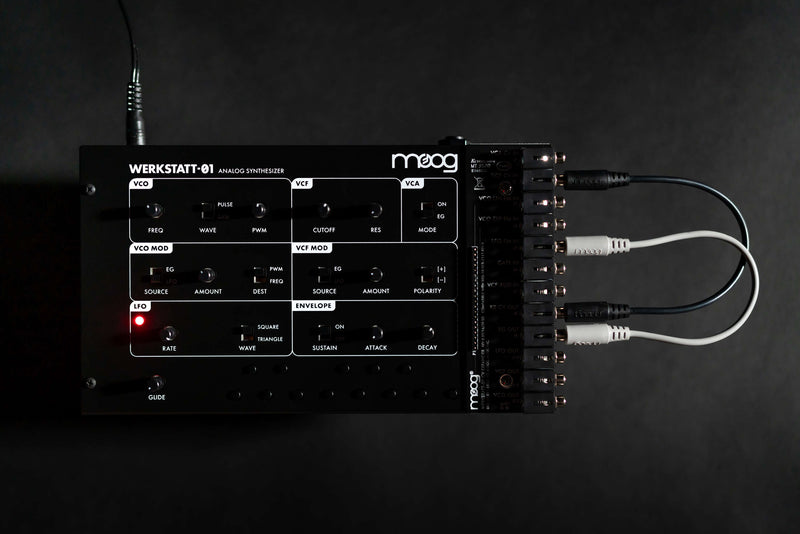

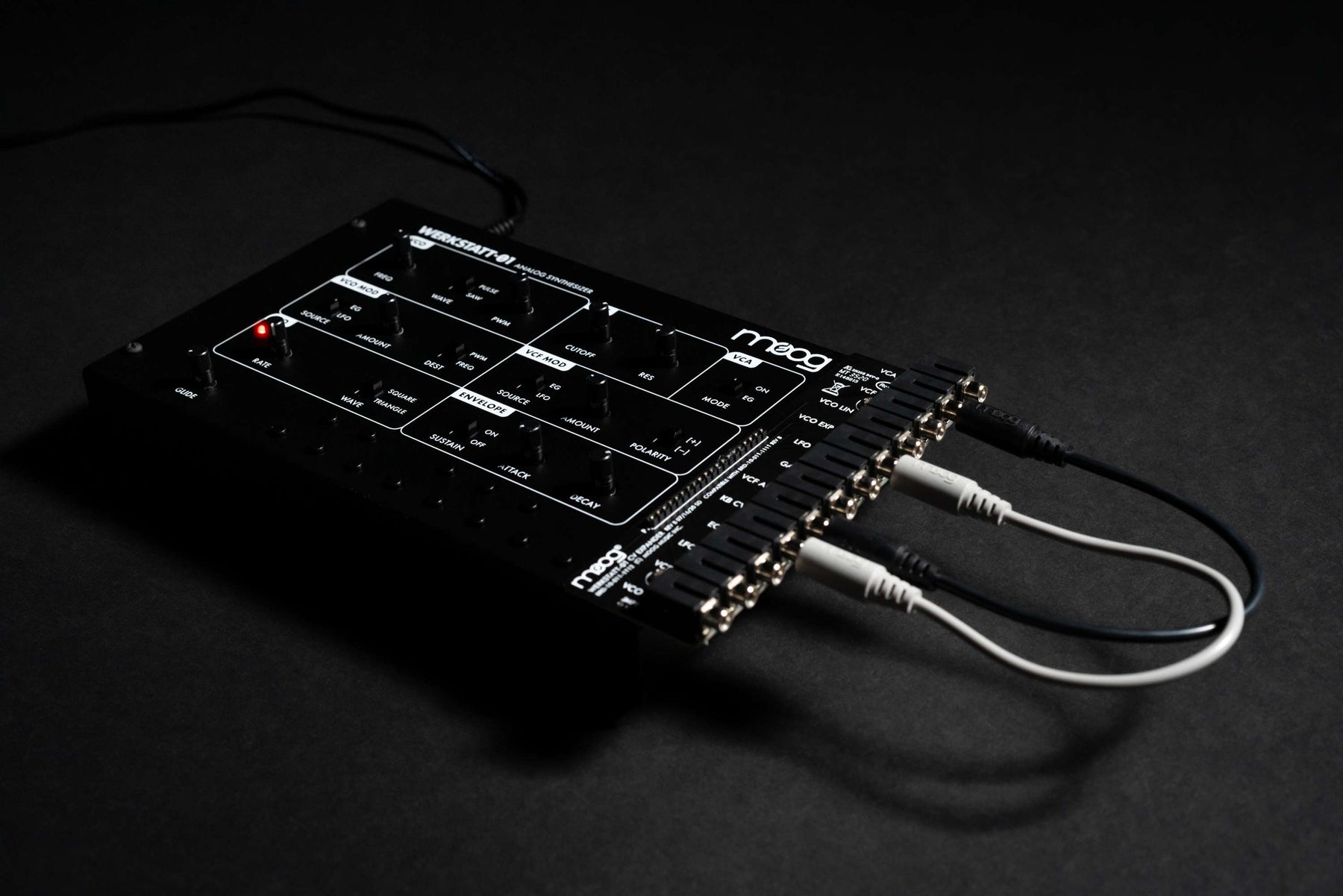

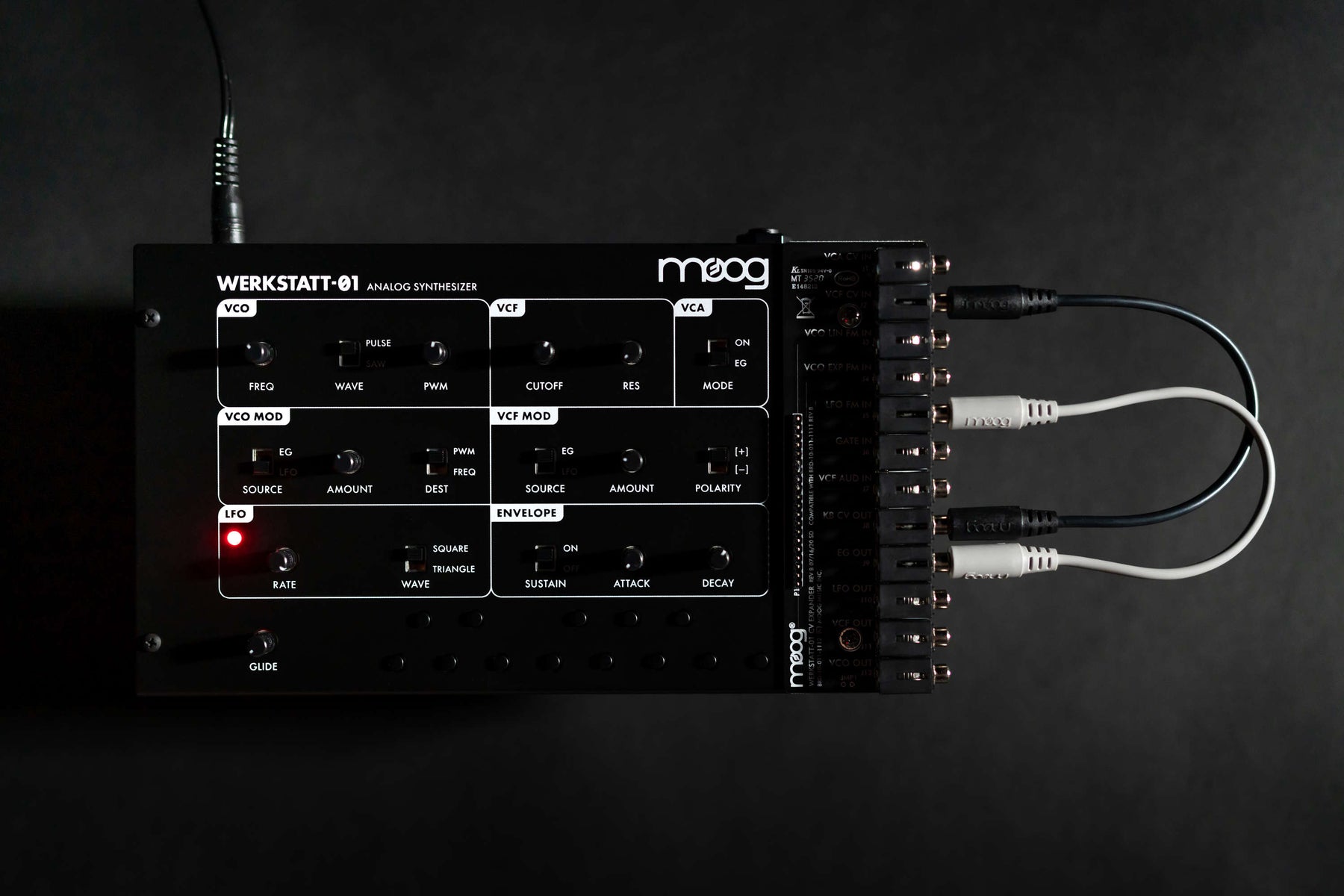

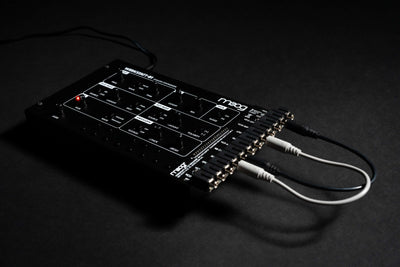

The included CV Expander takes your synthesizer experience to the next level where new connections can be made and new sounds are unlocked. Patching inputs and outputs together from the 12 jacks of the ⅛” patch bay will reconfigure Werkstatt-01’s circuits to create new signal paths and empower new sonic explorations. As your synthesizer journey evolves, use the included CV Expander to connect your Werkstatt-01 as an enhancement to other Moog Semi-Modular Synthesizers or Eurorack systems.
