Regular price $1,499.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

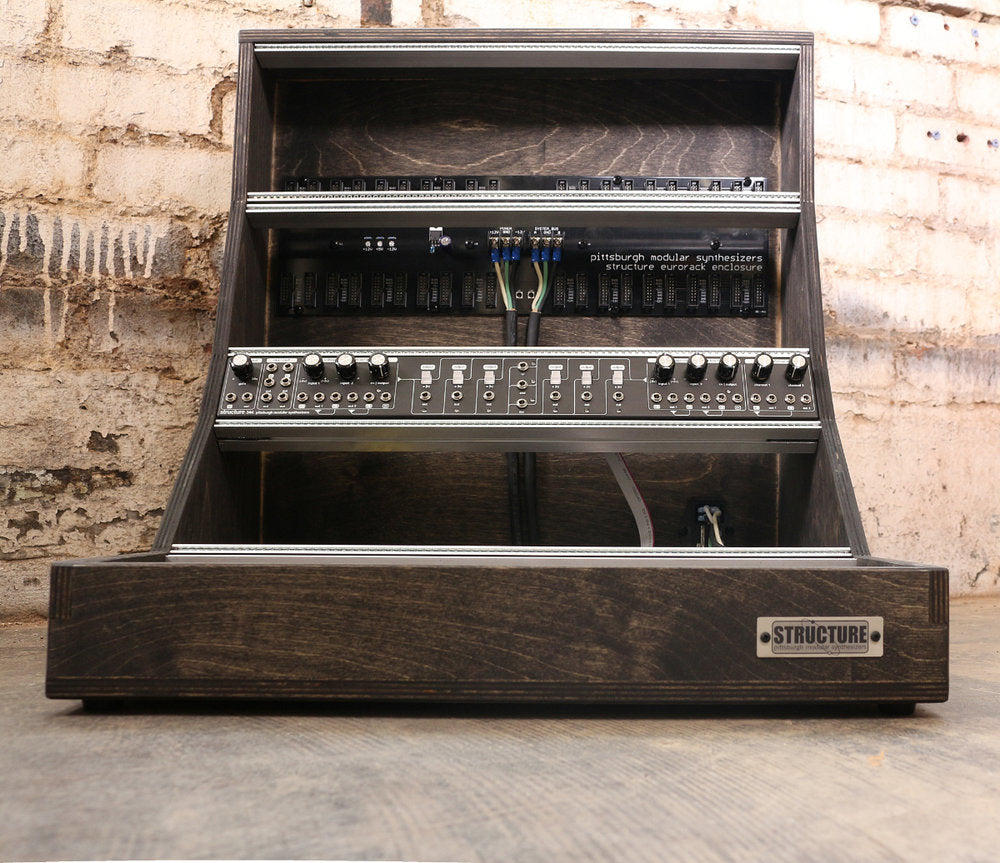

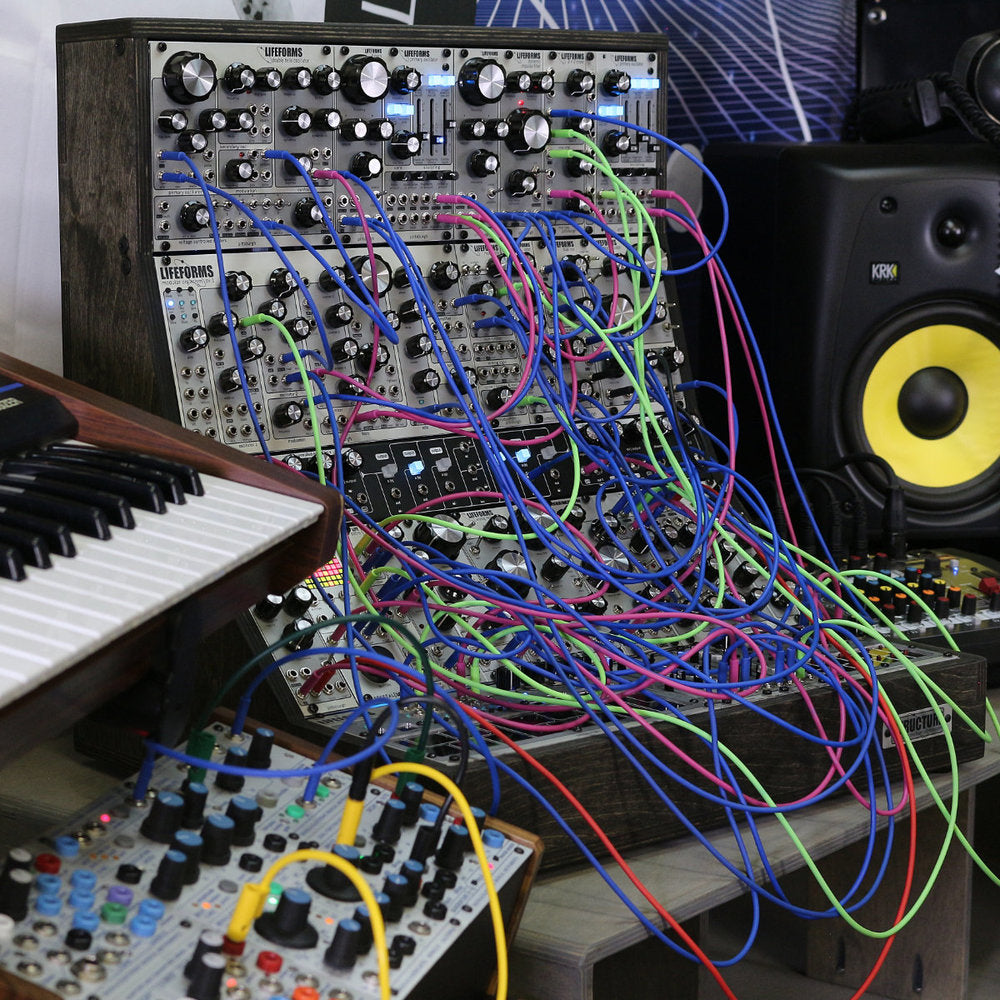

Eurorack Studio Command Center

An inspiring centerpiece to any electronic music studio, the Structure 344 merges a classic form with robust power and deep, integrated synthesis tools. The 4 row, 344 hp desktop eurorack case features a custom Utility Bridge to handle a wide assortment of functions incorporating a preamp, mixer/splitter, dual voltage controlled signal buses, buffered, cascading attenuators, and more.

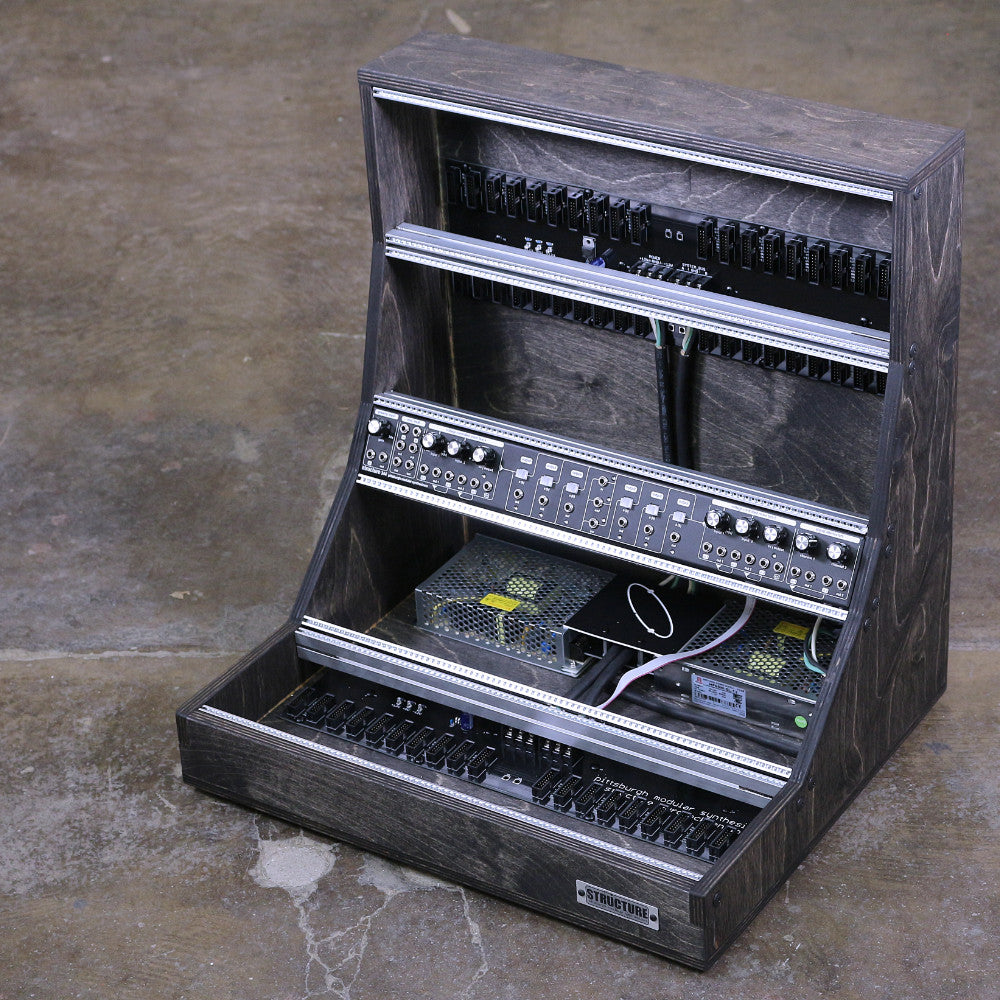

Structure 344 Enclosure

  • Four 86hp Rows
  • 344hp Total Space Available
  • Multi-Functional Integrated Audio and CV Utility Hub
  • Edge to Edge, Through Wall Mounted Rails Reduce Gaps Between Modules and the Side of the Case
  • Full Row Nut Strips
  • Includes 160 Black (Size M3 6mm) Module Mounting Screws
  • Beautifully Hand-Stained Hardwood

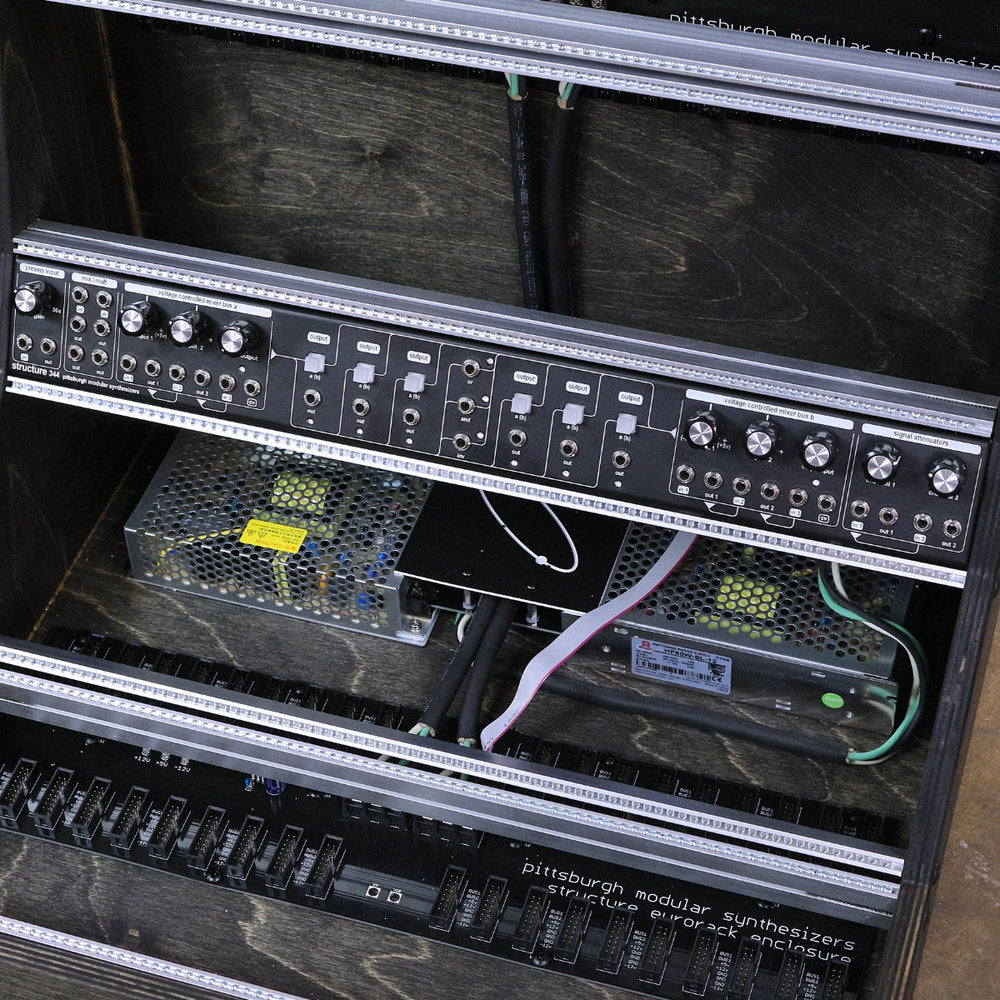

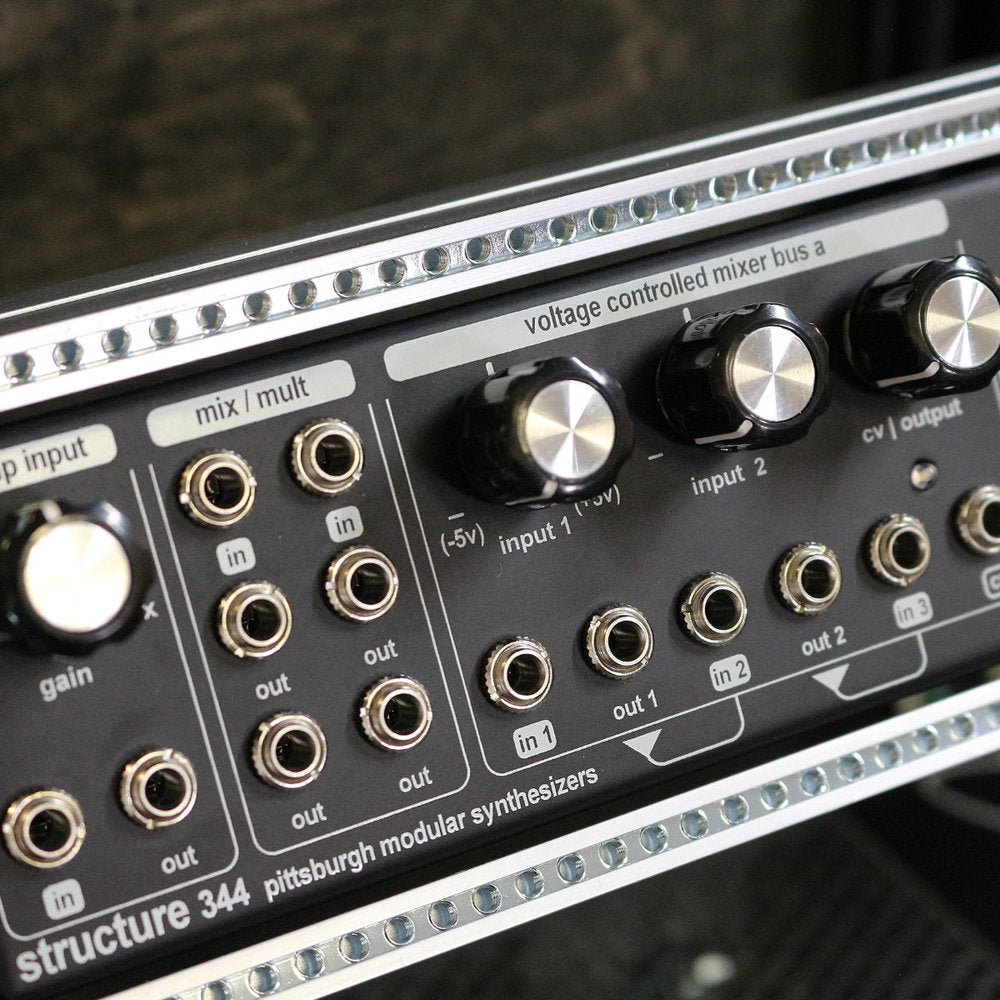

Structure 344 Utility Bridge

  • Soft Clipping Overdriveable Pre-Amp
  • Fully Buffered 2 In - 4 Out Unity Gain Mixer/Splitter
  • Dual Voltage Controlled Bus System with Each Bus Incorporating a 3 Channel Mixer with Offset, Inversion, Breakout Channels and More.
  • 6 Assignable Bus Outputs.
  • Bus Mixers Featuring And (mix) Output, Analog Or Output, And Inverted Mix Output
  • Dual Fully Buffered Cascading Attenuators

Structure 344 Power

  • Up to 5 Amps of Clean, Filtered +12v Power
  • 5 Amps of Clean, Filtered -12v Power
  • Up to 3 Amps of Clean, Filtered +5v Power (see manual for detailed power breakdown)

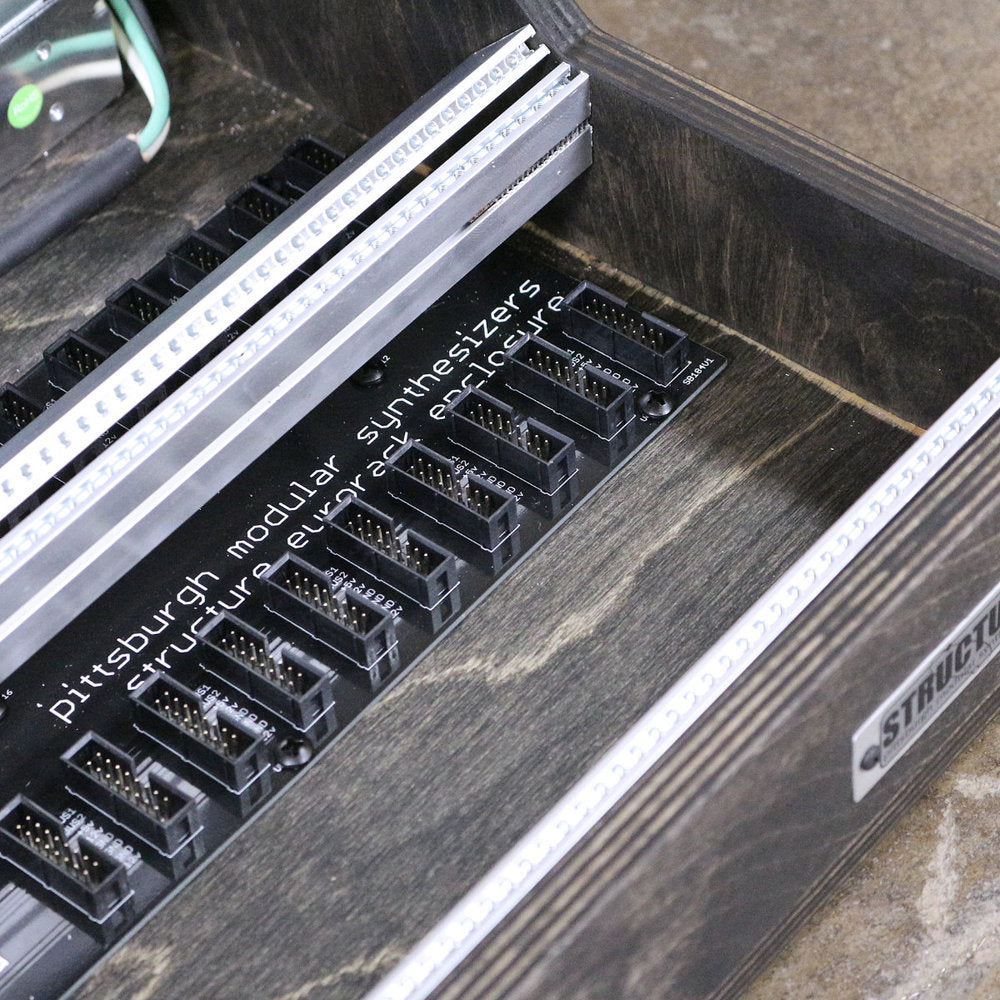

  • 79 Keyed 16 Pin Eurorack Power Headers

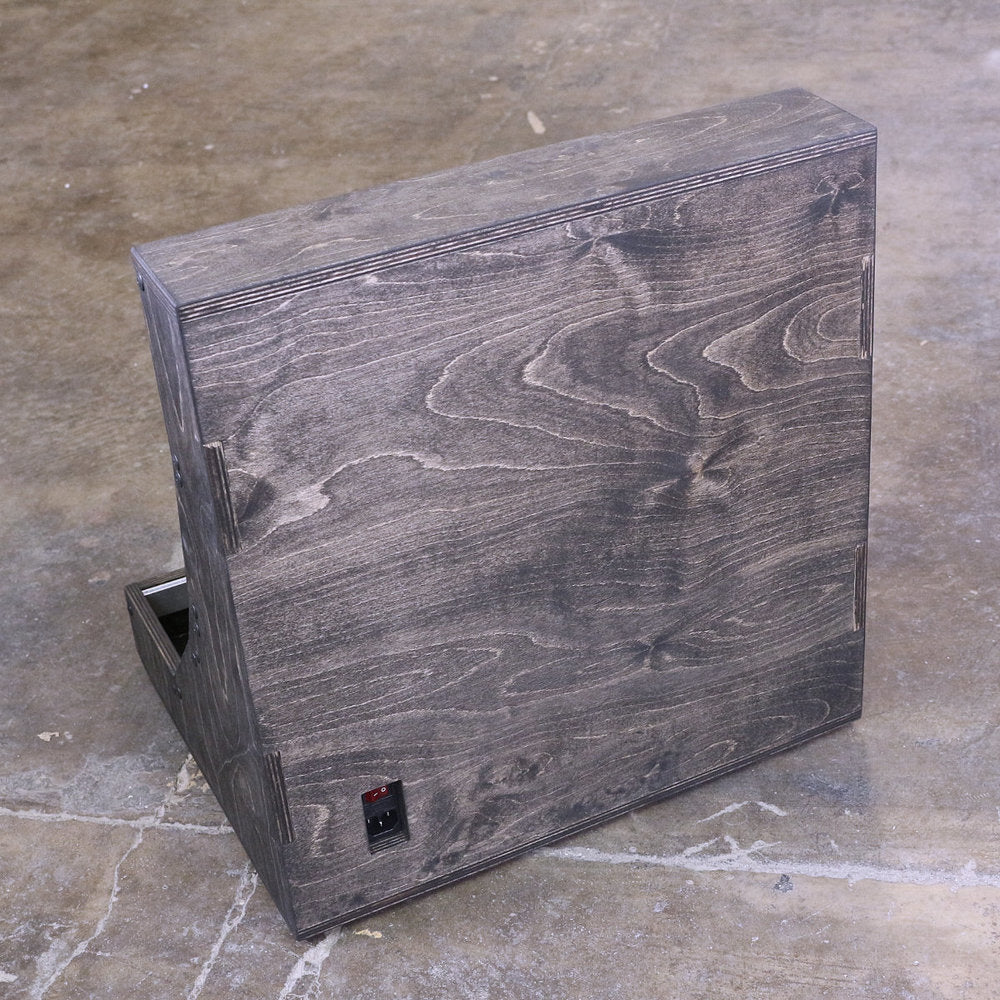

  • Rear Mounted Power Switch with LED
  • Fused Power Protection
  • Universal IEC Power Connector
  • 2 EMI Filters Protect All 3 Power Rails (+12v, +5v, -12v)
  • Low Output Ripple & Noise
  • UL & CE Approved, RoHS Compliant
  • Over Load and Short Circuit Protection
  • Line Regulation (Full Load): ≤0.5%
  • Output Over Load Protection: 10%-150% Hiccup Mode with Auto-Recovery



  • Up to 5 Amps of Clean, Filtered +12v Power

  • 5 Amps of Clean, Filtered -12v Power

  • Up to 3 Amps of Clean, Filtered +5v Power (see manual for detailed power breakdown)

  • 79 Keyed 16 Pin Eurorack Power Headers

  • Rear Mounted Power Switch with LED

  • Fused Power Protection

  • Universal IEC Power Connector

  • 2 EMI Filters Protect All 3 Power Rails (+12v, +5v, -12v)

  • Low Output Ripple & Noise

  • UL & CE Approved, RoHS Compliant

  • Over Load and Short Circuit Protection

  • Line Regulation (Full Load): ≤0.5%

  • Output Over Load Protection: 10%-150% Hiccup Mode with Auto-Recovery



Structure 344 Dimensions

  • External Depth at Top: 4”
  • External Depth at Base: 15.5”
  • External Height: 19”
  • External Width: 18”
  • Maximum Internal Depth for Modules: 4”
  • Empty Weight: 19.5 lbs
