Perfect for composition and live performances
Hermod brings together a powerful step sequencer, a CV looper, a real-time effect processor, LFO generators and a complete bi-directional MIDI-USB-CV input/output interface.
Record a performance at any time thanks to the CV inputs, the USB HOST, the USB DEVICE and the MIDI input. Create and edit your tracks with the STEP mode and its piano roll and automation view. Generate crazy patterns with the randomization tool.
Hermod is polymetric, it means that each track can have a different length, from 1 step to 64 steps. Moreover, you can zoom in to increase the resolution of the step sequencer (up to 512 steps).
Polymorphic tracks
Sequences and Projects
Dynamic effects
MIDI-USB-CV interface
Full connectivity: control Hermod with plug-and-play midi USB devices, midi keyboards, computers or other eurorack CV systems.
Hermod is also a great midi hub, allowing you to sequence midi synthesizers/drum machines and computer's virtual instruments. Of course, Hermod can be perfectly paired with Pyramid or other hardware and software sequencer, in order to benefit from its CV/GATE outputs.
With Hermod's rock-solid clock, this module becomes a great synchronization tool for all your setup! Thanks to its powerful CPU, even when synced/slaved, Hermod allows an ultra-low latency to make the perfect link between the digital world and the analog world.
Core player
● Number of tracks: 8
● Number of sequences: 8
● Number of projects: unlimited
● Number of events (notes, automation) per project: ~80000
● Recording resolution: 24ppqn
● Tempo: 20 to 1000 BPM
Tracks
● Maximum number of notes per step (polyphony): 8
● Maximum number of effects per track: 8
● Note pitch: C0 to B9
● Note velocity: 0 to 127
● Note width: 1/24th to 16 bars
● Track length: 1/4 bar to 16 bars (1 step to 64 steps at zoom x1)
● Zoom: x1 (1 step = 1 quarter notes) to x8 (1 step = 1/32th note)
Inputs
● MIDI (to control Hermod with a MIDI controller)
● USB host (to control Hermod with a computer)
● USB device (to control Hermod with an USB controller)
● 4x CV in [-5V to +5V] (to control Hermod with CV/GATE notes, CV modulation, clock)
Outputs
● MIDI (up to 8 channels)
● USB host
● USB device
● 8x CV out [-5V to +5V]
● 8x GATE out [0V to +5V]

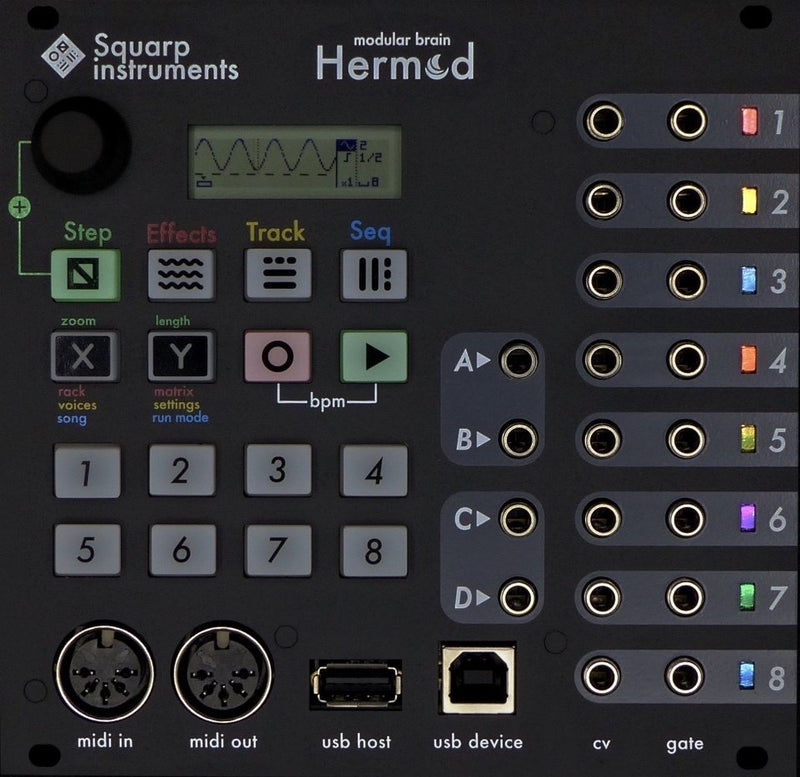

User interface
● 16 backlit silicon button pads
● Menu clickable encoder
● White backlit high contrast LCD screen
● 8x RGB LEDS to display the CV/GATE voltages
● MicroSD card slot to save your projects and upgrade the OS (SD card included)
Other
● CPU: 216MHz ARM Cortex-M7
● DAC resolution: 16-bit
● ADC resolution: 12-bit
● Width: 26HP (up to 30mm in depth)
● Weight: 290 gr (0.64 lbs)
● Requires a ±12V eurorack supply (consume 310mA from the +12V rail and 30mA from the -12V rail)
Hermod is engineered in Paris and assembled in France.
