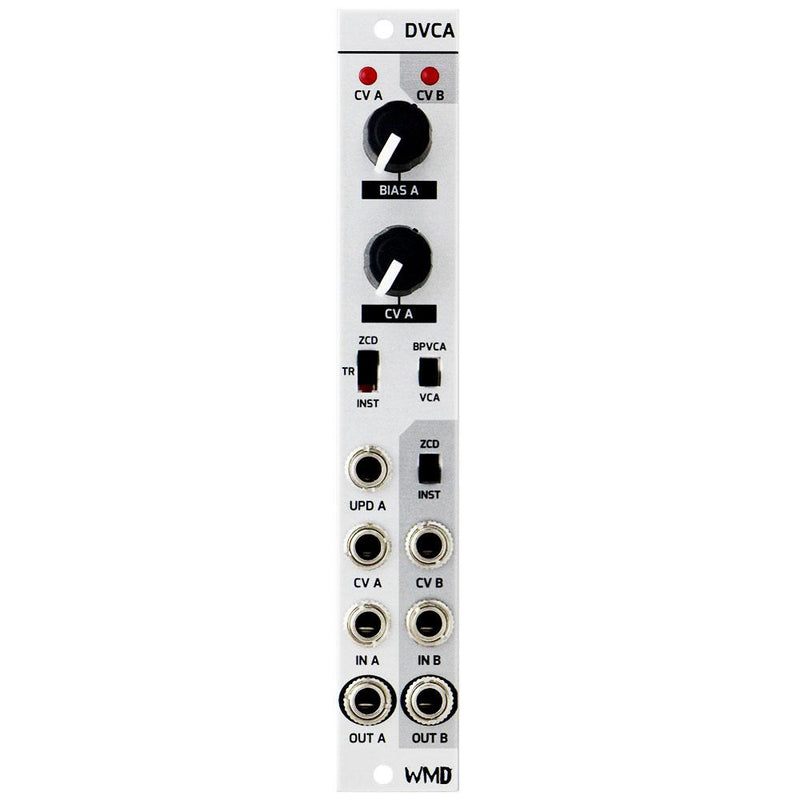

DVCA is a redux of our classic Digital VCA module, giving it more features while reducing its size and power consumption.

Channel A is now unipolar/bipolar switchable, allowing for use as a bipolar VCA.

With control parameters for bias and CV, users can create classic ring modulation and attenuversion effects. Channel B still has the character and features of the Digital VCA.

• Now in 4HP!
• Dual VCA design
• Channel A is a bipolar VCA
• Channel A has bias and CV attenuversion
• Low distortion/noise
• VCA closes completely
• Zero crossing detector
• Gate/trigger detector
• 8 bit CV resolution
• Analog signal path
• Great for ultra fast envelopes

Specs:

• Power: +12V = 72mA; -12V = 45mA
• Size: 4 HP
• Depth: 39mm
• Absolutely No Bleed!
