DOEPFER A-192-1 VOLTAGE TO MIDI INTERFACE CVM16

DOEPFER A-192-1 VOLTAGE TO MIDI INTERFACE CVM16

DOEPFER A-192-1 VOLTAGE TO MIDI INTERFACE CVM16

Regular price $175.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

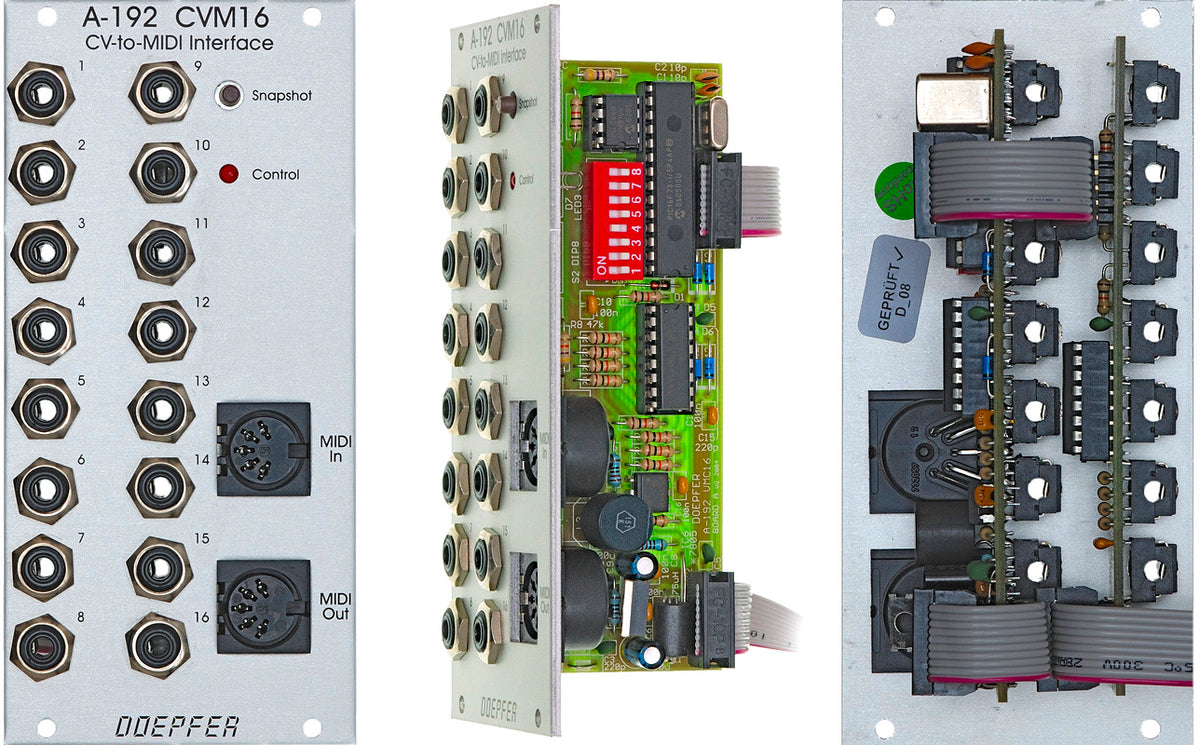

Module A-192-1 is a CV-to-MIDI interface that converts 16 control voltages in the range 0...+5V into 16 MIDI control change messages. A-192 is the modular version of Pocket Control with the 16 rotary controls replaced by 16 miniature jack sockets to process any control voltages instead of the manually generated voltages of Pocket Control.
MIDI messages appearing the MIDI Input are merged to the MIDI controller messages generated by the A-192-1.
128 different assignments (Presets) of the 16 CV inputs to MIDI controller messages are available. Switching between the 128 presets takes place with an 8-pin DIP switch on the pc board (permanently) or via incoming MIDI program change messages (temporarily).
If none of the 128 factory presets is suitable new presets can be made with the Pocket Control editor which is available for free on our web site.
The snapshot button transmits the 16 momentary states of the 16 inputs as MIDI controller messages.

For more detailed information please look at the English user's guide: A192_man.pdf

Typical applications:

  • Theremin-to-MIDI (A-178 + A-192-1)

  • Light-to-MIDI (A-179 + A-192-1)

  • Sequencer-to-MIDI (A-155 + A-192-1), only for Midi control change, for Midi note messages see¬†A-192-2¬†

  • Envelope-to-MIDI (A-119 + A-192-1)

  • Random-to-MIDI (A-118 + A-192-1)

  • MIDI interface for Vocoder (A-129-1 -> A-192-1 /¬†MTV16¬†-> A-129-2)


Remark: The A-192 has been renamed to A-192-1 to distinguish it better from other modules of the A-192-x series (e.g. A-192-2)

Breite/Width: 12 TE / 12 HP / 60.6 mm
Tiefe/Depth: 45 mm (gemessen ab der R√ľckseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 40 mA
