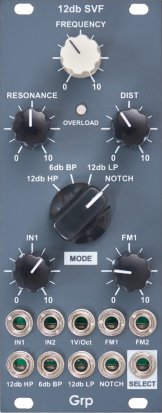

The 12 dB SVF is a smooth sounding state variable filter with individual outputs for -12 dB high-pass, -6 dB band-pass, -12 dB low-pass and -6 dB notch characteristic. A fifth output can be switched between the filter types mentioned. On the input side, there are two sockets, one with level control. A 1 v / octave input allows you to create key tracking patches. For cutoff modulations, there are two FM inputs. – One with attenuator. On top of all that, there is a distortion circuit built-in.

http://www.grpsynthesizer.it/index.php/it/prodotti-it/eurorack-grp-it/eurorack-grp-12db-svf-it.html

• 40 mA +12V
• 22 mA -12V
• 0 mA 5V
