MST 4 CHANNEL AUDIO - CV MIXER

MST 4 CHANNEL AUDIO - CV MIXER

MST 4 CHANNEL AUDIO - CV MIXER

Regular price $119.99
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

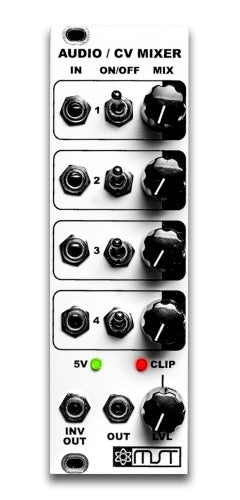

The MST Audio/CV 4-Channel Mixer is a mixer and/or attenuator with mute switches per channel – A must for the performing modular artist!

Features:

1 on/off (mute) switch per channel

Jumper select ~unity gain or ~2x gain amplification

Attenuator per channel

Master output attenuator

Normal-  in-phase output  & Inverted, reverse-phase output

Green +5V LED indicates “Optimal” level output

Red “Clip” LED indicates ~8V to rail

Specifications:

Current draw: V+ max 13.25mA, V- max 7.35mA

Width: 8HP, Depth: 3.5 cm (1.88 in)
