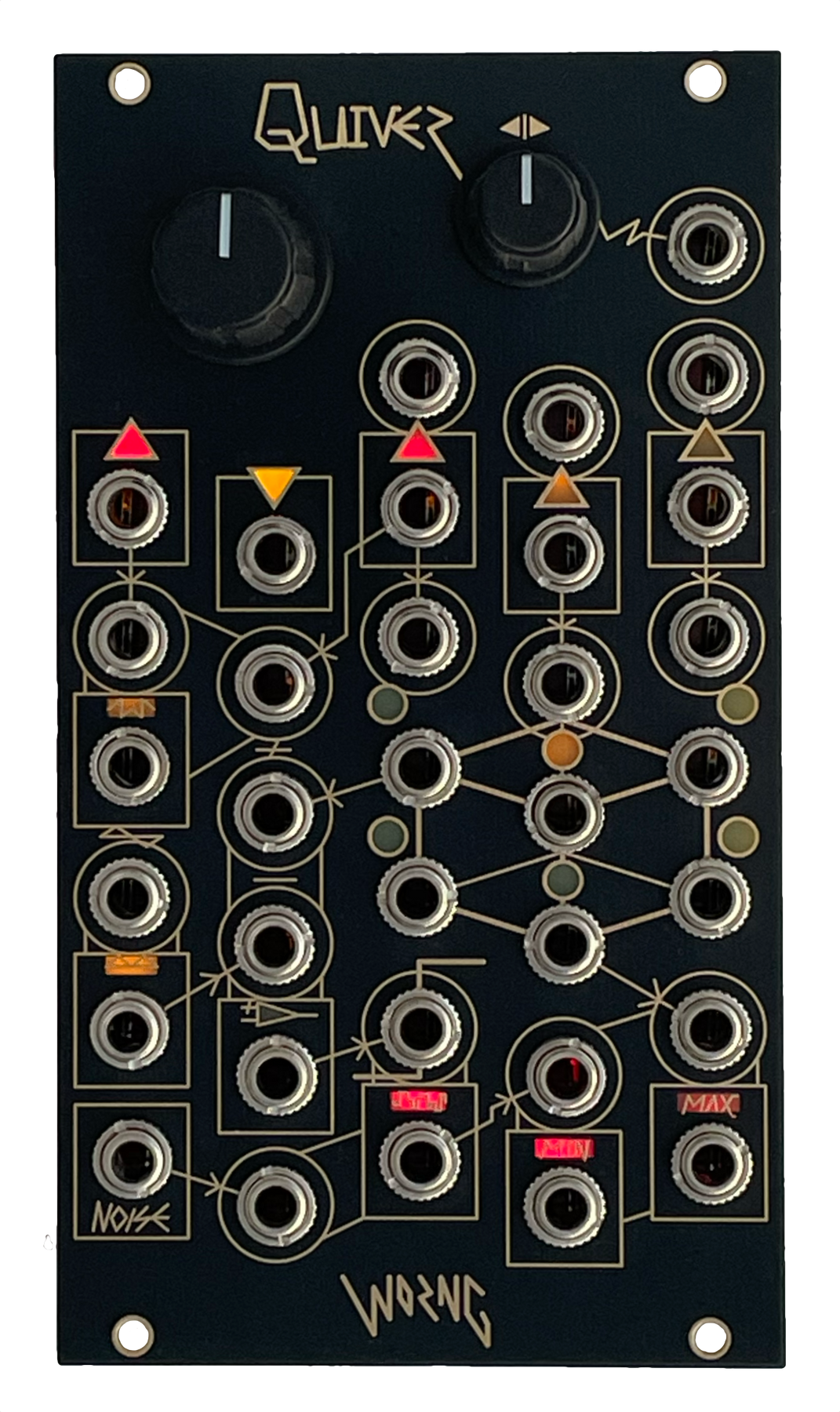

Quiver from WORNG Electronics is a 100% analogue patch-programmable modulation powerhouse. Quiver’s 16 input, 18 output interface contains:

- Four triangle core LFOs with macro control, individual CV control, and cross modulation

- Analogue wave folder/saw phase shifter

- Full wave rectifier

- Analogue noise source

- Voltage comparator

- Sample and Hold

- Analogue Min/Max

- A three input, six output Modulation Cube based on the acclaimed Vector Space circuitry

When left unpatched the different processors flow from one to the next with cleverly designed normalling, giving 18 modulation sources to use throughout your system. Unlike many modulation modules, each section has voltage inputs which can be patched individually, exponentially increasing the power of your modular system by processing any other voltage sources you have available. Each output has an LED to clearly indicate the voltage, meaning you’re never in the dark about what your modulation is doing.

Quiver is the perfect quiver of essential modulation basics to get your modular system started, or to add a high quality, fully patchable, modulation workstation to your existing system.

When designing Quiver we asked the question “What collection of CV processors can greatly expand the capacity of every modular system?” and then carefully chose normalled connections and added four analogue LFOs to drive them. The result is like a mini modular system in itself, creating complex evolving modulation that never repeats, but is able to be quickly reconfigured with a patch cable or two.

Tech Specs:

Width: 14hp

Depth: 39mm including power cable

Current draw:

+12V 75mA

-12V 75mA

+5V 0mA
