ALM BUSY CIRCUITS FMco 'COMPACT FM SYNTH VOICE' : PRE-ORDER

ALM BUSY CIRCUITS FMco &

ALM BUSY CIRCUITS FMco 'COMPACT FM SYNTH VOICE' : PRE-ORDER

Regular price $319.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock
Shipping calculated at checkout.

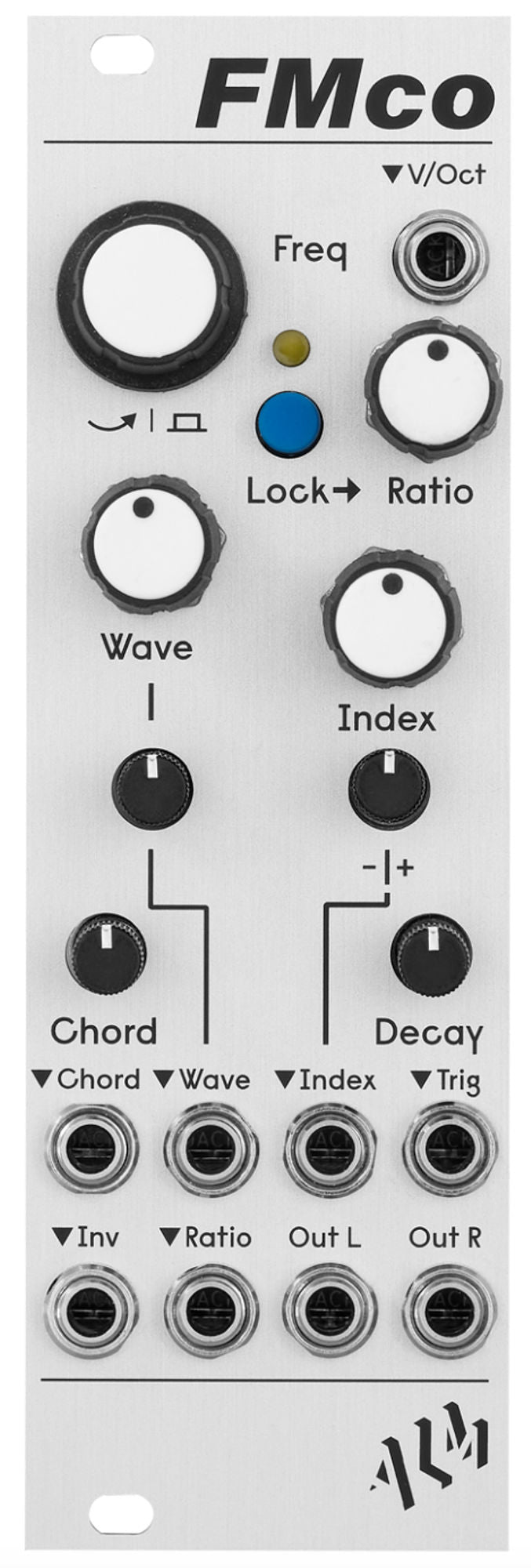

Compact FM Synth Voice

The FMco is a compact FM synthesis based VCO and voice. It features our own original 2- operator FM synthesis DSP implementation inspired by our ‘Akemie’ modules but tuned for more immediate use and a more modern sound.

It includes both manual and voltage control over FM Index, Ratio and a selection of classic operator waveforms for a wide pallete of FM sounds from a simple set of controls.

A built-in decay envelope is routed to both FM depth and output level, allowing the FMco to function as a full synth voice when triggered.

The FMco also includes CV-controlled four-voice chords, an encoder-based tuning system for easy accurate pitch control, and a stereo-widened output, delivering a large amount of FM synthesis all in just 8HP.

FEATURE LIST

2 Operator FM synthesizer voice with direct and voltage controlled parameters.       → 8 Operator wave shapes with direct and CV control with attenuator.
FM Index offset with direct and CV control with attenuverter.
Ratio control with lock switch for both free and precise operator ratios.                     Trigger input for simple built in decay envelope internally connected to Index level and output VCA level.

Easy, quick, and accurate tuning via an encoder control.
Direct and voltage controllable chord mode with inversion and up to 4 voices.           Left and Right outputs with stereo widening effect.
USB-C for quick and easy ‘drag and drop’ firmware updates.
Skiff friendly with reverse power protection.
2 Year Warranty
Made in England.

TECHNICAL SPECIFICATIONS

Supply: +12V 65mA / -12V 25mA                                                                                     → Size: 8HP
Depth: 32mm
