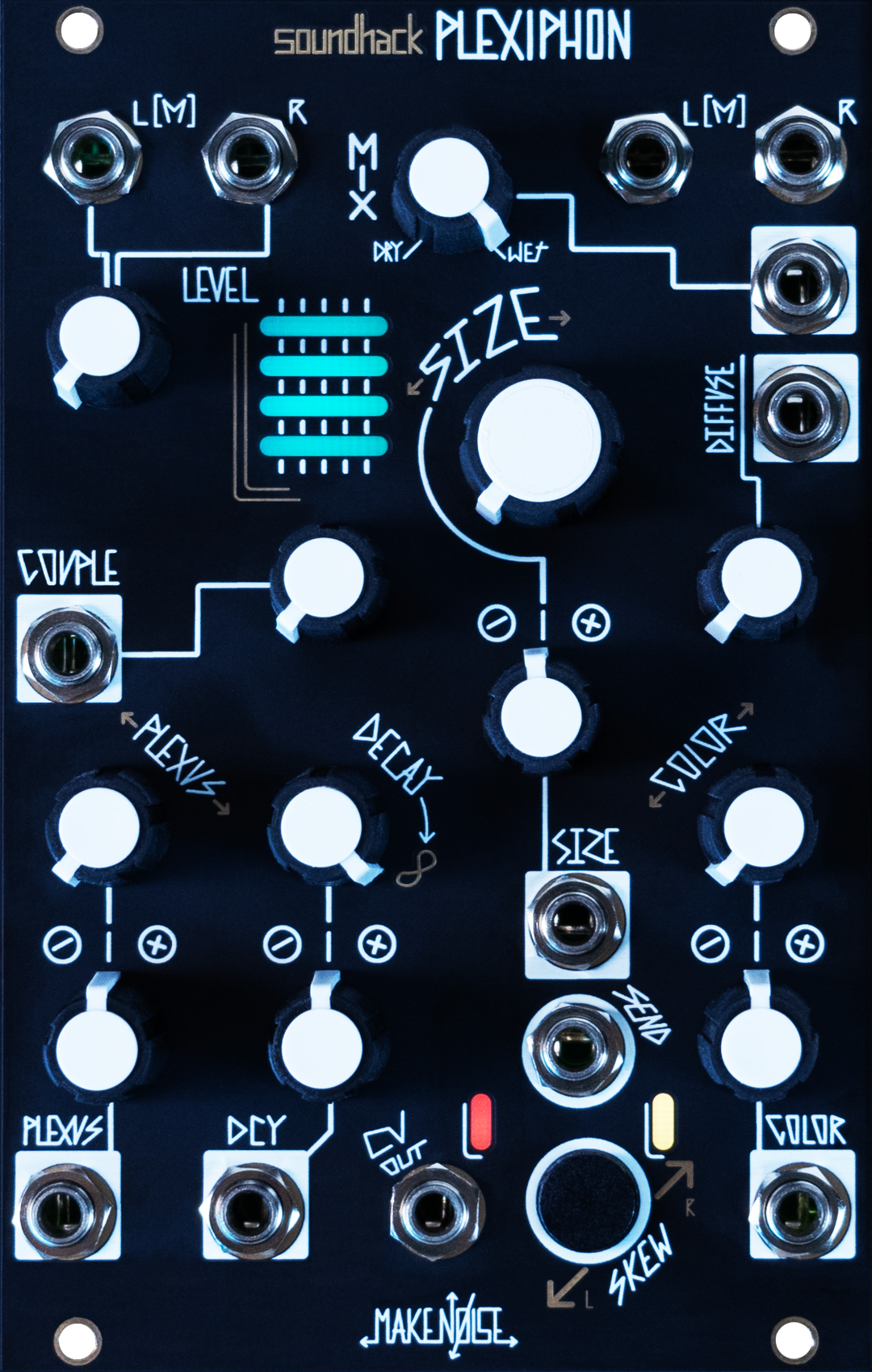

The Make Noise Soundhack Plexiphon is a stereo, modeless spatial texturizer which allows for continuously morphing between reverberations and multi-tap echoes, the widest range of possible results being neither reverb nor echo, and all results highlighting and amplifying character previously hidden in the source material being processed.
The Plexus control simultaneously modulates the number of feedback paths in the algorithm, and their entanglement together. The Size of the paths determines the temporal relation between them, operating like a “delay time,” or a “room size,” at either extreme of Plexus.
Diffuse and Color offer softening/sharpening/darkening/brightening effects over time.
Couple and Skew are stereo operations: Couple determines to what degree the left and right sides are isolated or intermingled (from “dual mono” to fully interlaced stereo), while Skew offers simultaneous inverse or tandem control of the left and right paths on the Plexus, Size, and Color parameters.
The Send gate input (normalled high, or patchable) determines whether and when the input signal will be fed into the Plexus.
An envelope follower is provided at the CV output for re-integration of the Plexus into its own controls or elsewhere in the voltage controlled system.
Plexiphon is built from entirely new code by Tom Erbe, specifically for Make Noise’s newest digital hardware.
-
Modeless Plexus operation allows instant voltage controlled access to all possible combinations of settings, no mode switching or algorithmic isolationism
-
Stereo in, stereo out with mono sum normalizations for inputs and/or outputs
-
Smooth modulation of space, time and intensity via Size and Decay
-
Voltage control over stereo image with Couple
-
Shape texture timbre with Diffusion and Color parameters
-
Easy patching of dub echo techniques with Send gate
-
CV Out completes the conversation between Plexiphon and the rest of your system!
-
Pairs well with EVERYTHING
Width: 16hp
Max Depth (incl. power cable): 34mm
Power:
240mA @ +12V
5mA @ -12V
