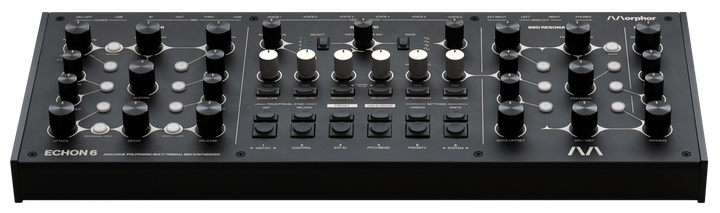

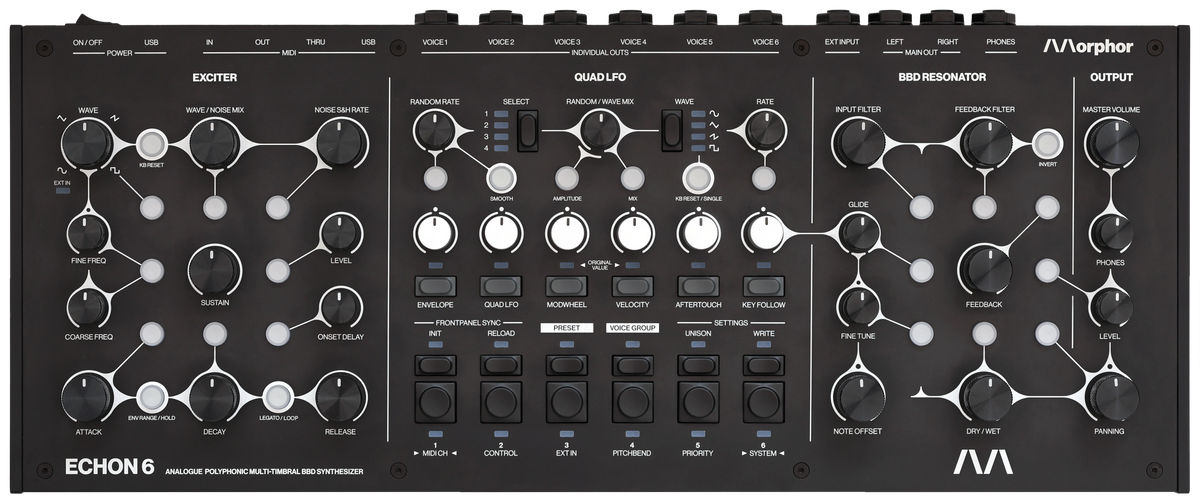

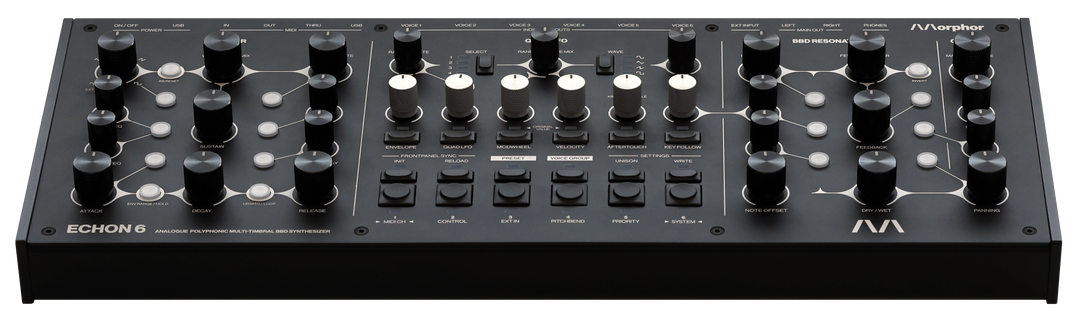

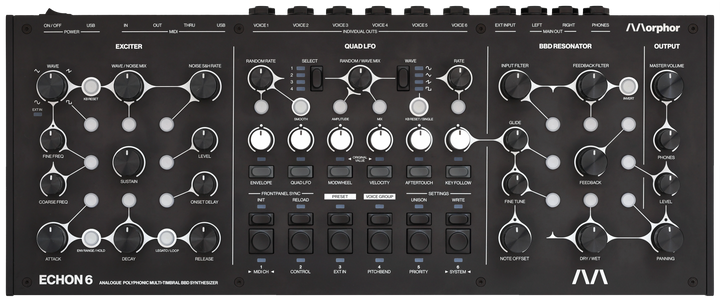

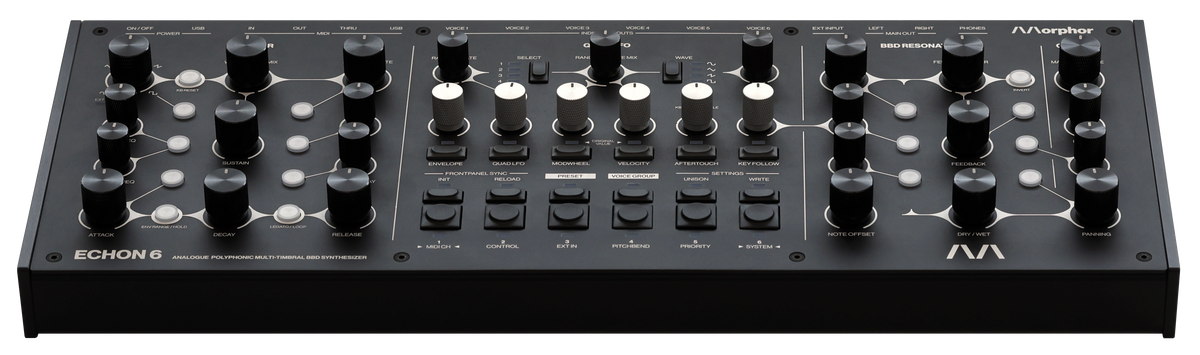

6 Voice Analogue Polyphonic Multi-Timbral BBD Synthesizer
World’s first polyphonic synthesizer based around analogue BBD resonators
Each of its six voices features a discrete BBD delay-line resonator that tracks the keyboard producing organic overtones and complex harmonic depth. Allowing you to excite these resonators in creative ways, Morphor ECHON 6 will generate anything from plucked and bowed strings over leads and basses to big pads and evolving soundscapes. With comprehensive multi-timbral capabilities, a 9×32 modulation matrix and a full analogue signal path, ECHON 6 unites experimental sound design with classic polyphony.
Exciting exciter
ECHON 6’s exciter section combines fully analogue VCO waveforms with or without external audio, noise sources from continuous analogue white to sample-and-hold shaped by a loopable ADSR envelope with adjustable onset delay. This allows anything from sharp percussive transients to slowly emerging harmonic swells. The nature of the morphing sound controls and the wide range of quantised noise enable complex timbral sculpting even before the sound hits any filters.
Designed for natural resonance
The output of each exciter is fed into its resonator. Each resonator consists of a pitched delay-feedback network with analogue low-pass filters in both input and feedback paths, enabling dynamic control over tone, texture, and decay. The fine feedback control, polarity selection, panning, and wet/dry mix make every voice a living acoustic space within the stereo field.
Monster modulation matrix
The 9 × 32 modulation matrix links the envelope, LFOs, modwheel, velocity, polyphonic aftertouch, and key tracking to virtually any destination parameter. Global modulation attenuverters offer precise control over depth and polarity. Modulation depth is easily assigned by holding a modulation source key and adjusting the target parameter. Dedicated buttons allow you to mute, invert, or set modulation to maximum depth instantly. This innovative approach off on-the-fly assignments and direct interaction with your patch enables full modularity and stimulates exploration.
Built for studio and stage
Its voice grouping and unison modes push ECHON 6 beyond the traditional polyphonic configuration into layered, multi-timbral and personally optimised setups. With its six independent stereo voice outputs, full MIDI control, and a rugged aluminum enclosure ready for tabletop, 19″ rack, or VESA mounting, ECHON 6 is built for both stage and studio. It is a fully tactile instrument — no display, no distractions — inviting musicians to play, perform, and explore sound through pure hands-on control.
- Feedback system with full analogue audio path
- 6-part multi-timbral architecture
- 6× Full analogue BBD resonators
- 6× True analogue VCO exciters
- 6× Quad LFO + Random generators per voice (24 in total)
- Custom voice grouping (up to 6 groups)
- Comprehensive unison control
- Extensive modulation matrix (9 sources × 32 destination parameters)
- Global modulation attenuverters
- 216 user presets (6 × 6 × 6 structure)

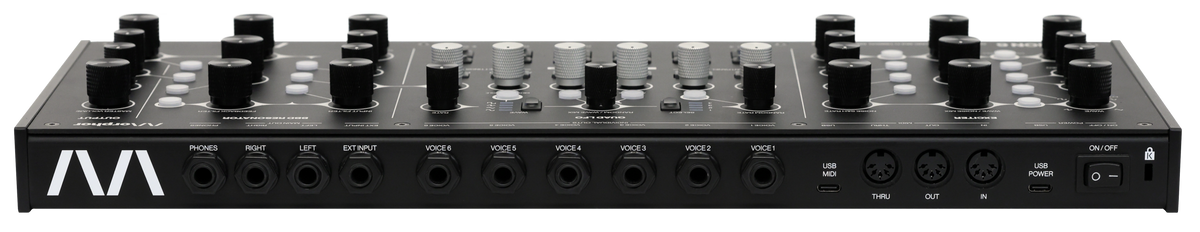

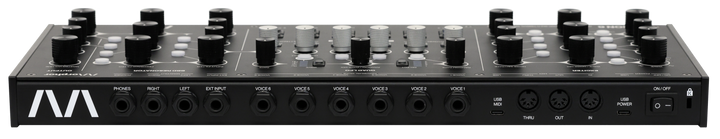

- 1× 1/4″ jack external input (mono)
- 2× 1/4″ jack balanced main outputs (L/R)
- 6× 1/4″ jack voice outputs (stereo)
- 1× 1/4″ jack headphone output (stereo) (independent level, pre-master monitoring)
- MIDI DIN In/Out/Thru ports
- MIDI USB-C (class-compliant device, no bus power)
- MIDI fully-remote controllable
- MIDI SysEx support
- Firmware update via USB-C
- 19″ rack-mountable (black aluminum rack ears included)
- VESA-mount compatible
- Kensington security slot
- No display — 100% tactile operation
