Studio mastermind interface
AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.
Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.
A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be molded to suit your audio setup, your workflow, and your sound.
A standalone mixer
For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.
Intricate audio routing
Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick ‘connect anything and everything’ configuration.
Quantity, meet quality
Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.
Choose your workflow
Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.
It’s time your music had an upgrade
- x16 ADAT I/O
- x8 Analog Line DC coupled Outputs
- x16 Analog Line Inputs
- x1 MIDI In & 2x MIDI Out/Thru
- Wordclock I/O
- 24-bit AD/DA 192kHz
- Creative FX Bundle Included
Premium FX included
Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from our award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

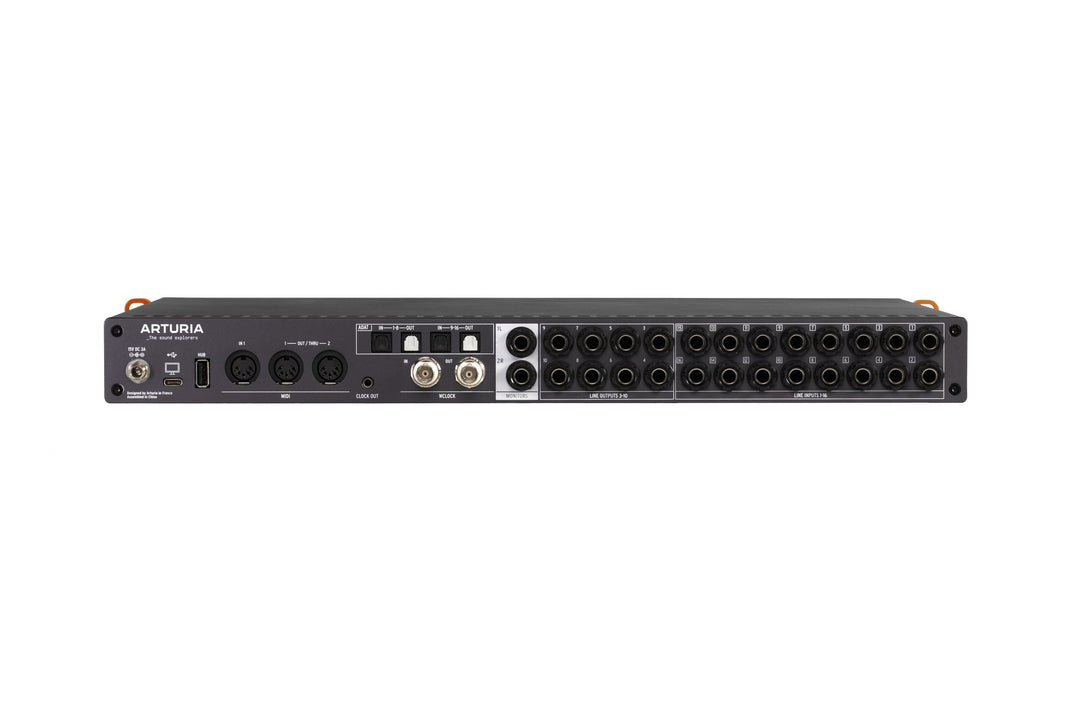

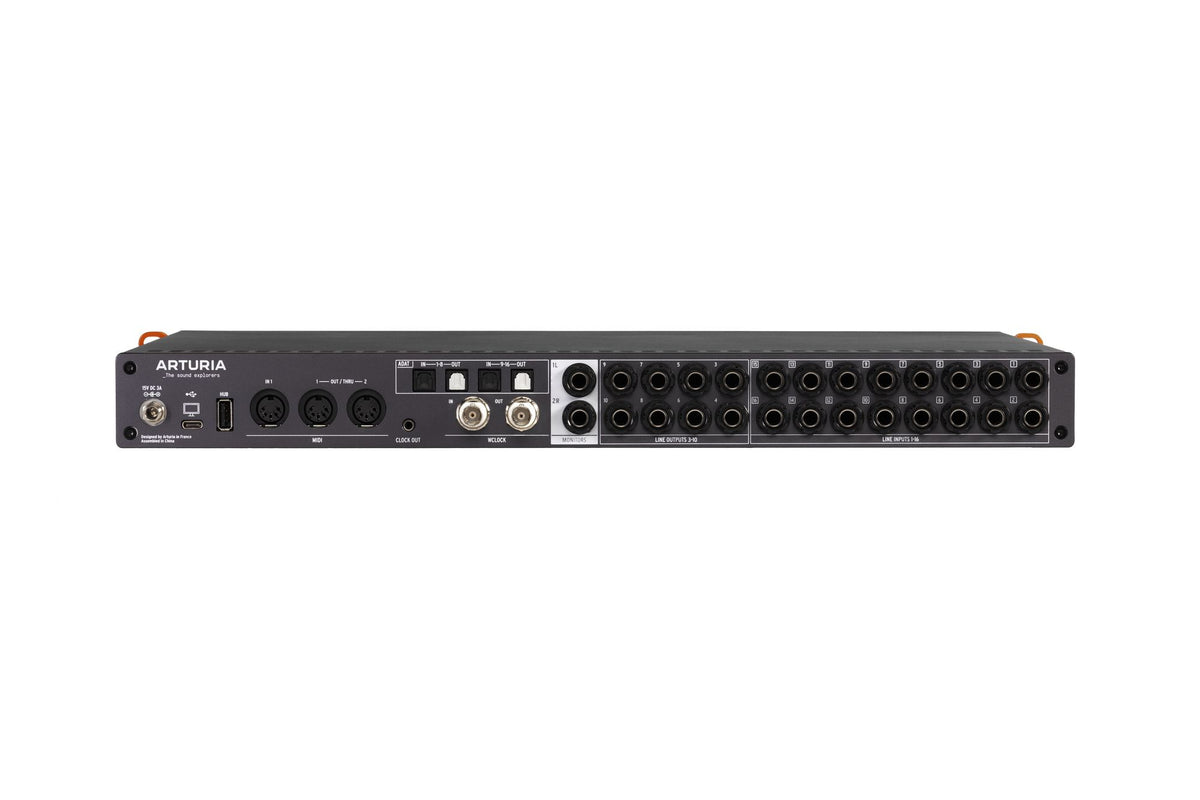

16 x TRS analog inputs
- Includes 2 x high-quality digitally-controlled preamps
- Inputs 3 & 4 also available as 3.5mm stereo input
12 x analog outputs
- Includes 8 x DC-coupled TRS line outputs
- Stereo monitor outputs
- 6.35mm front-panel outputs for reamping, dual-headphones
2 x ADAT in, 2 x ADAT out
- Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz
Wordclock in & out
1 x MIDI in, 2 x MIDI out/thru
- 5-pin DIN connectors
- Route MIDI standalone
Low-latency USB-C connection
- Class-compliant MIDI
- 3 x USB hub connections
Two internal standalone mixers
- No computer connection needed
- Cue mixer for sub-mixing and added flexibility
- Main mixer controllable by MIDI

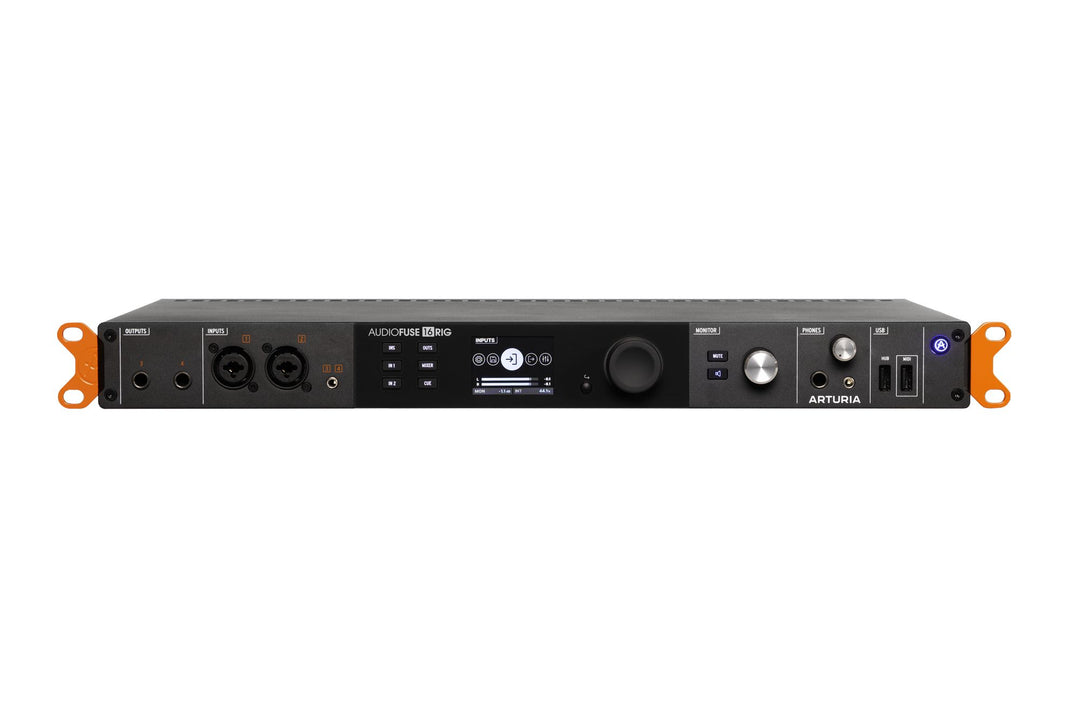

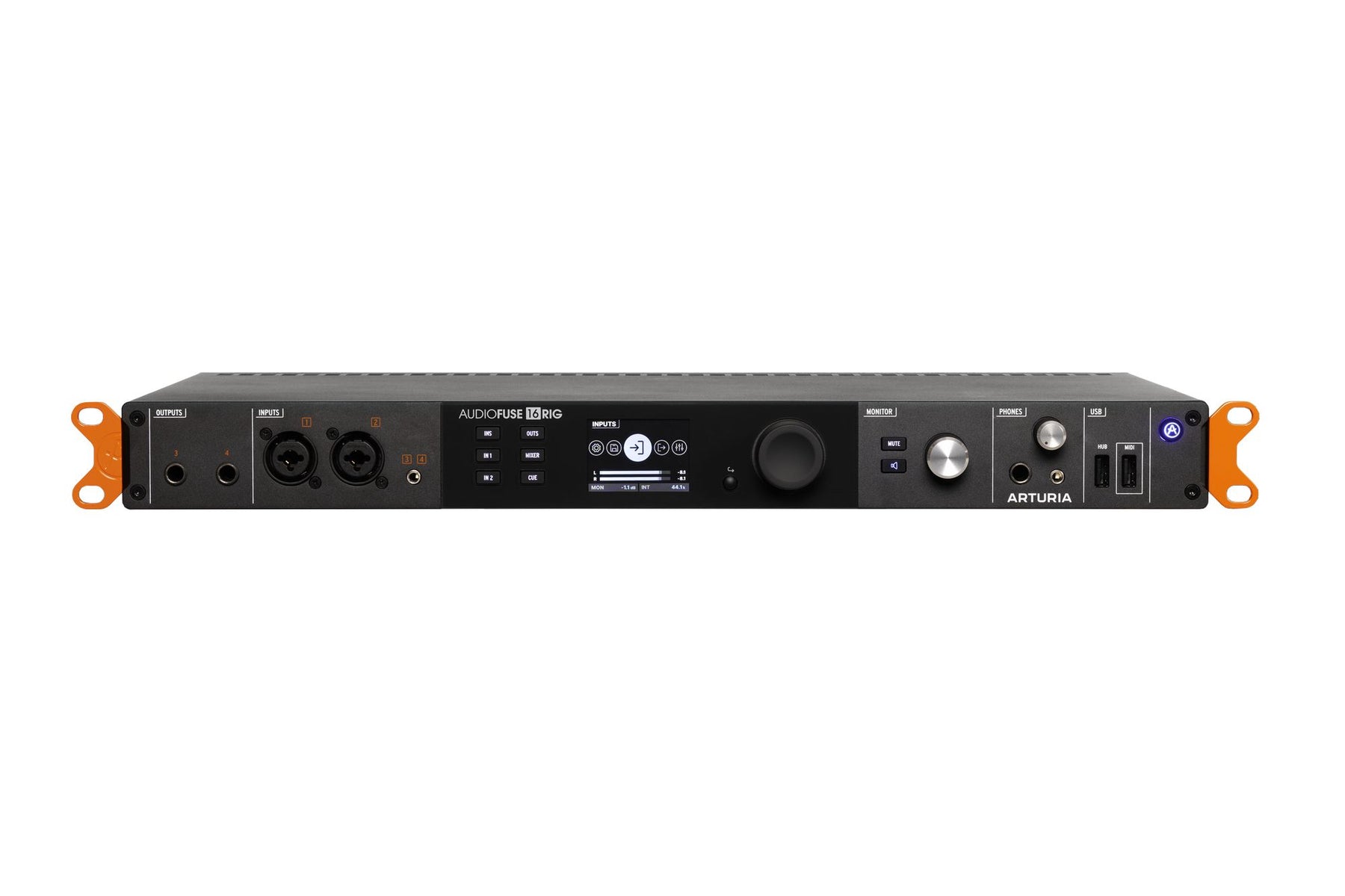

Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite
- Analog Lab Intro
- Comp DIODE-609* NEW
- Pre 1973
- Pre V76
- Pre TridA
- Filter MINI
- Chorus JUN-6
- Comp FET-76
- Delay TAPE-201
- Rev PLATE-140
- Phaser BI-TRON
What's in the box
- AudioFuse 16Rig unit
- Power supply
- 2x USB cable
- size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)
