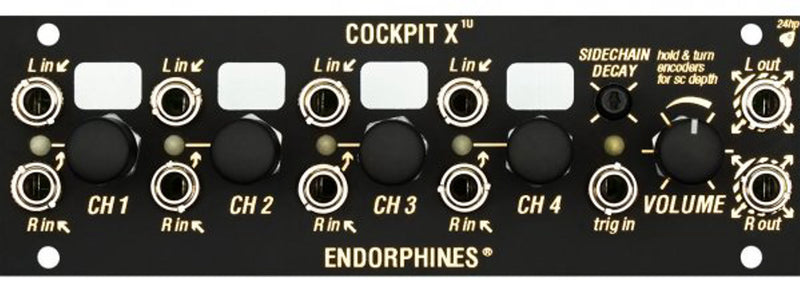

Introducing redesigned crystal clear sounding mixer

• 6 channel stereo mixer with crystal transparent VCAs:
• 4 stereo channels via separate left and right jacks and
• 2 stereo inputs via AUX/MIXUP inputs – for daisy chaining, routing external audio etc.
• 100% analog signal path with smart digital control
• Simple side-chain ducking – apply the kick drum trigger, push and turn the encoder to adjust the ducking level – easy to use without the manual
• Left input channels are pre-patched into the right inputs for easy mixing both mono and stereo, as well as line and modular level sources.
• Dedicated balanced and MIXUP outputs compatible with Intellijel Audio Jacks V2 Boards / cases with outputs/inputs to 1/4" jacks
• Encoder ‘faders’ – remember the mute/ducking states and sound levels, leave system patched and don’t worry about anything
• Limited with the channels? Add another Cockpit X into the daisy chain or use two internal AUX pre-final volume fader inputs.
• L/R inputs compatible with Airplane adapter to accommodate 3.5mm TRS sources if needed

POWER CONSUMPTION:

• 55 mA +12V

• 35 mA -12V

• 0 mA 5V

DIMENSIONS:

• 24 HP (1U)

• 30 mm deep (fits all Intellijel Palette cases etc).
