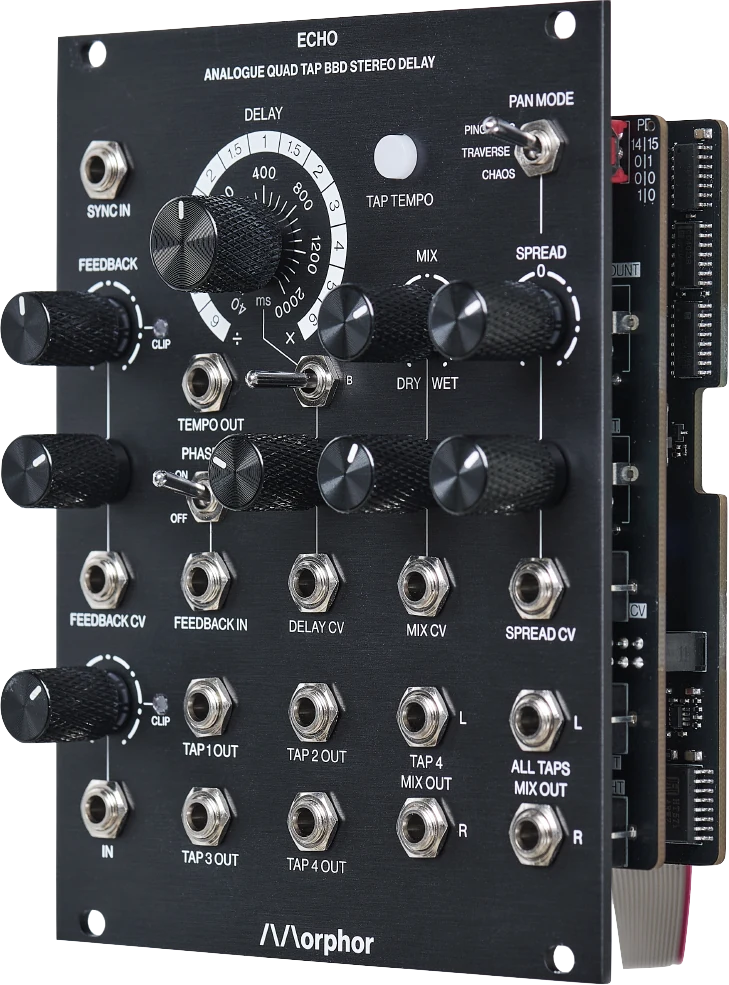

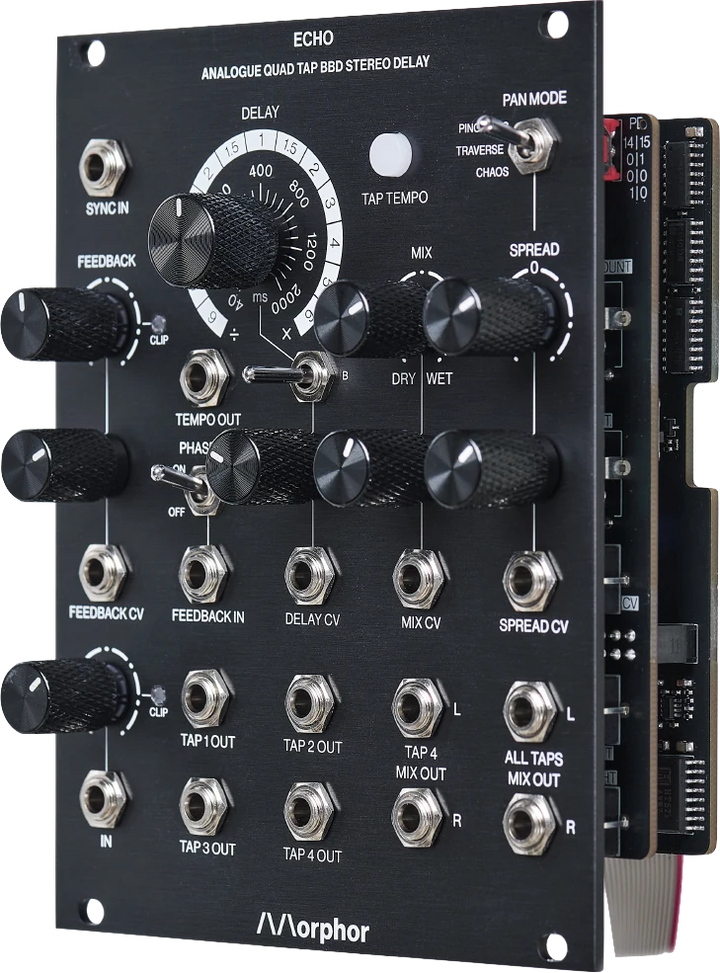

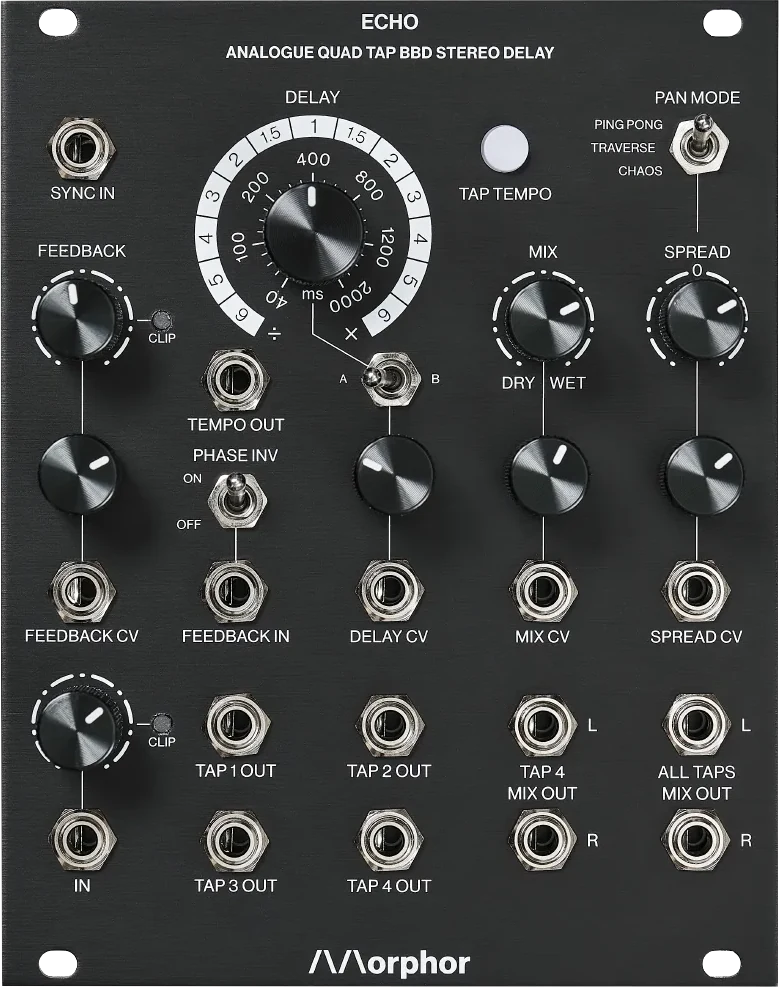

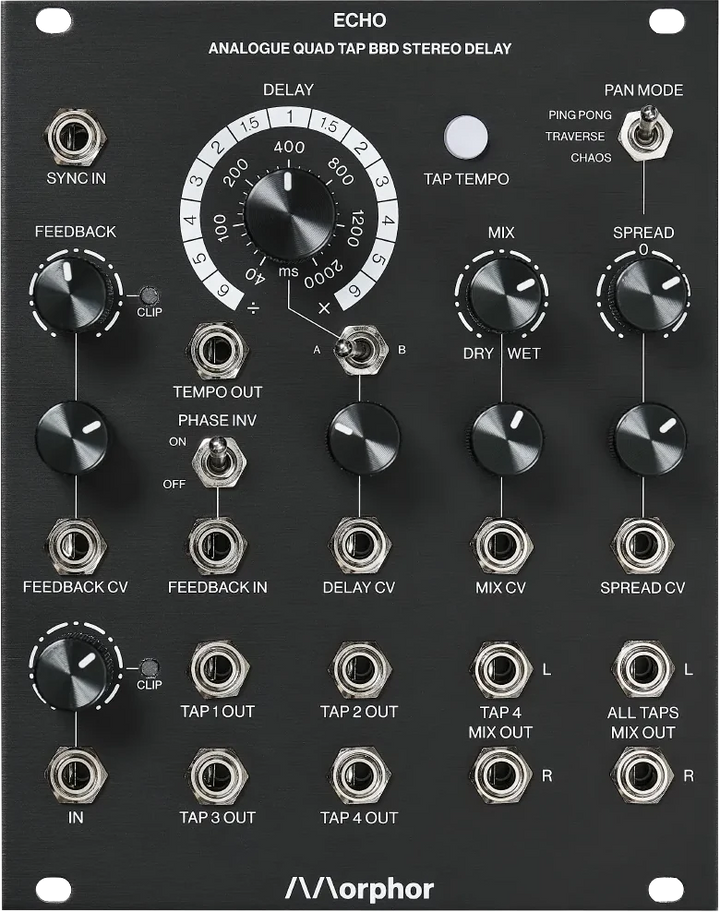

MORPHOR ECHO QUAD TAP BBD STEREO DELAY

The Morphor Echo merges the lush, classic warmth of analog sound with modern, flexible control options, delivering a versatile stereo delay module for Eurorack. Taking up 20 HP in your rack, this syncable delay with 100% analogue audio path, features four 4096-stage Bucket Brigade Devices (BBDs) with individual tap outputs and a mix output, creating complex, rich, and textured delay effects with a delay range from 10 ms to 2040 ms. The Echo offers three distinct panning modes—Ping-Pong, Traverse, and Chaos—each with adjustable spread for stereo imaging.

The module supports inverted feedback and offers an external feedback input for additional routing options. Delay time is controlled through a tap tempo button, CV input, or clock sync input, with both quantized and continuous adjustments available. Additional features include CV control for dry/wet mix, feedback, and spread, a phase inversion toggle, tempo output, and a clock sync input that accepts both 1 and 24 PPQN. Whether you need rhythmic precision or organic, evolving delays, the Morphor Echo is designed to meet the demands of creative sound design.

Features

• 100% analog audio path

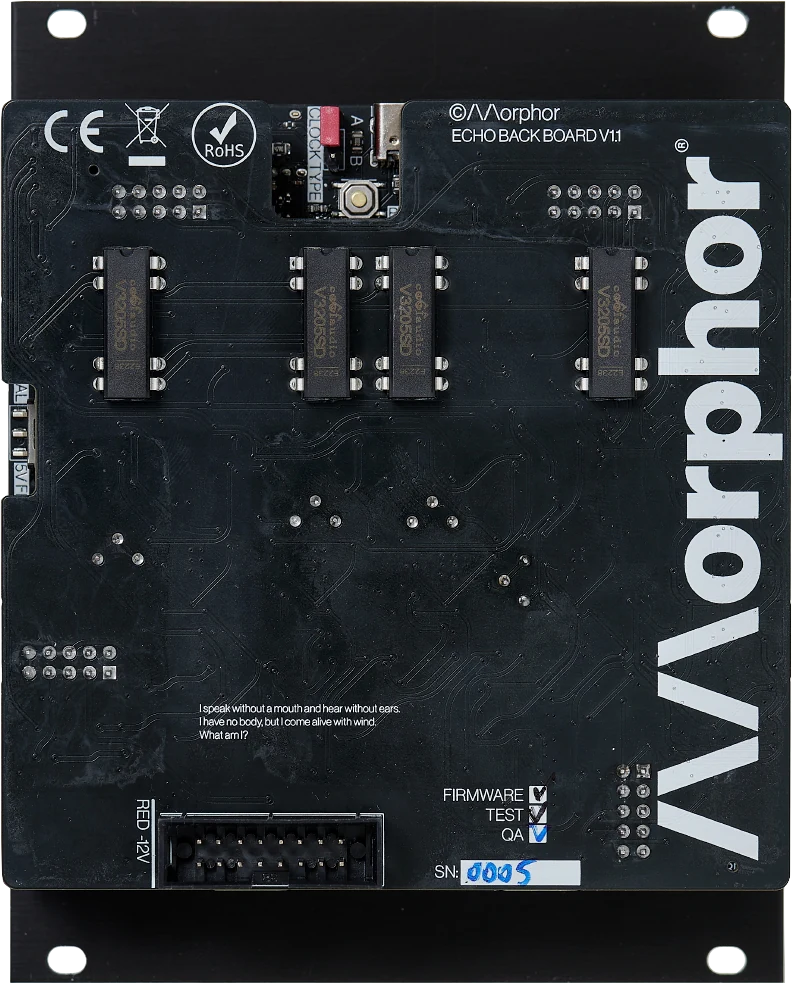

• 4x 4096 stage BBDs
• Delay time range 10-2040 ms
• Stereo output (tap 4/dry mix)
• All taps mix stereo output (tap 1 + 2 +3 + 4 / dry mix)
• 4 individual mono tap outputs
• Dry/wet CV
• Feedback CV
• Phase invert option
• External feedback input
• 3 stereo panning modes
• Spread CV
• Clock sync input (1 or 24 ppqn)
• Quantized or continuous CV
• Tap tempo button with RGB LED
• Multiplied/divided tempo output
• All CV jacks have attenuators
• Option usage internal/external 5V supply

Specifications
