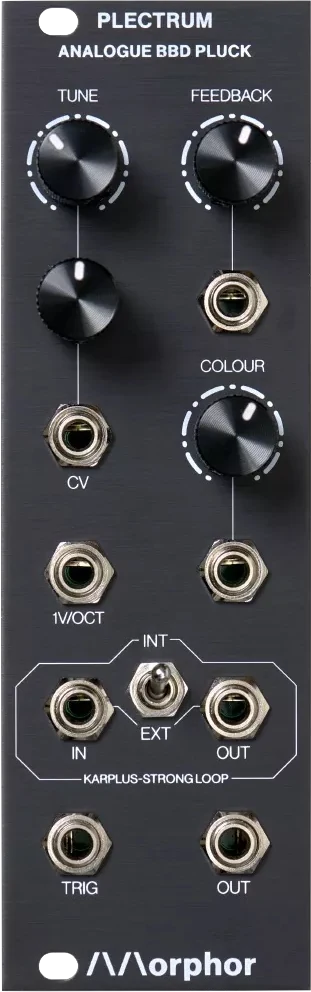

MORPHOR PLECTRUM ANALOG BBD PLUCK

The Morphor Plectrum - Analogue BBD Pluck is the successor of our successful AP-1 module. Now only 8 HP instead of 10 HP with additional CV-able feedback!

Plectrum is a high quality, fully analogue Eurorack module that can produce plucked string-like sounds. It is a compact all-in-one solution for generating amazing bass, acoustic guitar, percussion and other amazing sounds.

The module is based on the Karplus-Strong principle with a true analog audio path built with an authentic bucket brigade delay (BBD) circuit which is recognizable by its specific timbre. By using carefully chosen high quality components, this module has a rich, warm analogue sound.

Now being only 8 HP in width, you won't need a lot of space to get going and start creating some incredible sounds. If you're looking to fully sculpt the string-like sound, you can extend the internal Karplus-Strong loop by breaking out the signal and adding external modules like filters and/or FX modules to it.

Features

• 100% analog
• Karplus-Strong principle
• Built with classic BBD chip
• Break-out BBD loop
• Internal/external loop switch
• Trigger input
• 1 V/oct input
• Tune knob
• Pitch modulation CV input
• Feedback CV input
• Colour CV input (i.e. internal loop LPF cut-off frequency)
• Mono output

Specifications
