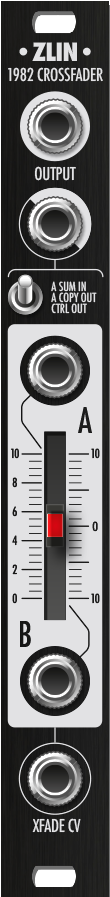

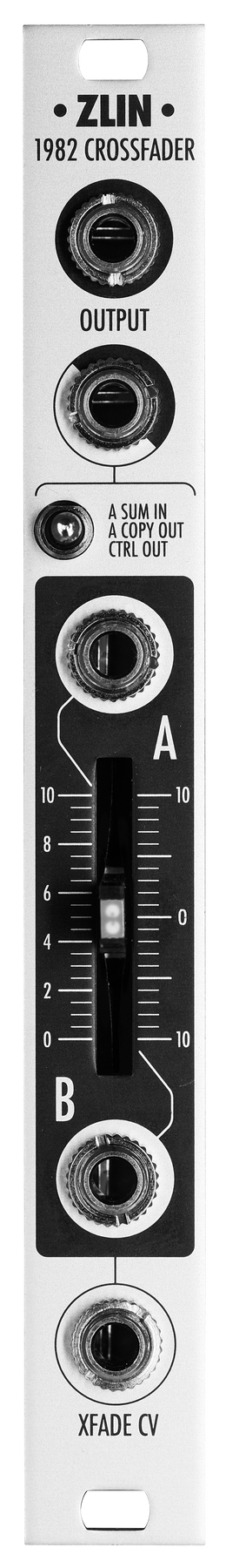

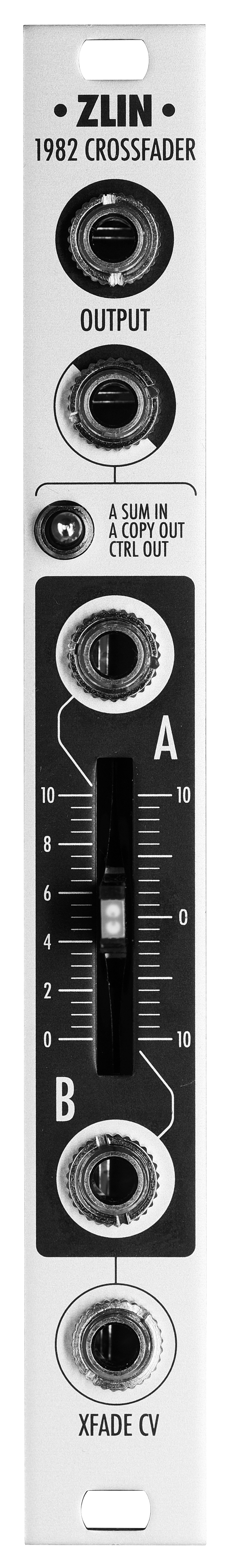

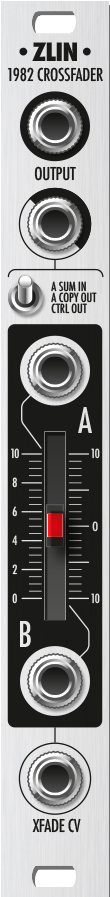

Please welcome a new member of the Xaoc Devices Eurorack modules family. Zlin [zlin] is a small utility module (only 3HP!) that can act as an audio signal and CV cross-fader, a linear VCA with drone control, a ducking VCA, or a feedback controller. It is a tool perfect for any modular environment - a missing piece of the puzzle greatly enhancing the creative potential of any system. Use it to construct unusual waveforms, simulate classic subtractive-style dynamic timbre shaping without the need for any filters, or simply morph between rich signals.

As Zlin is DC-coupled and built around a modern high-quality dual VCA chip, it delivers a wide dynamic range with low noise and distortion. A slider potentiometer with an illuminated LED provides visual feedback of the module’s state. An auxiliary jack with three selectable functions adds further flexibility for creative patching.

Main features:
- width 3HP
- depth 32mm (including cable bracket)
- +25mA/-15mA
- voltage and manually controlled cross-fader
- linear, DC-coupled VCA with drone and duck functions
- feedback controller
- visual indication of mix ratio
- AUX jack for patching tricks
