ZOOM ERL-6 EURORACK MOUNT ADAPTER
Made for the LiveTrak L6 / L6max + Eurorack

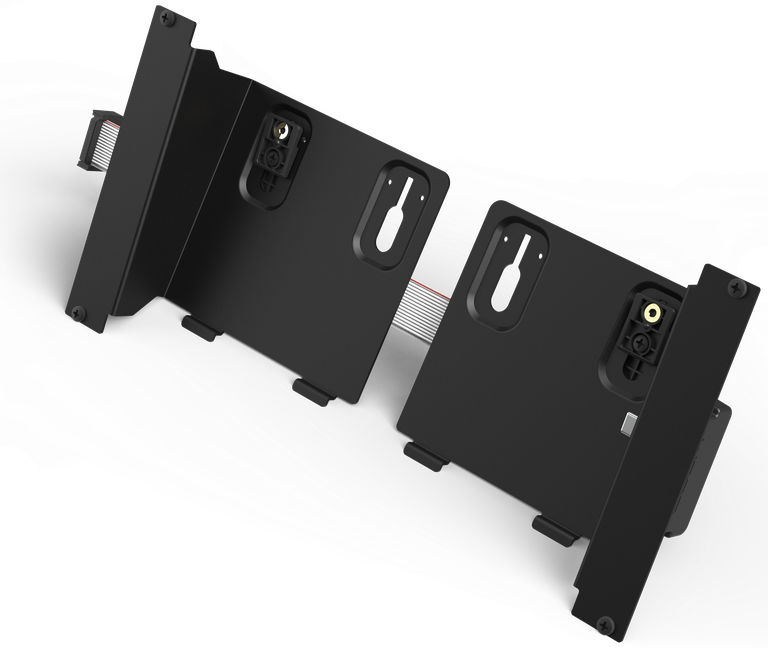

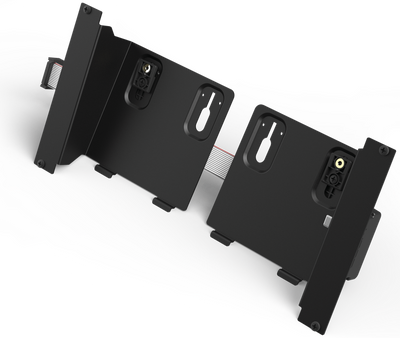

Mount the LiveTrak L6 / L6max into a Eurorack with the ERL-6 rack mount adapter. It comes with 2 rack ears to fit the L6 / L6max into a 54HP* space. The included power adapter converts +12V power from the Eurorack case to +5.6V, compatible with the LiveTrak L6 / L6max.

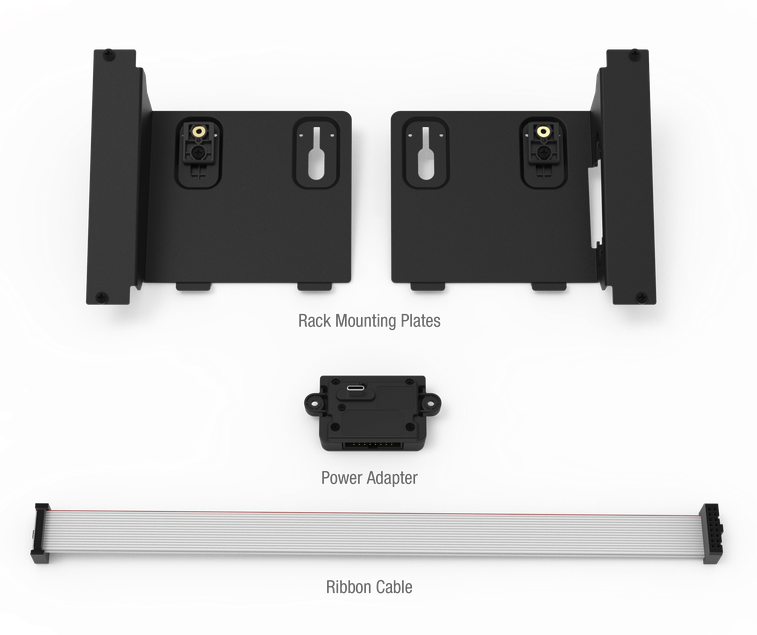

What’s Included
- Rack Mounting Plates
- Power Adapter (Converts +12V to +5.6V)
- Ribbon Cable (300 mm)
- Screws x 8
Specs
| Rack mounting plates | Dimensions | 126.8 mm (W) × 128.5 mm (D) × 44 mm (H) |
|---|---|---|
| Weight | 147 g (left), 137 g (right) | |
| Ribbon cable | Length | 300 mm |
| Weight: | 13 g | |
| Power adapter | Dimensions | 65 mm (W) × 34 mm (D) × 26.6 mm (H) |
| Weight | 22 g | |
| Rated input | +12 V / 1.6 A | |
| Rated output | +5.6 V / 2.5 A | |
| Screws | ８pcs | |
| Compatible with | LiveTrak L6, LiveTrak L6max |
