1010 MUSIC MIDI ADAPTER CABLE

1010 MUSIC MIDI ADAPTER CABLE

1010 MUSIC MIDI ADAPTER CABLE

Regular price $4.95
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

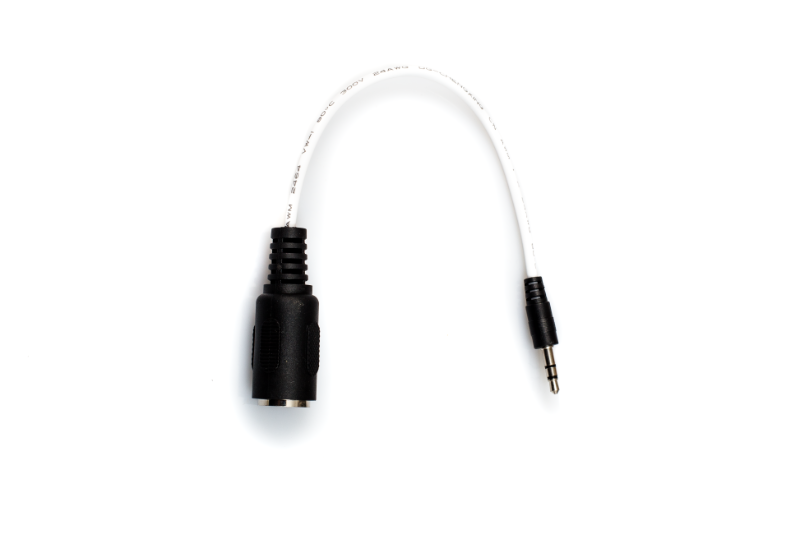

This MIDI Adapter enables you to connect MIDI devices that use standard MIDI cables to the stereo minijacks used by 1010music products.  The adapter has a male stereo minijack at one end, and a female 5 pin DIN MIDI connector on the other, and is 22 cm/8.5″ long.  It is also useful as a converter for connecting to other MIDI devices that use a different mapping of MIDI signals to the stereo minijacks.

The MIDI device industry has not standardized on a common method for mapping MIDI signals to stereo minijacks. In the absence of a standard, 1010music has chosen to use a mapping that is commonly available. The diagram to the right shows the numbering of the pins on a MIDI connector and the labels of the connection components of a stereo minijack. The MX4 and other 1010music products are compatible with cables that use the following mapping of MIDI signals between female MIDI connectors and stereo minijacks:

MIDI Signal MIDI Connector Stereo Minijack
Current Source Pin 4 Tip
Current Sink Pin 5 Ring
Shield Pin 2 Sleeve

For more information about the use of stereo minijacks for MIDI connections and compatibility with other products, please read the Mini TRS Audio Jacks for MIDI for Connections Compatibility Guide.
