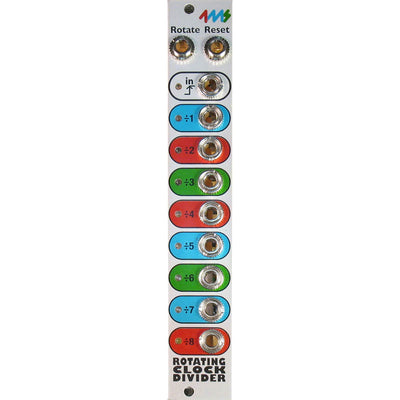

4MS RCD ROTATING CLOCK DIVIDER v2

4MS RCD ROTATING CLOCK DIVIDER v2
4MS RCD ROTATING CLOCK DIVIDER v2

4MS RCD ROTATING CLOCK DIVIDER v2

Regular price $179.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

  • 4 H.P. Eurorack format
  • Divide-by-1 to Divide-by-64, on 8 output jacks
  • CV Rotate jack to shift divide-by amount on each jack
  • CV Reset jack to reset/re-sync all jacks
  • Optional break-out panels to expand functionality (MIDI, Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)

Jacks

  • Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
  • CV Rotate (0V to +5V input)
  • CV Reset (5V to 15V trigger)
  • Divided Clock Outputs (8 jacks):
    • Divide-by-(1+R)
    • Divide-by-(2+R)
    • Divide-by-(3+R)
    • Divide-by-(4+R)
    • Divide-by-(5+R)
    • Divide-by-(6+R)
    • Divide-by-(7+R)
    • Divide-by-(8+R)
    ...where R is the CV Rotation.
  • Selectable Gate/Trigger mode:
  • Selectable Divide range up to Divide-by-64:
    Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
  • Selectable Auto-reset:
    Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

Rotating Clock Divider - CV Rotate

Rotating Clock Divider - Autoreset

Rotating Clock Divider - Reset
