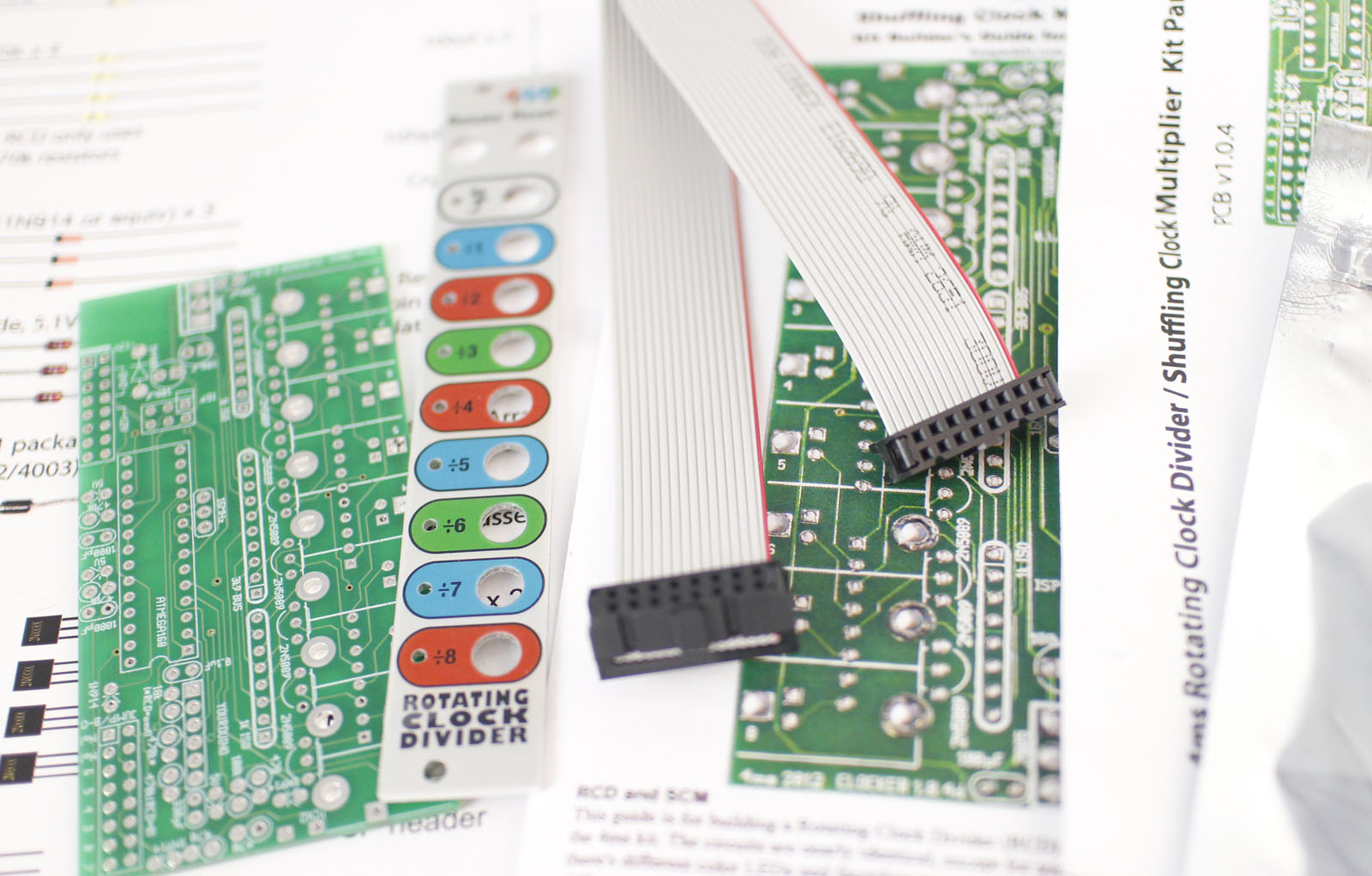

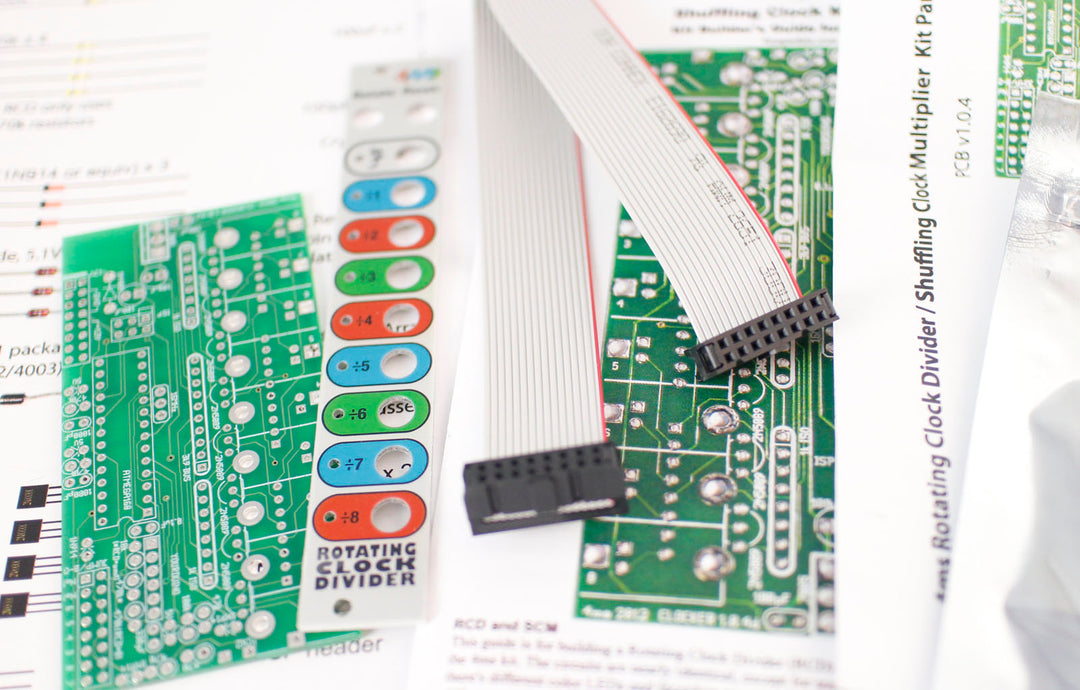

4MS RCD ROTATING CLOCK DIVIDER v2 DIY KIT

4MS RCD ROTATING CLOCK DIVIDER v2 DIY KIT
4MS RCD ROTATING CLOCK DIVIDER v2 DIY KIT

4MS RCD ROTATING CLOCK DIVIDER v2 DIY KIT

Regular price $95.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

  • 4 H.P. Eurorack format
  • Divide-by-1 to Divide-by-64, on 8 output jacks
  • CV Rotate jack to shift divide-by amount on each jack
  • CV Reset jack to reset/re-sync all jacks
  • Optional break-out panels to expand functionality (MIDI, Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)

Jacks

  • Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
  • CV Rotate (0V to +5V input)
  • CV Reset (5V to 15V trigger)
  • Divided Clock Outputs (8 jacks):
    • Divide-by-(1+R)
    • Divide-by-(2+R)
    • Divide-by-(3+R)
    • Divide-by-(4+R)
    • Divide-by-(5+R)
    • Divide-by-(6+R)
    • Divide-by-(7+R)
    • Divide-by-(8+R)
    ...where R is the CV Rotation.
  • Selectable Gate/Trigger mode:
  • Selectable Divide range up to Divide-by-64:
    Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
  • Selectable Auto-reset:
    Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

Rotating Clock Divider - CV Rotate

Rotating Clock Divider - Autoreset

Rotating Clock Divider - Reset
