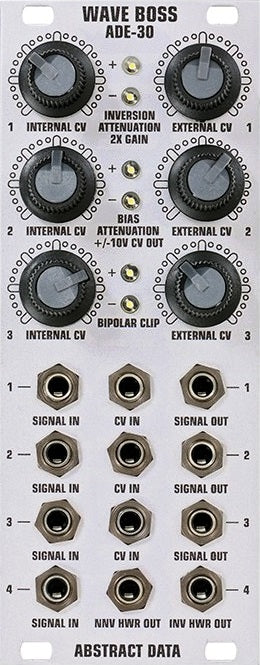

4 Stage Waveform and CV Utility Module

Combines the most practical and commonly used waveform and CV utility functions in a compact, fully-featured module.

4 independent, DC-coupled stages, 7 unique functions in total. Works with most signals found in the Eurorack environment and across the entire frequency range from AC audio to LFO and DC.

Complete CV spec with on-board attenuation for CV conditioning. LED status indicators show positive and negative-going waveforms.

Power-supply protection. Shallow, skiff-friendly build.

http://www.abstractdata.biz/ade30

• 85 mA +12V
• 85 mA -12V
• ? mA 5V
• 23 mm Depth
