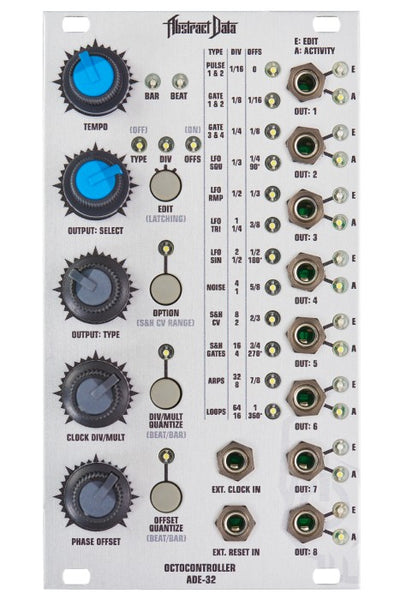

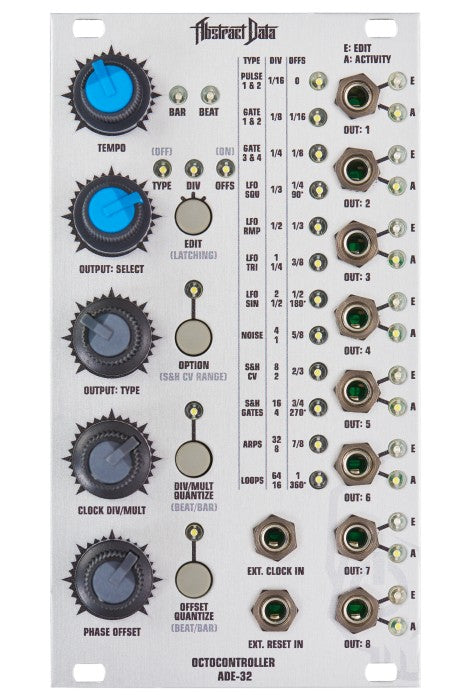

8x output modular control panel - Gates, LFOs, Arps, S&H & more...
Highly configurable Control, Modulation, Triggering and Pattern module. 8 simultaneous Outputs and 12, individually assignable, Output types.
Output and Modulation types include Pulses, Gates, LFOs, Digital Noise, Loopable S&H modes and a collection of Arpeggios and Rhythmic Loops.
Tempo-sync for all Outputs is provided by the on-board Clock or
an External Clock Input with Tempo ranges from 20 to 270 BPM.
Outputs can be set to any Clock Division or Multiple from 1/16th
of a Beat to 16 Bars and can be Offset up to 360 Degrees.
Intuitive interface allows user-definable control over knob and parameter behavior to match the preferences of individual users.
- 135 mA +12V
- 110 mA -12V
- 0 mA 5V
- 35 mm Depth
