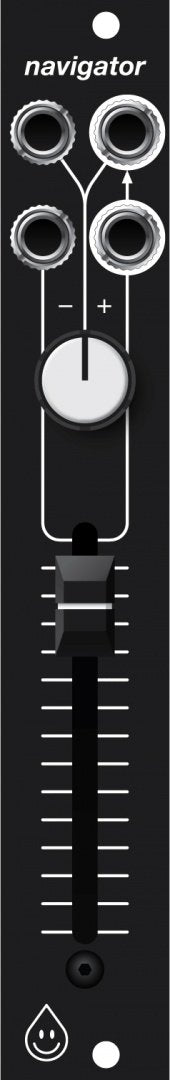

Navigator is a compact, multi-use voltage utility designed to bring playable control to CV sources in your rack. The combination of normalled voltages and mixing allows you to attenuate, polarize and offset signals to modulate parameters exactly within the sweet spot of another module’s CV input. Navigator is a compact, multi-use voltage utility designed to bring playable control to CV sources in your rack. The combination of normalled voltages and mixing allows you to attenuate, polarize and offset signals to modulate parameters exactly within the sweet spot of another module’s CV input.

Kit option has all SMD components pre installed, just a handful of simple through hole soldering needed.

• Unipolar fader attenuator
• Bipolar attenuverter
• Individual inputs and outputs
• Inputs normalled to +5V
• Attenuator output normalled to mix with attenuverter +/-5 for offsetting attenuated CV
• 4hp

https://acidraintechnology.com/products/navigator

• 4hp
• 11 mA +12V
• 8 mA -12V
• 0 mA 5V
• 25 mm deep
