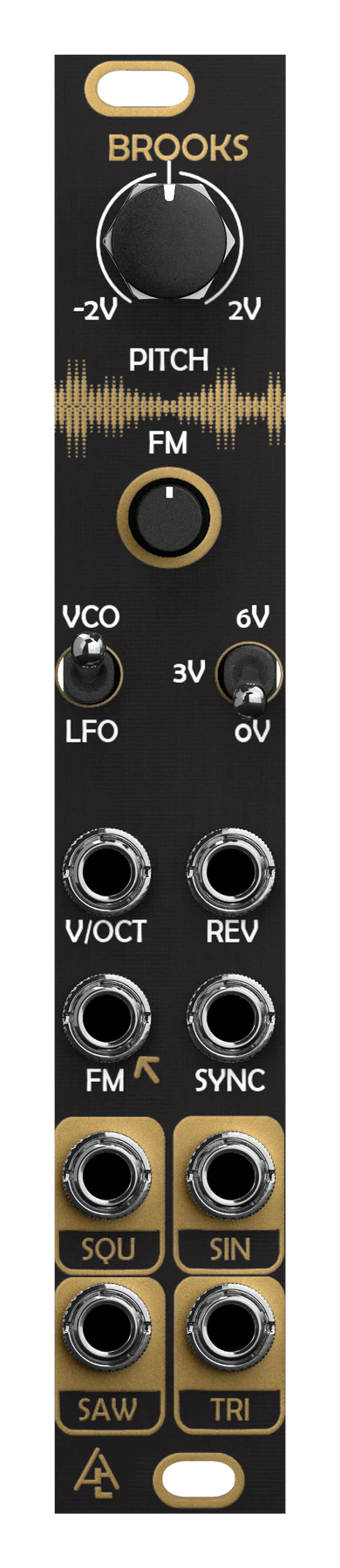

AFTER LATER AUDIO BROOKS THRU ZERO VCO

AFTER LATER AUDIO BROOKS THRU ZERO VCO
AFTER LATER AUDIO BROOKS THRU ZERO VCO
AFTER LATER AUDIO BROOKS THRU ZERO VCO

AFTER LATER AUDIO BROOKS THRU ZERO VCO

Regular price $119.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

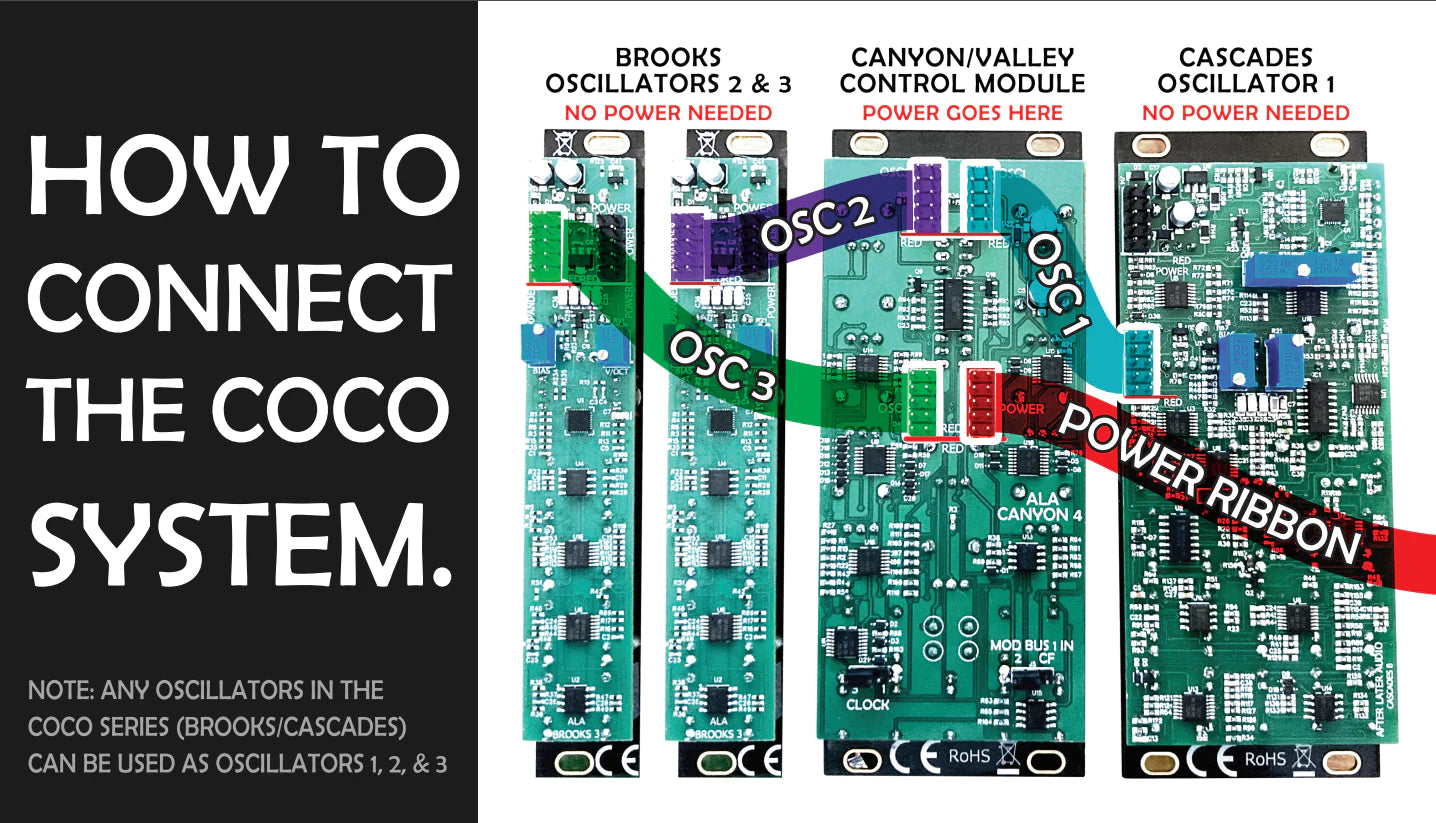

This is the smallest oscillator in our COCO system.

Brooks

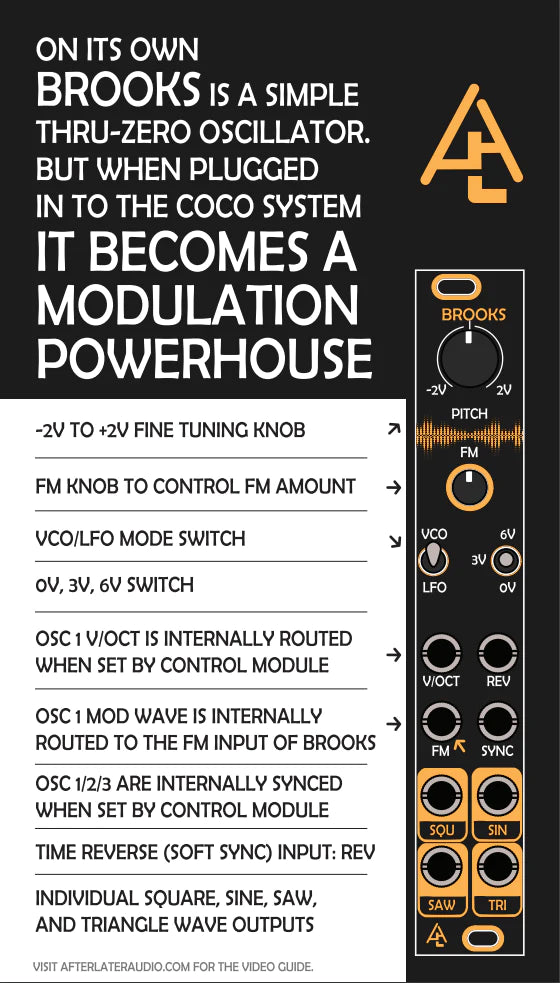

Brooks is a 4hp thru zero oscillator.  It still packs in a lot of features but will work better in most cases as the 2nd and/or 3rd oscillator in the system.  Key features:

  • Thru zero FM oscillator
  • Tuning switch enables ranges of 0V, 3V, and 6V
  • Tuning knob offers 4 octave range, when coupled with the switch you get a full 10 octaves.
  • Both hard sync and time reverse (soft sync)

The chip used for the core of this module is the SSI2130, which has a tendency to lock up on startup when the power rails come up asymmetrically, which is most common in Intellijel power supplies.  I did my best to fix this but there may still be instances where the unit locks up on startup.  If you end up in this state, just flip the LFO/VCO switch to get it behaving.

Thanks to Neil Johnson at Sound Semiconductor for being so helpful in creating this.





Width: 4hp
12V: 30mA
-12V: 15mA
