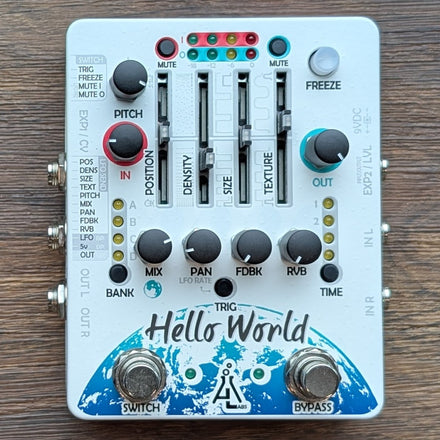

Bringing our stereo granular sampler, Typhoon, to pedal format.  This removes all of the modulation jacks and replaces them with a set of dip switches that can used with external modulation or the onboard LFO.

Two expression jacks for pedal control:

1. Modulation - You can send either the LFO or steady voltage to this jack and then use the dip switches to control which parameters the modulation applies to.
2. Level - Control the input level to allow your reverb tails and effects to taper off naturally.

Requires a 9V tip negative power supply.

Usage tips:

Press and hold time to swap between modes, then press the time to cycle through the options (* = lit LED)

Helpful links

1. The original manual gives a great intro to the basics
2. The Microcell manual has a good overview of the additional controls (it uses the same firmware)

Open Source Hardware

Original Clouds:

• Hardware: cc-by-sa 3.0 – E. Gillet / Mutable Instruments (GitHub)
• Software: MIT License – E. Gillet / Mutable Instruments – (GitHub)

Typhoon:

• Derivative Panel, PCB & Schematic provided by Jakplugg under creative commons CC-BY-SA-3.0 license
• Software:
  • SuperParasites – MIT License – Patrick Dowling – (GitHub)
  • Which is based on:
    • Parasites – MIT License – Matthias Puech – (GitHub)
    • Beat Repeat – MIT License – Julius Kammerl – (GitHub)
