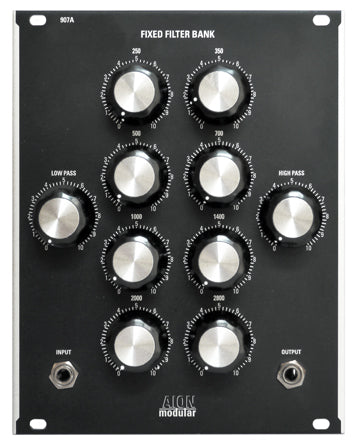

The 907A Fixed Filter Bank is a non-voltage controlled modifier which emphasizes or reduces the gain of the center frequency bands indicated on each of the eight center pots, in addition to the cut-off points from low pass and high pass filters at either frequency extreme. A total of 10 overlapping filter networks are included.


Specifications:

Size: 20hp
Power: +12 (30mA), -12 (15mA)
Depth: 20mm
Doepfer compatible.
