14 band Inductor based Fixed Filter bank

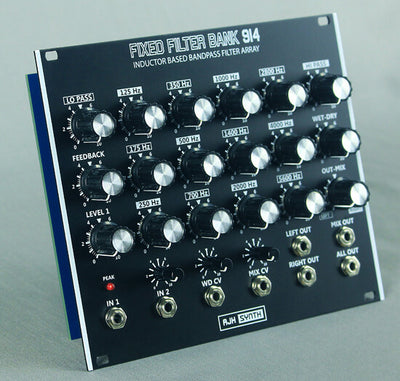

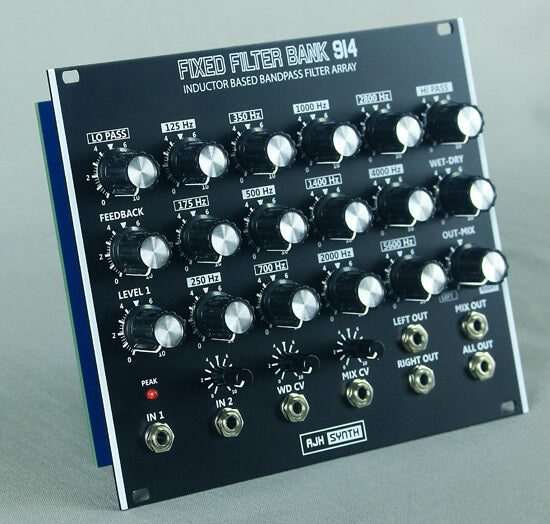

This 30HP wide module features twelve fixed frequency, inductor based bandpass filters, set at half octave interval spacing and covering from 125 Hz through to 5.8kHz. It also features low pass and high pass shelf filters, again they are fixed frequency and both are active inductor based circuits. It has a vintage pedigree that harks back to the original and highly sought after 914 Fixed Filter bank from the 1960’s Moog™ 900 series modular synthesiser system, however we have brought this design up to date and made it compact enough to fit into skiff friendly Eurorack cases by using gyrator based active inductors, and have added some other very useful features too – the bands are split alternatively to left and right channels, each having their own individual output, and there is also an inbuilt Voltage Controlled cross-fader that allows panning between the left and right banks, with a mix of all bands available in the central position.

In addition, we have a second cross fader that can mix between the dry incoming signal, or an external signal fed into input 2, and this is cross-faded against the wet MIX Output – this allows Voltage Controlled crossfading from wet to dry signals, or between wet and external signals – and the level of each can be adjusted using the Input 1 and Input 2 level controls.

A further addition is the feedback control, this is similar in design to the resonance control on a regular VCF, but because of the multiple fixed filters topology it is rather different in oper

• 30HP
• 180 mA +12V
• 170 mA -12V
• 26 mm deep
