AJH SYNTH TRIPLE CROSS XFADER PANNER

AJH SYNTH TRIPLE CROSS XFADER PANNER

AJH SYNTH TRIPLE CROSS XFADER PANNER

Regular price $379.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

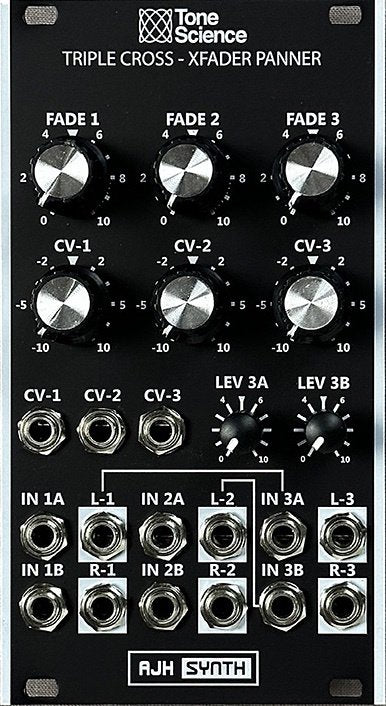

The Tone Science Triple Cross module is a design collaboration between electronic musician/composer Ian Boddy and AJH Synth.

It features three independant cross fader and panner channels, and it can be used with both audio and CV signals. Each of the channels can be configured in one of four different ways:

1) One In, One out Linear VCA

2) Two in, One out crossfader

3) One in, Two out panner,

4) Two in, Two out cross fader & reversing panner combined.

Audio rate modulation can also be used on the CV inputs to create Ring modulation and Cross modulation type sounds. Each channel has a dedicated Fade control, CV input, and CV Level attenuverter. These can be used together to bias incoming CV signals.

The L1 and L2 outputs from channels 1 and 2 are normalised to channel 3’s inputs, which also have their own level controls to balance incoming signals. This allows very interesting, complex fading and panning between four different input sources, to either Mono or Stereo outputs.

Dimensions
14 HP
26 mm deep
Current Draw
80 mA +12V
72 mA -12V
0 mA 5V
