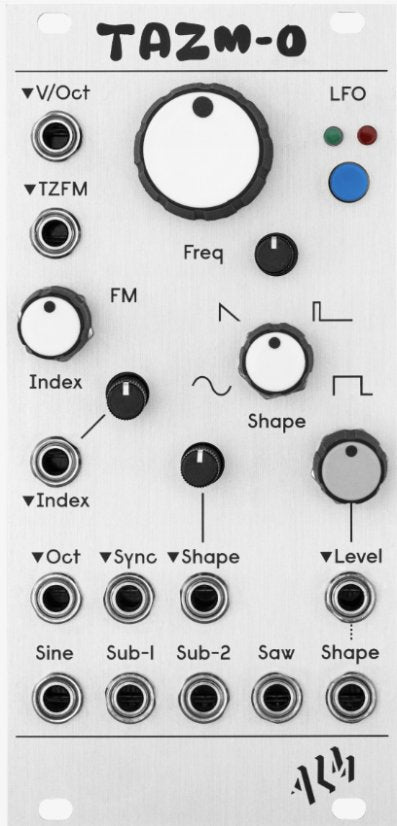

ALM BUSY CIRCUITS TAZM-O OSCILLATOR : B-STOCK

ALM BUSY CIRCUITS TAZM-O OSCILLATOR : B-STOCK

ALM BUSY CIRCUITS TAZM-O OSCILLATOR : B-STOCK

Regular price $379.00 Sale price $340.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

The ‘TAZM-O’ is an analog triangle core oscillator featuring through-zero frequency modulation and a collection of some of our favourite features of classic oscillator designs.

It includes a continuous morphing wave/pulse width shape control inspired by the Serge NTO, dual SH-101 style varied pulse sub octave outputs, a voltage controlled FM Index typically found in larger complex oscillators, a built in output level VCA and voltage controlled octave transposition similar to the multipliers found on Akemie’s Castle digital FM VCO.

Designed to act as the primary oscillator in your system the ‘TAZM-O’ offers a wide range of timbral and patch flexibility within a relatively compact 12HP size, making it the perfect fit for any modular system.

Continuous crossfading wave shape with direct and voltage control.
Through-zero FM input with direct and voltage controlled mod index.
Dedicated outputs for sine (or triangle), saw and square sub-1 & sub-2.
Primary output with level VCA.
V/Oct input with approx 8 octave range.
Octave transpose CV input ranging 3 octaves.
Hard Sync input.
LFO mode with bipoler LED indication.
Rear switches for selecting Sub-2 pulse width, and sine/triangle waves.
Skiff friendly with reverse power polarity protection.
Made in England.

Dimensions
12 HP
38 mm deep
Current Draw
70 mA +12V
60 mA -12V
