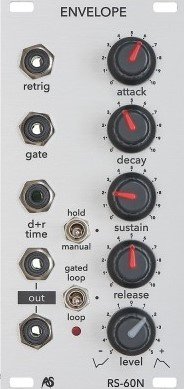

ANALOGUE SYSTEMS RS-60N ADSR

ANALOGUE SYSTEMS RS-60N ADSR

ANALOGUE SYSTEMS RS-60N ADSR

Regular price $199.00 Sale price $169.15
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

Flexible ADSR envelope with voltage control of decay and release times. Interesting hold and repeat functions turn the envelope into a LFO with gating functions. Among the ADSRs the RS-60N module still is among the most versatile, natural sounding and highly recommended!

Thanks to a new front panel and bus concept, this version of the RS-60 is fully compatible to Doepfer-style Eurorack systems.

Classic ADSR type envelope generator. Decay and release times can be voltage controlled via a common input for positive CVs between 0 and +10V. Time ranges of the segments: Attack: 0,5mS to 10S; Decay: 2,5mS to 20S; Release: 2,5mS to 20S.

Two switches affect the behaviour of the RS-60N in nine different ways:

STD/STD: Normal ADSR mode. A gate triggers and holds the envelope up to the release phase. HOLD/STD: hold will hold the envelope at sustain level. Signals in the gate input have no effect. A signal at the Trig/Retrig-In restarts the AD phase and keeps the envelope at sustain level until the next trigger. ONESHOT/STD: Press the swithc into oneshot position and you´ll fire the envelope once. trigger signals at the Trig-Retrig-In will restart th envelope only when oneshot switch is pressed. HOLD / GATED REPEAT and HOLD / AUTO REPEAT have the same effect. Attack and decay phases will be repeated and the module acts as a LFO. Rate is dependent on the A/D times and range from 0.003Hz to 300Hz. A gate at the Trig-Retrig-In holds the signal at +10V, without gate the LFO continues cycling. STD / GATED REPEAT: The envelope will onbly be looped when a gate signal is present at the Gate-Trig-in STD / AUTO REPEAT: A gate at the Trig-Retrig-In holds the signal at +10V, without gate the LFO continues cycling. ONE SHOT / GATED REPEAT and ONE SHOT / AUTO REPEAT have the same effect. the oneshot switch generates a gate and fires the envelope. A gate at the Gate-Trig-in will hold the envelope at +10V, without gate the envelope will be looped.

The envelope signal is present at two outputs A and B and it´s level can be controlled and inverted with a potentiometer.

Similar to MakeNoise´s Maths you can influence the curve of the envelope by feedbacking it: connect the positive output with the CV input for decay/release; the stronger the modulation the shorter, more exponential and punchy the envelope gets.
connectors
Inputs:
Trig/Retrig input, Gate/Trig input
CV input for controlling the decay and release times
Outputs:
Envelope outputs A and B

  • 12hp
  • 24 mA +12V
  • 24 mA -12V
  • 0 mA 5V
  • 65 mm deep
