AUDIENT EVO 8 AUDIO INTERFACE

AUDIENT EVO 8 AUDIO INTERFACE
AUDIENT EVO 8 AUDIO INTERFACE
AUDIENT EVO 8 AUDIO INTERFACE

AUDIENT EVO 8 AUDIO INTERFACE

Regular price $229.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

Get studio quality recordings

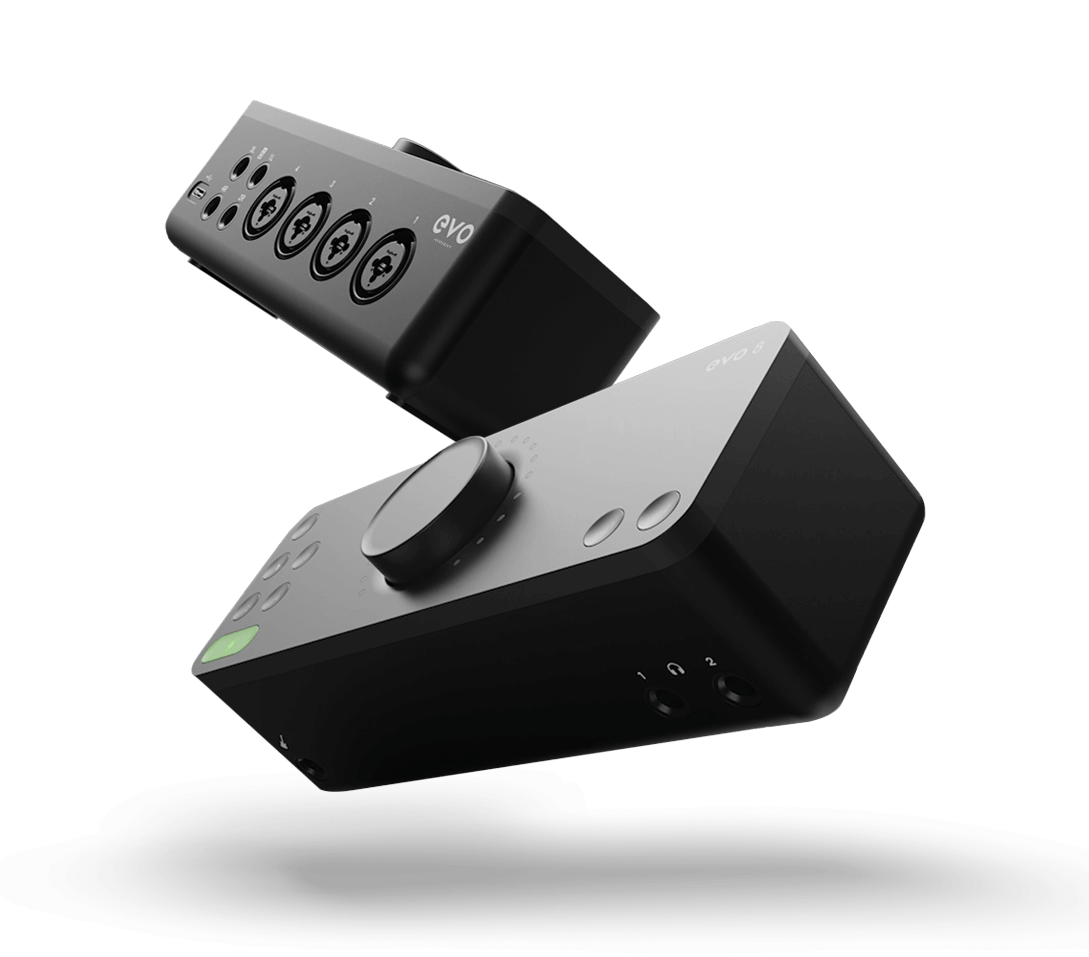

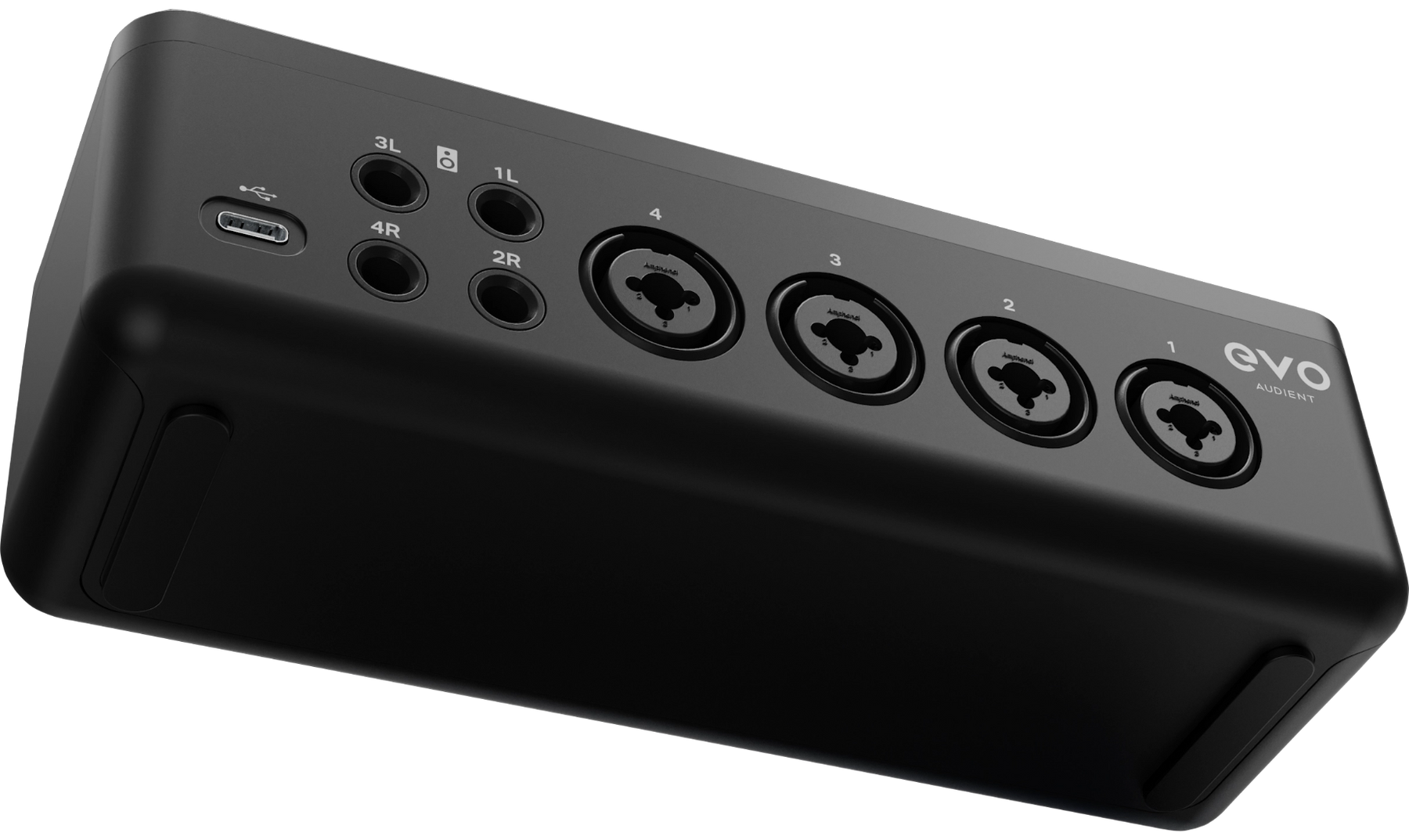

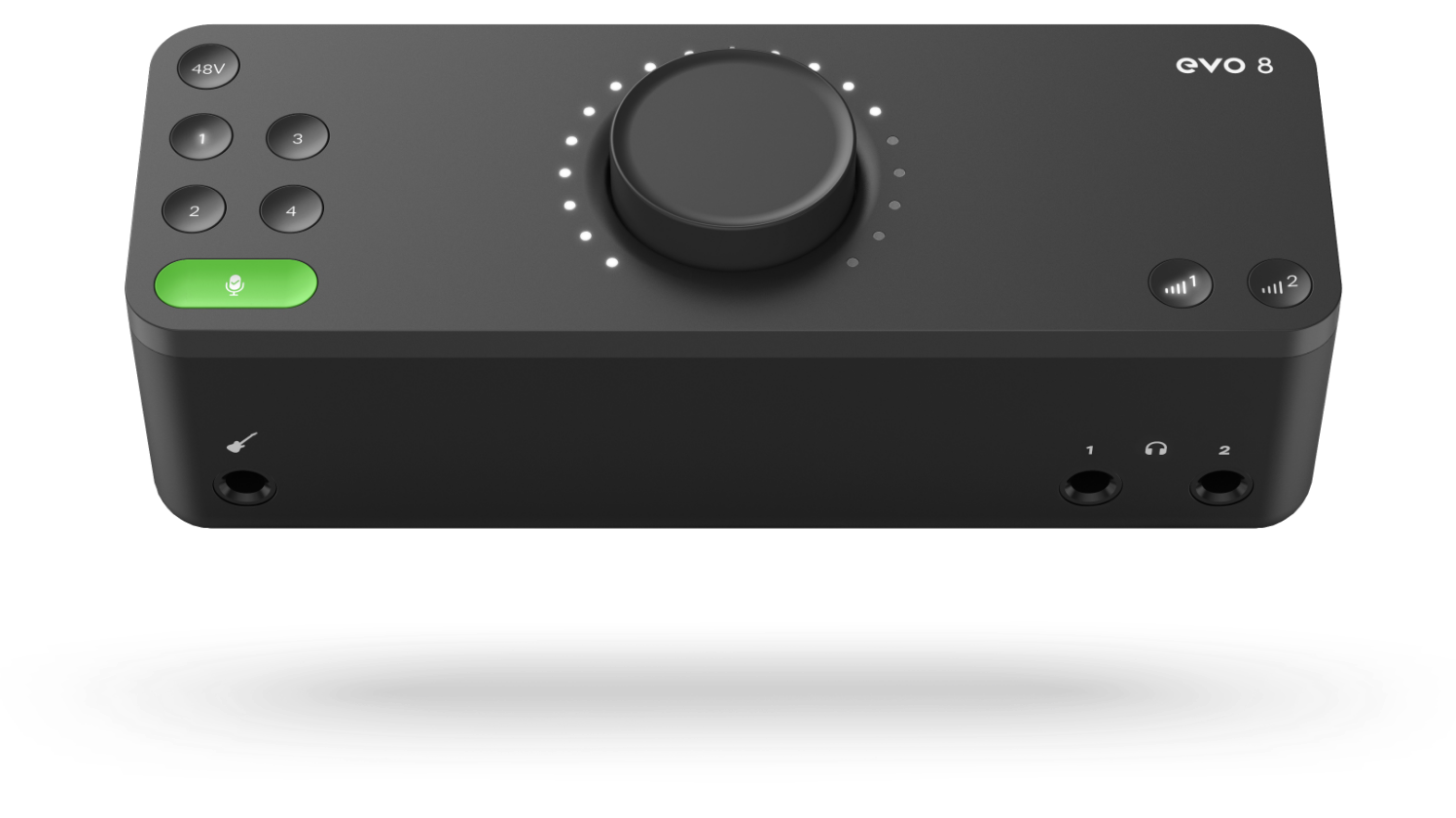

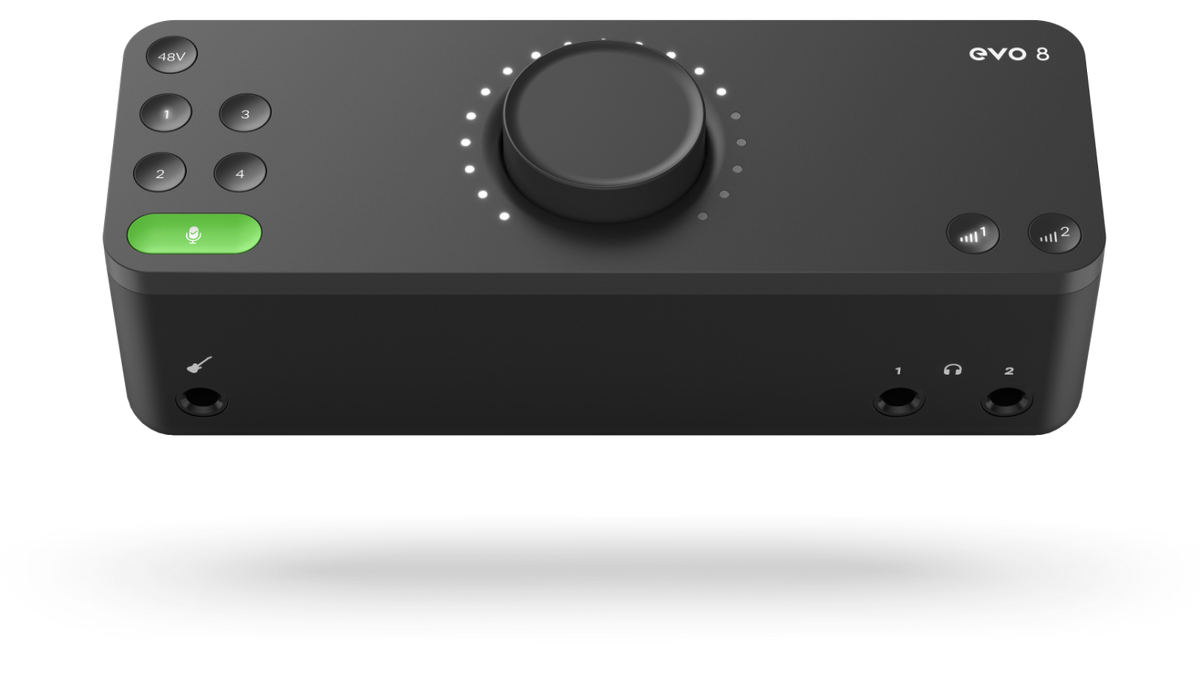

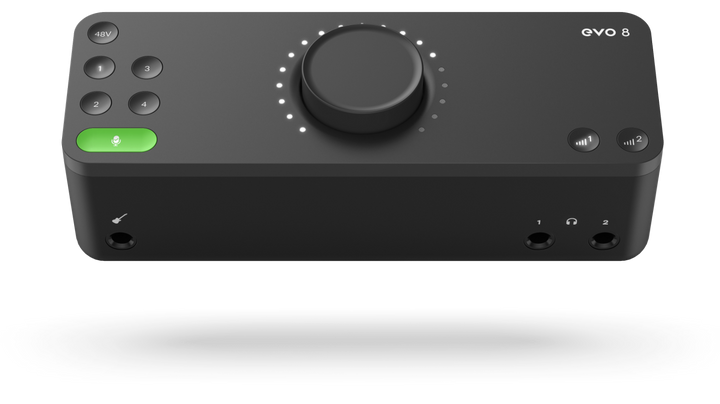

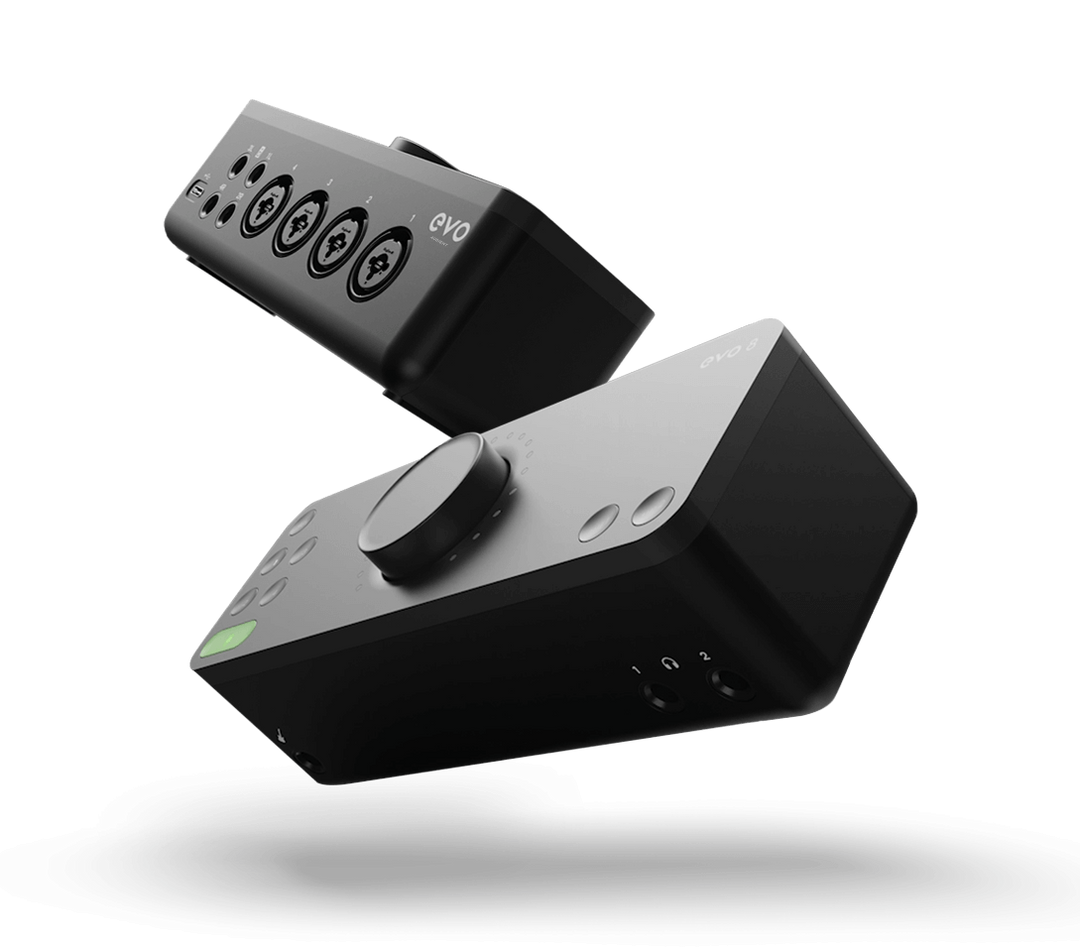

EVO 8 is a professional, incredibly powerful and totally portable 4 channel audio interface made for recording music at home or on the go. Four award winning EVO Mic preamps alongside our advanced converter technology deliver studio quality results from the get go. Add to that intelligent mic preamps that set their own levels with Smartgain, easy to navigate controls, and a powerful range of professional must-have features – EVO 8 isn’t just another audio interface, it’s an entirely new way of doing things.

The EVO Mic Preamp


An analogue preamp but smarter


Say hello to the preamps your studio needs. Four sonically stunning EVO preamps will effortlessly level up your recordings, delivering professional grade audio performance backed by 25 years of engineering experience. Our analogue mic preamp has been designed to deliver the most accurate, clean and true to source version of your audio, no matter what you’re recording.

High Performance
AD/DA Converters


High performance converters are critical for hearing your audio accurately and boy, does EVO 8 deliver. Providing a massive 113db of dynamic range alongside ridiculously low noise and distortion figures, and with performance that good, you’ll be making music like the pros before you know it.

Smartgain

Designed to change the gain



Meet Smartgain, the ultimate time saver designed to take the guesswork out of setting your levels. Powered by our lightning quick algorithm, Smartgain uses advanced peak analysis to automatically analyse, adjust and set your gainto the perfect levels – all in less than 20 seconds! Giving you perfect recordings every time.

Working solo?


Recording solo can be difficult, especially when you’re the artist AND the engineer – but with Smartgain simply press the magic button, start performing and EVO 8 will take care of the rest.




Features



• 4 x EVO Mic Pres

• Class Leading Converters

• Smartgain

• Smart Touchpoints

• JFET Instrument Input

• 2 x Stereo Speaker Outputs

• 2 x Headphone Outputs

• Low Latency Software Mixer

• Audio Loop-back

• USB2.0 Bus Powered

• Phantom Power

• Free Software + Plugins



Specifications




Check the minimum system requirements to make sure your computer can operate EVO 8


Microphone Preamplifier

Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48V +/-4V @ 10mA/Channel (only 2 channel available on USB-A host computers
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3kΩ Balanced
Input Impedance (Line): >10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I

D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4” Jack: TIP (Hot) & SLEEVE (Shield)

ADC Inputs

Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 113dB A-weighted

DAC Outputs

Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance: <100Ω Balanced
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output

Output Impedance: <50Ω
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)

DSP Mixer Roundtrip Latency:

(in to out)
44.1 kHz 0.594ms
48.0 kHz 0.552ms
88.2 kHz 0.302ms
96.0 kHz 0.281ms

DAW Playback Latency

@ 32 Sample Buffer for Software Instrument Playback
44.1 kHz ~2.5ms
96.0 kHz ~2ms

DAW Roundtrip Software Monitoring Latency

@ 32 Sample Buffer (in to out)
44.1 kHz 5ms
96.0 kHz 4.1ms

Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.


USB 2.0 High Speed

No. Of Input Channels 24 Analogue
No. Of Output Channels 4 Digital
Connector: USB Type-C
Included Cables: 1m USB 2.0 Type-C to USB Type-C

Weight & Dimensions

Weights: Unit: 0.475kg
Packaged: 0.815kg
Dimensions: Unit: 190mm (w) x 70mm (h) x 70mm (d)
Packaged: 230mm (w) x 105mm (h) x 95mm (d)
