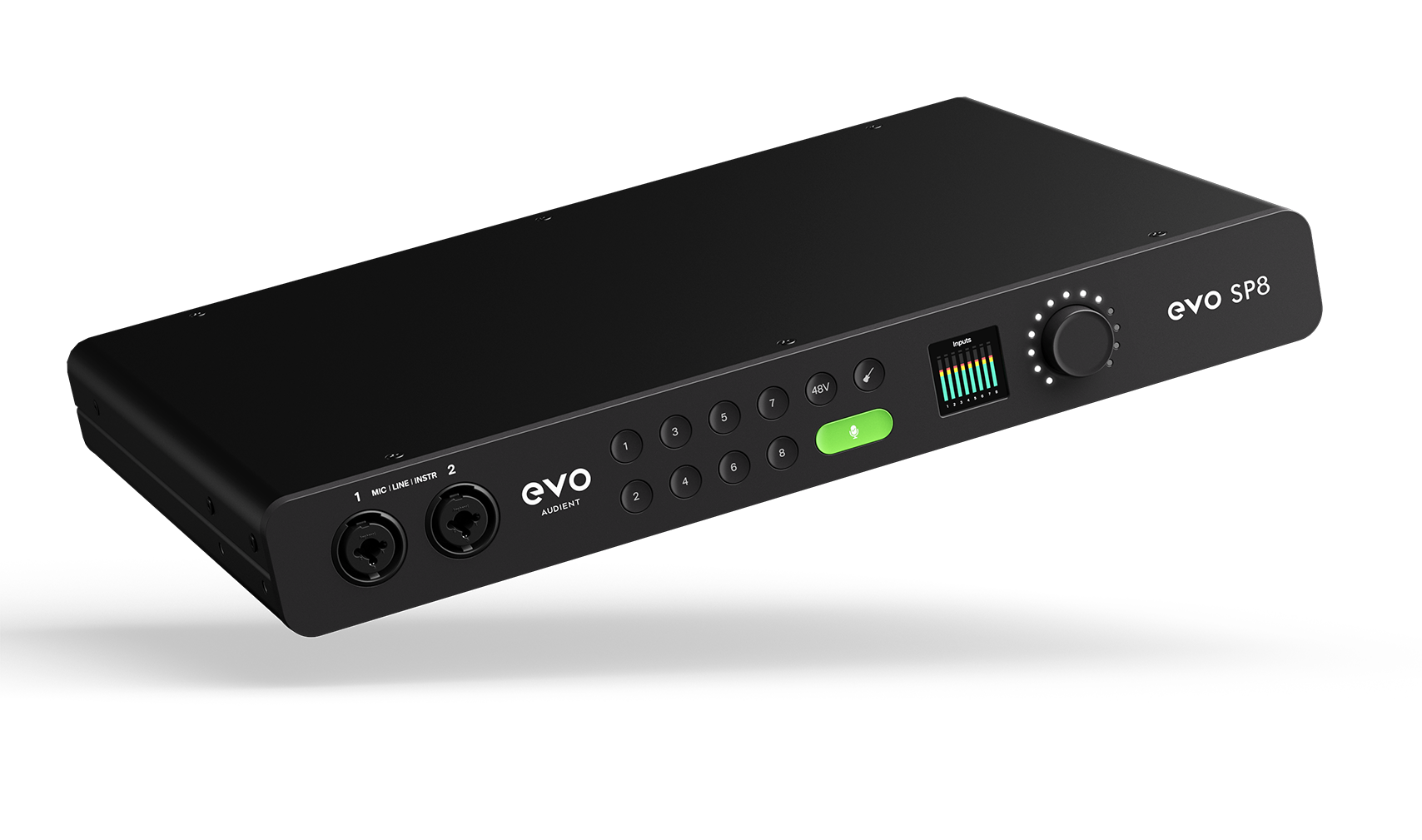

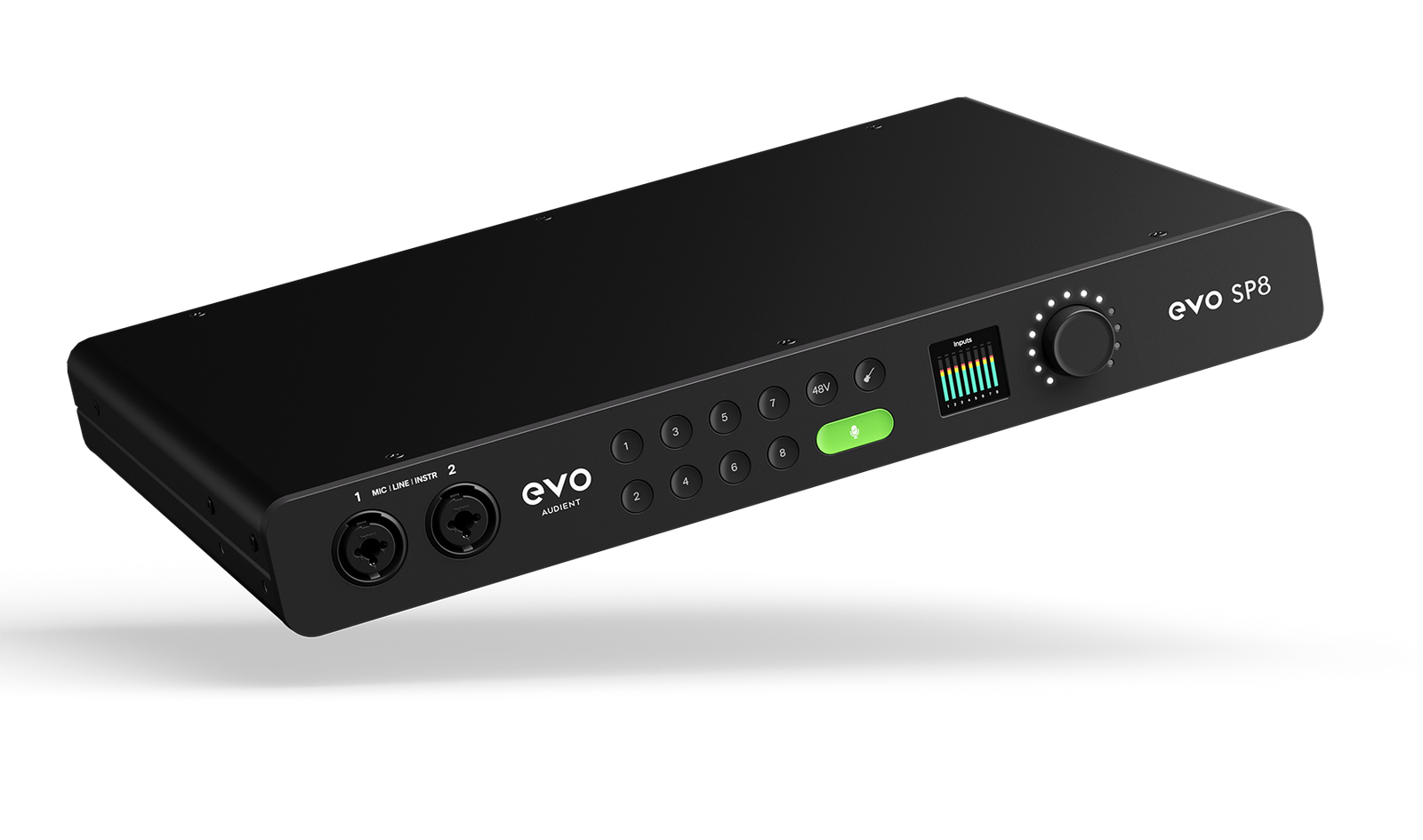

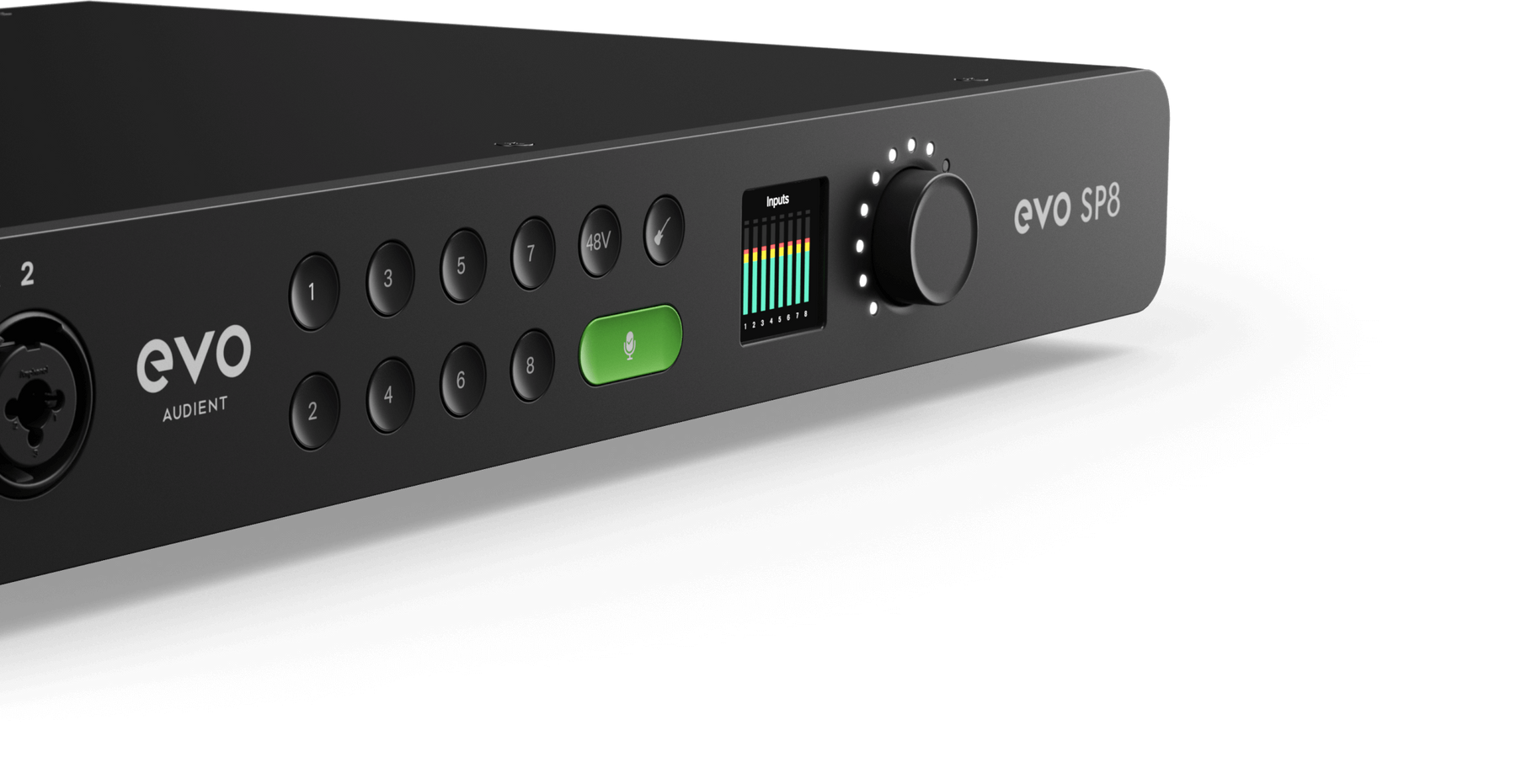

The ultimate studio preamp expander is here. EVO SP8 is designed to be the perfect partner for expanding your existing audio interface. Give your studio the performance and capability boost it needs, providing eight intelligent EVO Preamps that set their own levels with Smartgain, advanced AD/DA converter technology and a versatile range of I/O connectivity. Add to that two JFET instrument inputs, the all new, groundbreaking Motion UI control system and exceptional audio performance across the board. The EVO SP8 might just be the world’s smartest Mic Preamp.
The perfect partner for your audio interface

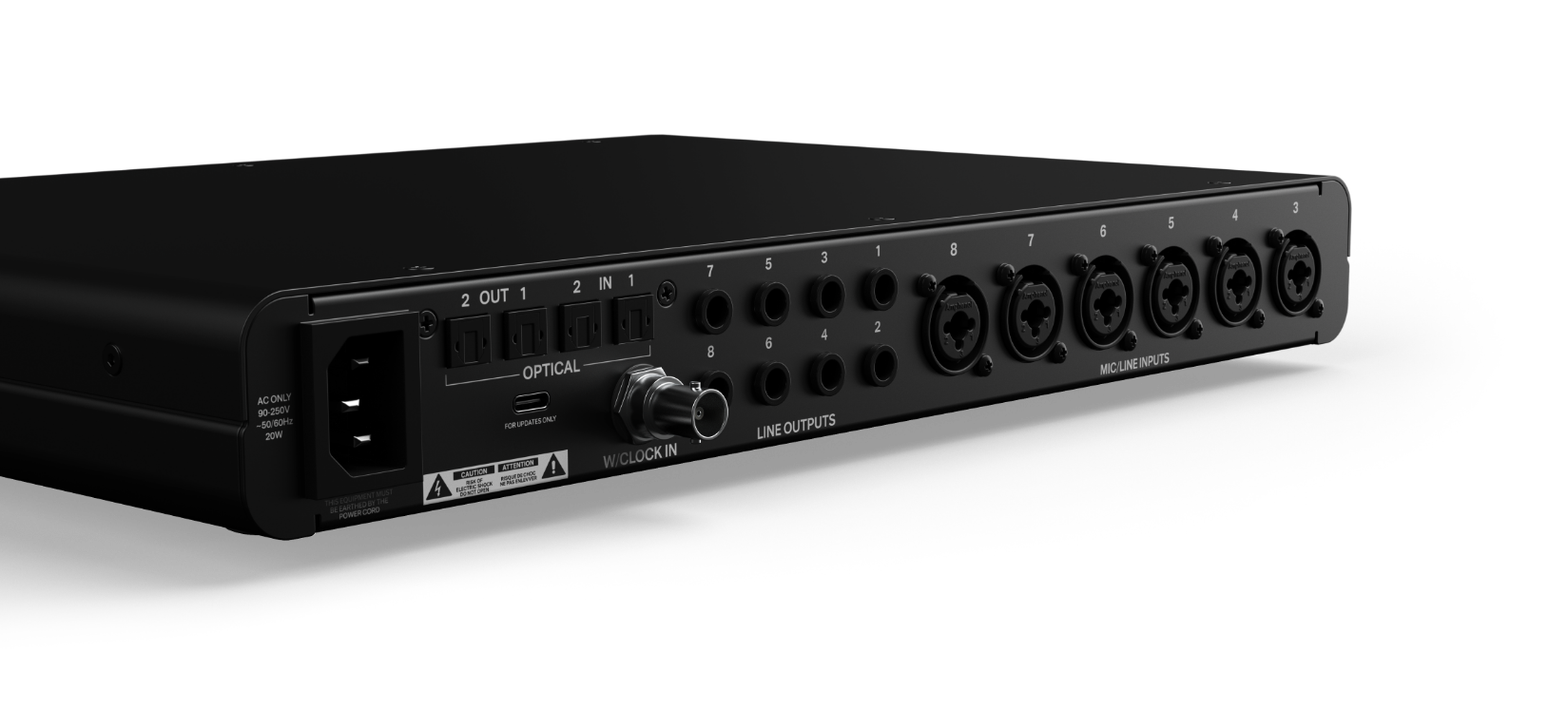

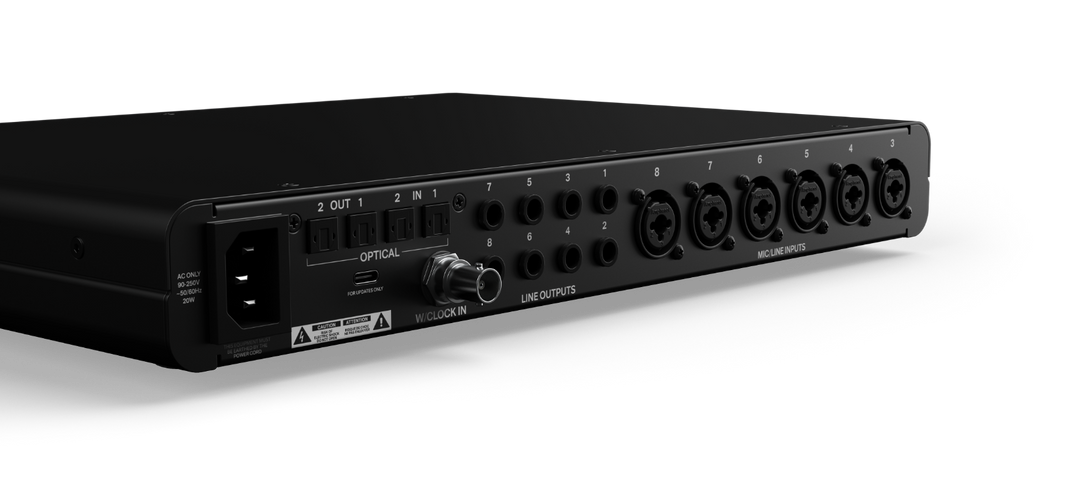

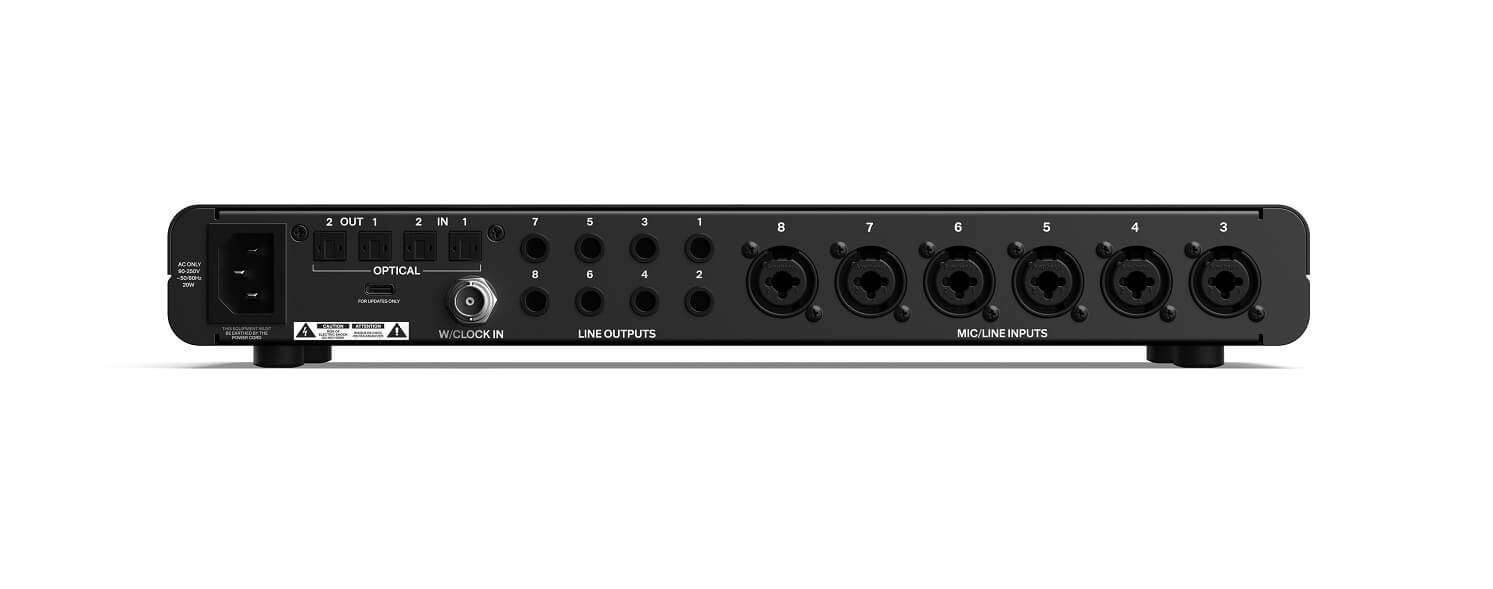

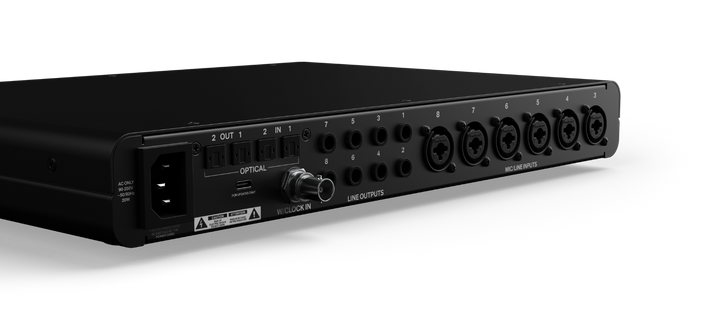

Bigger sessions demand more channels and expanding your existing audio interface via ADAT might be the most cost effective solution to scale up your studio. EVO SP8 provides eight mic/line inputs, eight line outputs and 2 x ADAT connections, giving you enough I/O firepower to easily tackle multi-mic sessions like recording drums, or taking on a full band.
Better converters = better audio
In the studio, sound is everything and EVO SP8’s high performance AD/DA converters use 32-bit technology to make sure you hear your audio accurately at all times, whether you’re recording music or sending audio to your favourite outboard gear and back when mixing. Better converters mean better audio – helping you make creative decisions confidently, identify issues and improve your overall recording and mixing game.
Smartgain
A total gain-changer
Make recording drums and larger sessions easy with Smartgain. Automatically set the gain for all eight channels at once with a simple touch of a button. Powered by our lightning quick Smartgain algorithm, Smartgain uses advanced peak analysis to automatically analyse, adjust and set your gain to the perfect levels – all in less than 20 seconds! Now it’s up to you to figure out what to do with all that time you’re saving…
Your own assistant engineer
Working Solo?
Record, adjust levels, repeat. Sound familiar? Save time and make recording on your own a breeze and gain the power to save time with Smartgain. Simply set up your mics, hit Smartgain, start performing and EVO SP8 will take care of the rest.

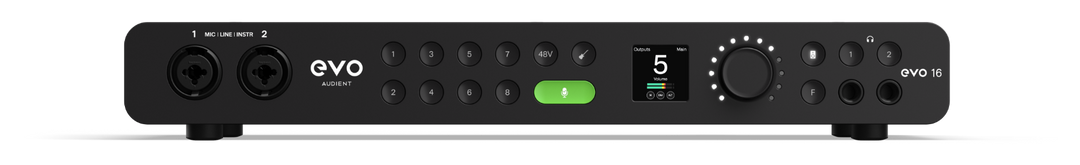

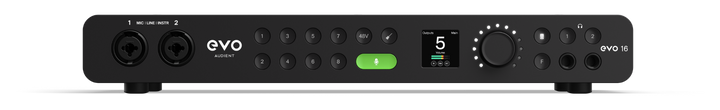

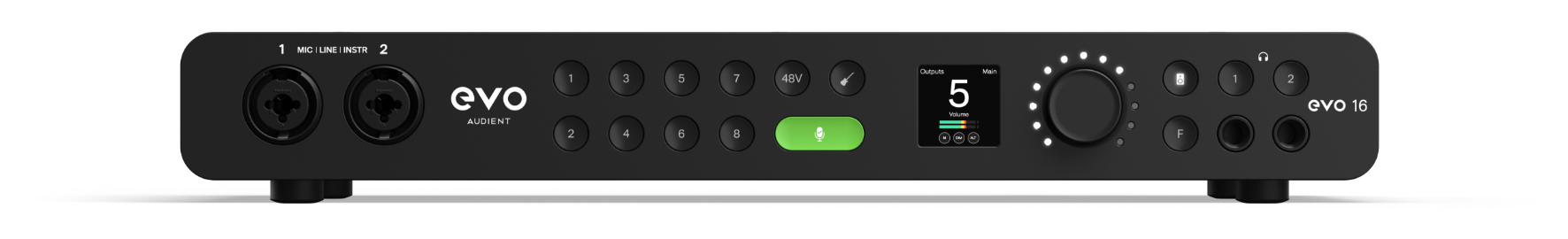

Compatible with EVO 16
EVO Expanded System
Become more efficient in the studio. Unleash Smartgain’s capabilities by pairing two EVO SP8’s with an EVO 16 audio interface and get 24 channels of Smartgain enabled mic preamps. Yes, with an EVO Expanded system that’s 24 channels at once… light years ahead of the competition.
• 8 x EVO Mic Preamps

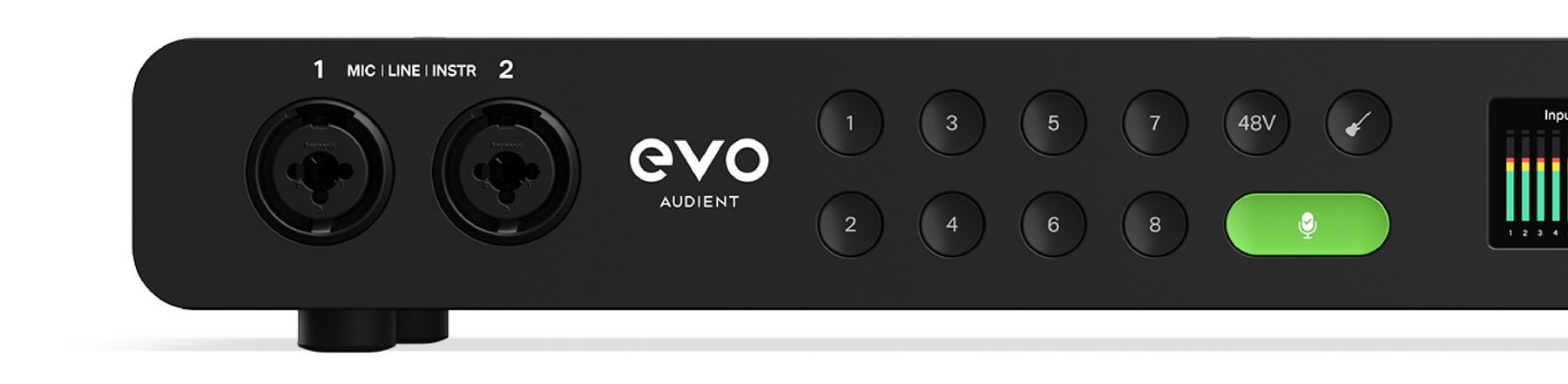

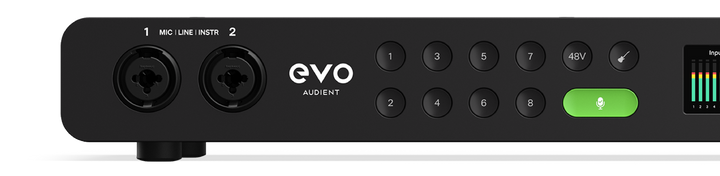

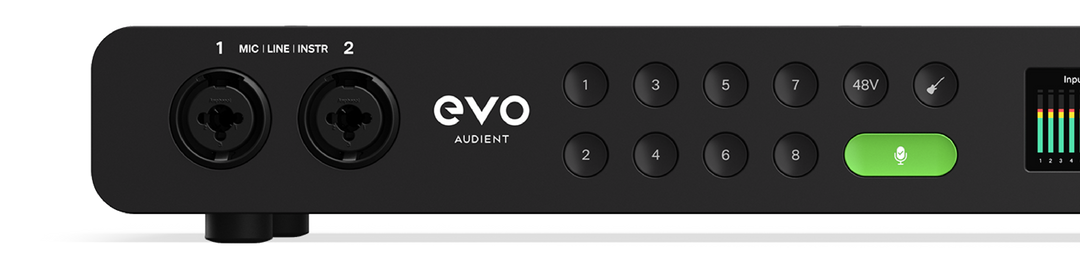

• 2 x JFET Instrument Inputs
• 8 x Line Outputs
• 2 x ADAT Inputs
• 2 x ADAT Outputs
• Class Leading AD/DA Converters
• Multi-Channel Smartgain
• ‘EVO Motion UI’ Control System
• High-Res LCD Screen
• One Knob Centralised Control
• Ultra Clear Metering
• Input/Output Control
• Channel Status Indication
• Optional Rack Ears
• Word Clock Input
• 24bit / 96kHz
Microphone Preamplifier
Mic Gain Range: | 58dB |
Line Gain Range: | 58dB (-10dB pad) |
Phantom Power: | 48v +/-4v @ 10mA/Channel |
Mic EIN: | <-127.5dB |
CMRR: | >80dB @ 1kHz |
Maximum Input Level: | +16dBu |
Input Impedance (Mic): | >3kΩ Balanced |
Input Impedance (Line): | >10kΩ Balanced |
Frequency Response: | +/-0.5dB 10Hz to 40kHz |
Crosstalk: | <-105dBu @ 1kHz <-103 @ 10kHz |
THD+N @ 0dBu (1kHz): | <0.0015% |
SNR: | 100dB |
XLR: | Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) |
1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
D.I Inputs
D.I Gain Range: | 58 dB |
Maximum Input Level: | +10dBu |
Input Impedance: | 500k |
Frequency Response | +/-0.5dB 10Hz to 20kHz |
THD+N @ 0dBu (1kHz): | <0.1% |
SNR: | 100dB |
1/4” Jack: | TIP (Hot) & SLEEVE (Shield) |
ADC
Digital Reference Level: | 0dBFS = +10.5dBu |
Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
Crosstalk: | -125dBu @ 1kHz & 10kHz |
THD+N @ -1dBFS (1kHz): | <0.001% |
Dynamic Range: | 112.5dB A-Weighted |
Line Outputs
Maximum Output Level: | 12dBu |
Digital Reference Level: | 0dBFS = +12dBu |
Output Impedance: | <50Ω |
Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
Crosstalk: | <-110dBu @ 1kHz |
THD+N @ -1dBFS (1kHz): | <0.006% |
Dynamic Range: | >117dB A-weighted |
1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
Dimensions
Unit: | 355mm (w) x 255mm (d) x 53mm (h) |
