INTRODUCTION

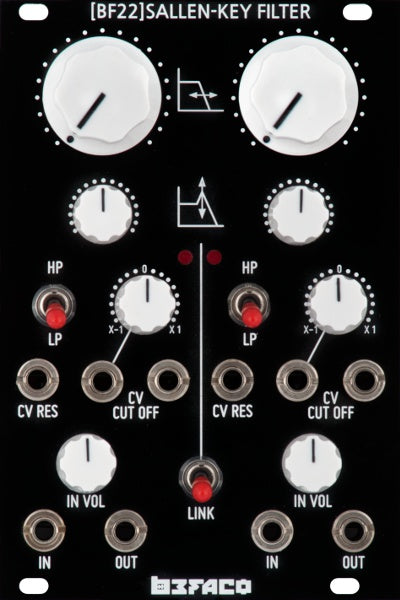

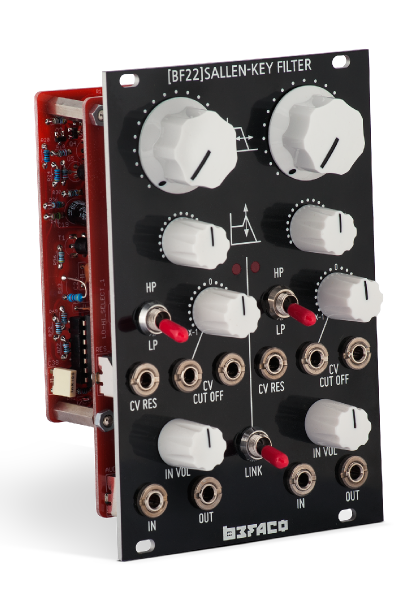

The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.
FEATURES
The module features attenuverters (inverter-attenuators) as an addition to the normal CV control for Cut-off and Resonance, and offers a little more presence in the Resonance than the original. The CV control for Cut-off keeps tracking through 3 octaves.
The โLinkโ switch connects the input of the second unit into the output of the first.
SPECS
โ Current needs: +12V: 40mA, -12V: 35mA
โ Width: 17 HP
โ Depth: 47 mm (inc power connector)
โ Aluminium, heat-treated front panel
โ Designed, kits prepared and completed modules assembled in Barcelona
โ Banana connectors available upon request
โย View in Modular Grid
DISCLAIMER:ย This filter brings to your modular system the character and characteristics of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only itโs amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.
DOWNLOADS
User Manualย |ย Assembly manual
Schematics PDFย |ย CAD/CAM filesย |ย BOM
