A Shortcut for Atmospheric Processing

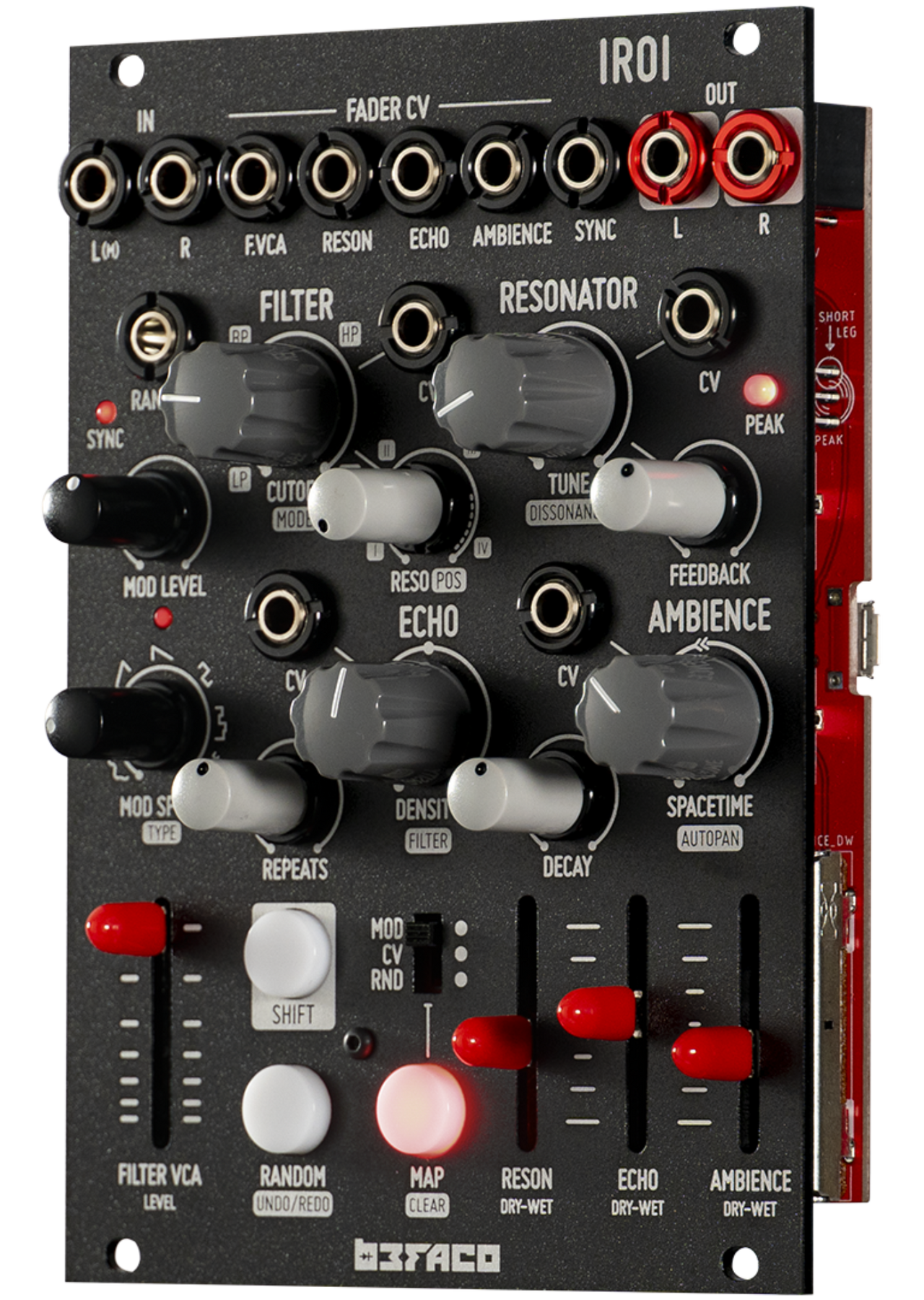

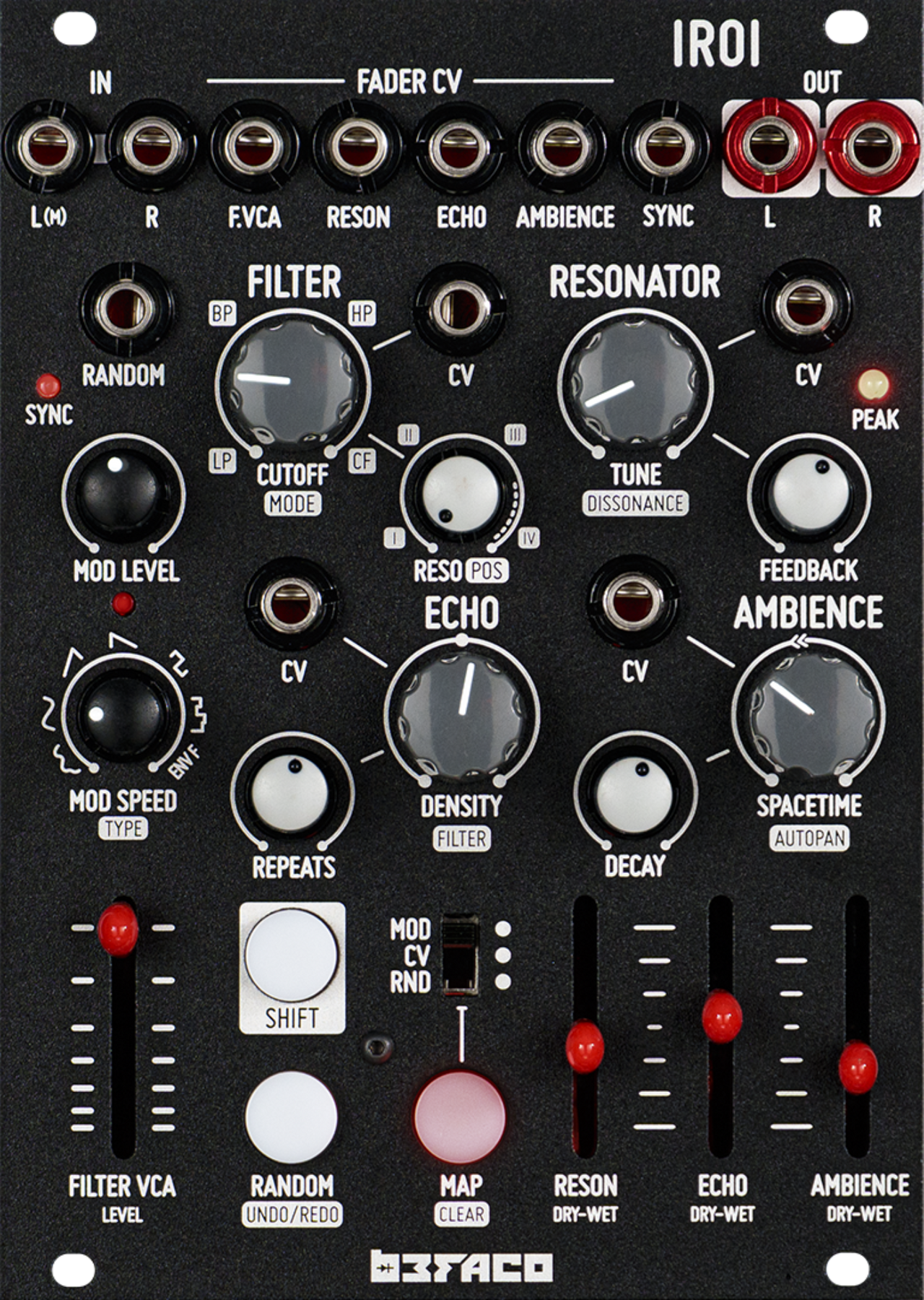

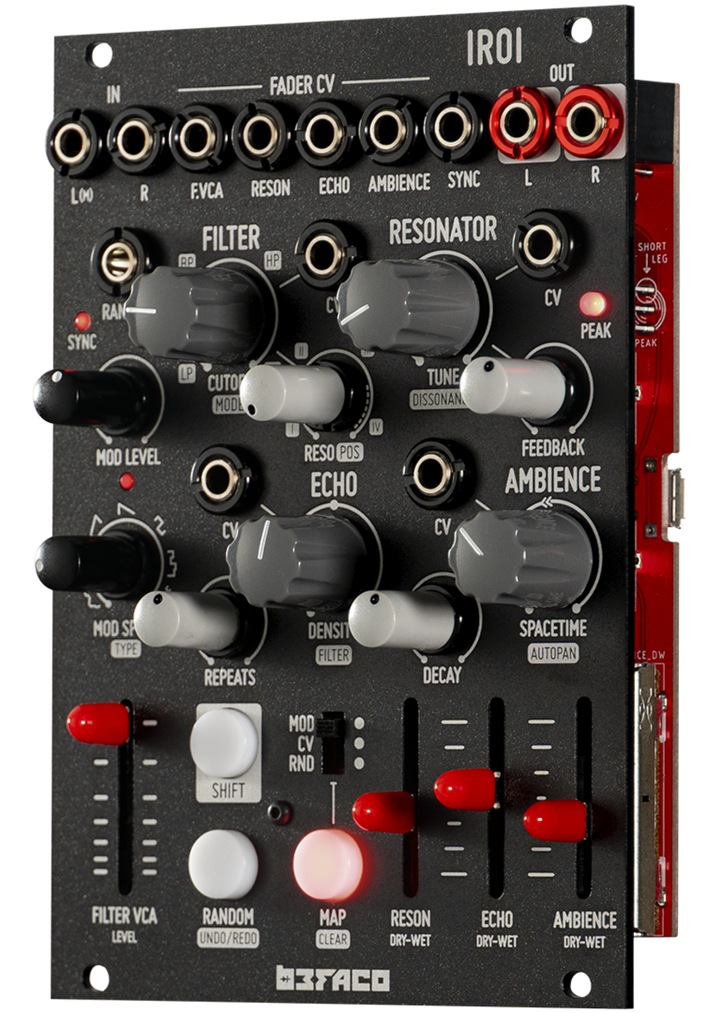

Iroi is a compact, 18 HP stereo effects powerhouse designed to turn any external signal into a deep, evolving soundscape. It inherits the sophisticated processing chain of its predecessor, Oneiroi. Combines a unique signal chain composed of a multimode filter, a VCA, a unique character resonator, a versatile delay, and an experimental Reverb. The filter – VCA act like a block that can be placed at any point on the signal chain

ONEIROI SOUL

Iroi is a chopped-down version of oneiroi with a new mapping structure; It allows you to craft ethereal textures from your own sound sources. A module built to summon deep, character-filled sonic dimensions to your existing setup.

Stereo Multi-Mode Filter

Transform any external signal through his unique stereo multi-mode filter. Choose between Low-pass, Hi-pass, Band-Pass, and Comb Filter and place it at any point of the signal chain. A fast-response digital VCA follows the filter to allow the user to create complete Synth voices just by adding their favorite sound sources and envelopes.

From subtle harmonic mangling to radical sonic alchemy, all within 18 HP.

Experimental Reverb

Immerse your sounds in lush, expansive reverbs and gritty Lo-Fi echoes. The Spacetime control is able to transfer smoothly from short to long to invert reverbs to bloom into hauntingly beautiful atmospheres.

Advanced Mapping System

The IROI Modulation system allows you to randomize, modulate, and CV control all knobs, each one to your preferred amount. Just hold the MAP button while turning the desired parameter, and you are ready to go.

Resonance and character.

Infuse your signals with metallic textures and organic resonance. An ear-tuned resonator designed to add physical presence and harmonic depth to any sound.

Internal Modulation System

Easily create movement within your patch by mapping the internal LFO, or let the incoming audio modulate itself using the envelope follower. Map precisely one of the seven wave shapes to the desired parameter and then control all the mappings at the same time with the Mod Level control. A compact gateway to deep, evolving soundscapes that turn simple inputs into cinematic journeys.

FEATURES

Stereo External input
Multimode filter: low-pass, band-pass, high-pass, and comb filter.
3-band resonator
2-tap echo
Reverb with macro control for size, filtering, and direction
CV Control with attenuators on most parameters
Various types of self-modulation with configurable routing and control over level and speed
External synchronization via sync input

Powerful randomizer with four different targets with undo/redo

SPECS

Current needs: +12V: 175mA, -12V: 45mA
Width: 18 HP
Depth: 27 mm (including power connector)
Aluminium, Matt Anode front panel
Designed and assembled in Barcelona
