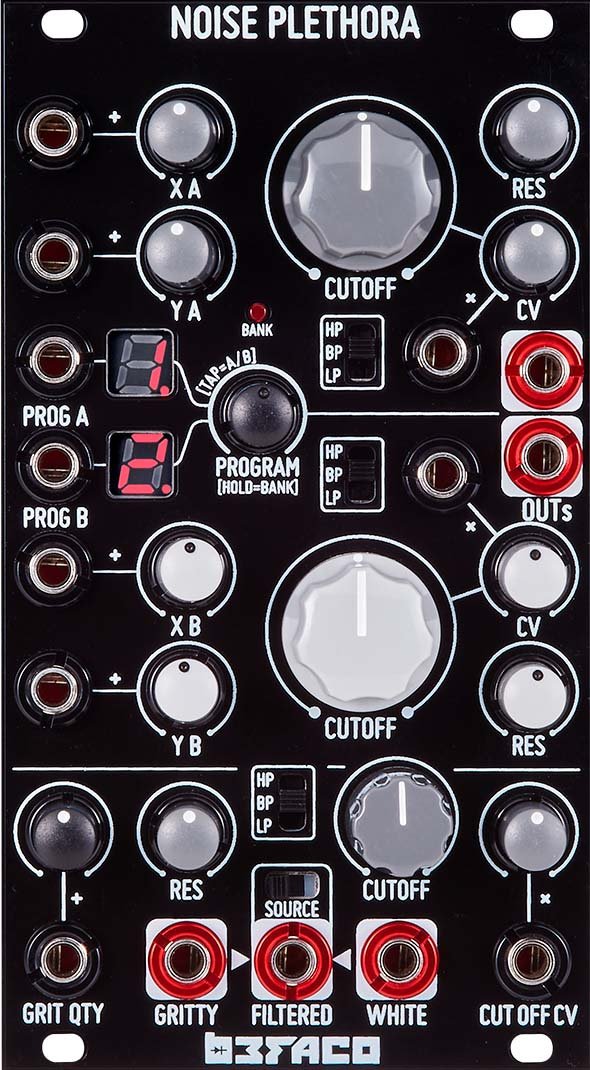

Noise plethora has three different noise generators:
The first two are identical and are composed of digital algorithms followed by a 12dB analog multimode filter.
Each program has two variables (Named X and Y) addressed by two manual controls and two associated control voltage INs.
Ships with an extensive (and expanding) algorithms library: textures, wave clusters, harsh noises, and glitches.
Generator C has three simultaneous outputs:
White. Flat Response Classic white noise.
Gritty. Granulous texture noise, with voltage-controlled grit quantity.
Filtered. Is the White or Gritty noise followed by a 24dB multimode VCF.
A total of 5 different noise sources in one module!
- Dimensions
- 14 HP
- 25 mm deep
- Current Draw
- 110 mA +12V
- 67 mA -12V
- 0 mA 5V
