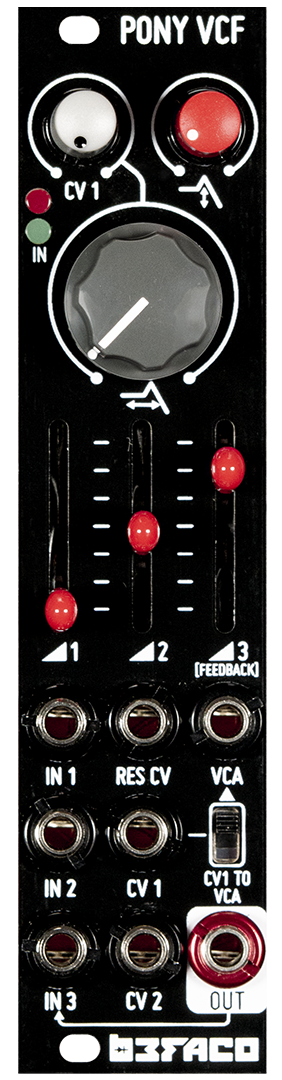

BEFACO PONY VCF

BEFACO PONY VCF

TYPE
Price
Regular price $22000
Regular price Sale price $22000
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
Shipping calculated at checkout.

Space-conscious lowpass filter and volume processor.
A combination of VCF + VCA + Mixer that lets you mix three different sound sources, and shape their tone, and levels in a breeze.
The Pony Filter is built around the SSI2144 FATKEYS™ Chip. Has the elegant sound of the classic transistor filter without the associated distortions, due to Dave Rossum’s “improved ladder” topology.

FEATURES

  •  3 Channel Mixer (Out normalized to channel three for feedback)
  • Temperature-compensated Q and frequency.
  • Compensated Volume VS Resonance
  • 2 Cuttof CV INs.
  • CV 1 Selectable routing Cut-Off or Cut-Off+VCA
  • Voltage controlled Q
  • Two Segment Peak Meter


SPECS

  • Four-pole, 24 dB/octave
  • Current needs: +12V=50mA, -12V=45mA
  • Width: 6 HP
  • Depth Assembled Version: 22mm
  • Depth DIY Kit Version: 35 mm
  • Designed, kits prepared and assembled in Barcelona.
