Vintage-sounding 921 VCO module from the '70s
Authentic reproduction of the circuitry from the "Modular 55, 35 & 15" Series
Artist roster includes world's most famous pop, rock and jazz musicians
VCO features 6 selectable waveforms (sine, triangle, saw, inverted saw, square and inverted square)
Pulse width control with 2 separate CV inputs for fat PWM sounds
Switchable between Sub Audio (LFO) and Audio (VCO) for extended flexibility
VCO offers Frequency and Range controls plus 6 separate audio output, 5 CV inputs and 2 trig inputs
8 controls and switches give you real-time access to all important parameters
Eurorack specs: 14 HP, 50 mA +12 V, 50 mA -12 V 45mm Deep

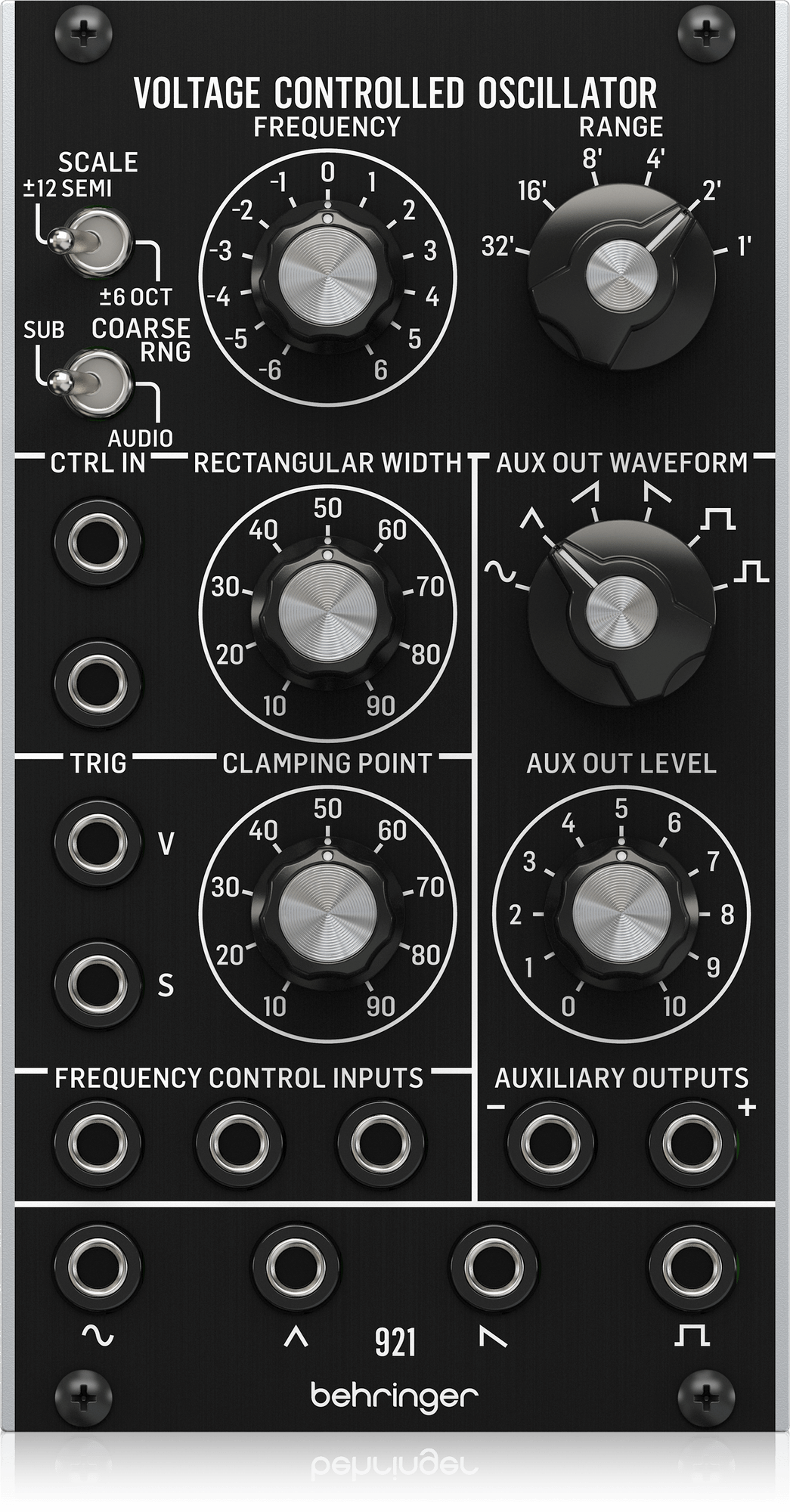

The 921 VOLTAGE CONTROLLED OSCILLATOR module features six selectable waveforms (sine, triangle, saw, inverted saw, square and inverted square). These can be adjusted via the Frequency and Range controls to change the tonality of your signal. Finer frequency control is provided via the Scale and Coarse RNG switches. Patch in some control voltages via the two CTRL IN jacks and adjust with the Rectangular Width knob to create some fat Pulse Width Modulation sounds.
Ins and Outs
Multiple ins and outs are available on the 921 VOLTAGE CONTROLLED OSCILLATOR. Three summed Frequency Control Inputs as well as auxiliary and waveform outputs can be used to introduce modulation signals into the 921 VOLTAGE CONTROLLED OSCILLATOR and out to other modules to create complex patches that are perfect for your next studio session or jam.
