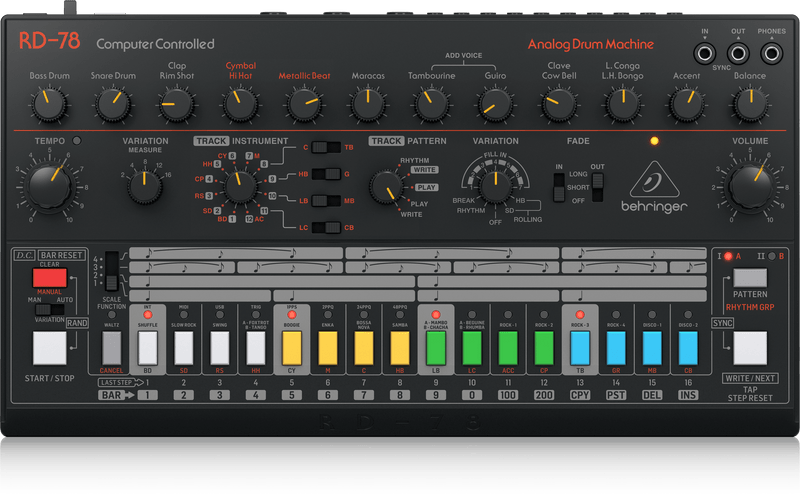

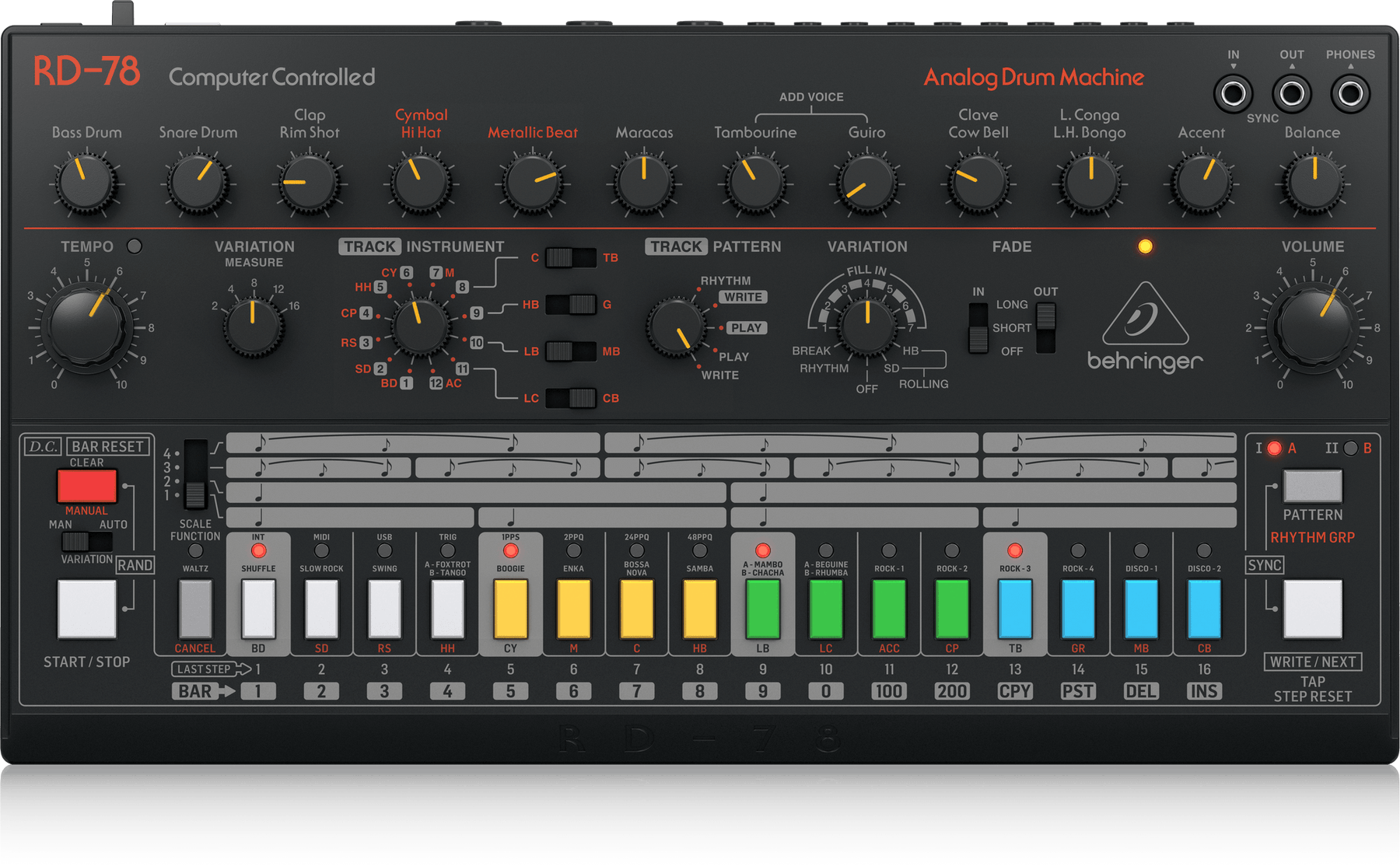

Classic Analog Drum Machine with 15 Drum Sounds, 34 Iconic Rhythm Presets and 16-Step Sequencer
-
Amazing Drum Machine with true analog circuitry for classic sound performance
-
Authentic reproduction of original CR-78 circuitry from the 70s
-
15 original drum sounds with mix parameters and global accent capability
-
34 iconic rhythm patterns with fill in, rolling and break variations
-
10 independent analog outputs for external processing or recording your rhythms as multi-track audio
-
Easy-to-use 16-step drum sequencer with real-time switching between 32 separate patterns
-
Patterns can be chained into full songs with up to 250 bars
-
16 authentic-style step buttons with LED indicators for easy pattern creation
-
18 controls and 29 switches to give you direct and real-time access to all important parameters
-
MIDI and USB implementation for synchronization and connection to external devices
-
Sync options include USB, MIDI, Clock and Internal for maximum versatility
| Number of voices |
15 |
| Number of simultaneous voices |
15 |
| Sound controls |
Accent, Balance, Level x 10, |

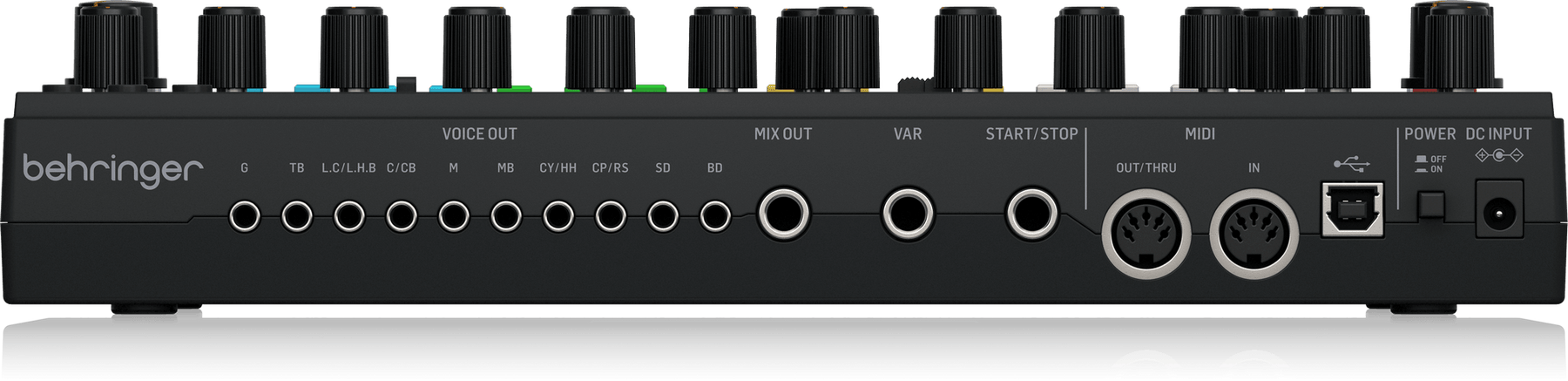

Connectivity
| Outputs |
Mix Out (6.35 mm TS jack) |
| MIDI |
In, Out/Thru (5 pin DIN) |
| USB |
Class Compliant USB 2.0 Type B |
| Footswitches |
Variation, Start/Stop |
| Sync |
In, Out (3.5 mm TRS jack) |
| Supported operating systems |
Windows 7 or higher, |
Sequencer
| Controls |
Tempo |
| Rotary switches |
Variation Measure, Track/Instrument, |
| Toggle switches |
Instrument Select x 4, Fade In/Out Time, Man/Auto Variation, Scale |
| Buttons |
Clear, Start/Stop, Cancel, Rhythm |
Storage
| Preset patterns |
34 |
| Preset variations |
11 |
| Programmable patterns |
32 |
| Programmable tracks |
12 |
Environmental
| Power requirement |
9 V DC 500 mA |
| Operating temperature range |
5° C to 45° C (41° F to 113° F) |
Physical
| Dimensions (H x W x D) |
61.8 x 304.8 x 166.6 mm (2.4 x 12 x 6.6") |
| Weight |
809.5 g (1.78 lb) |
