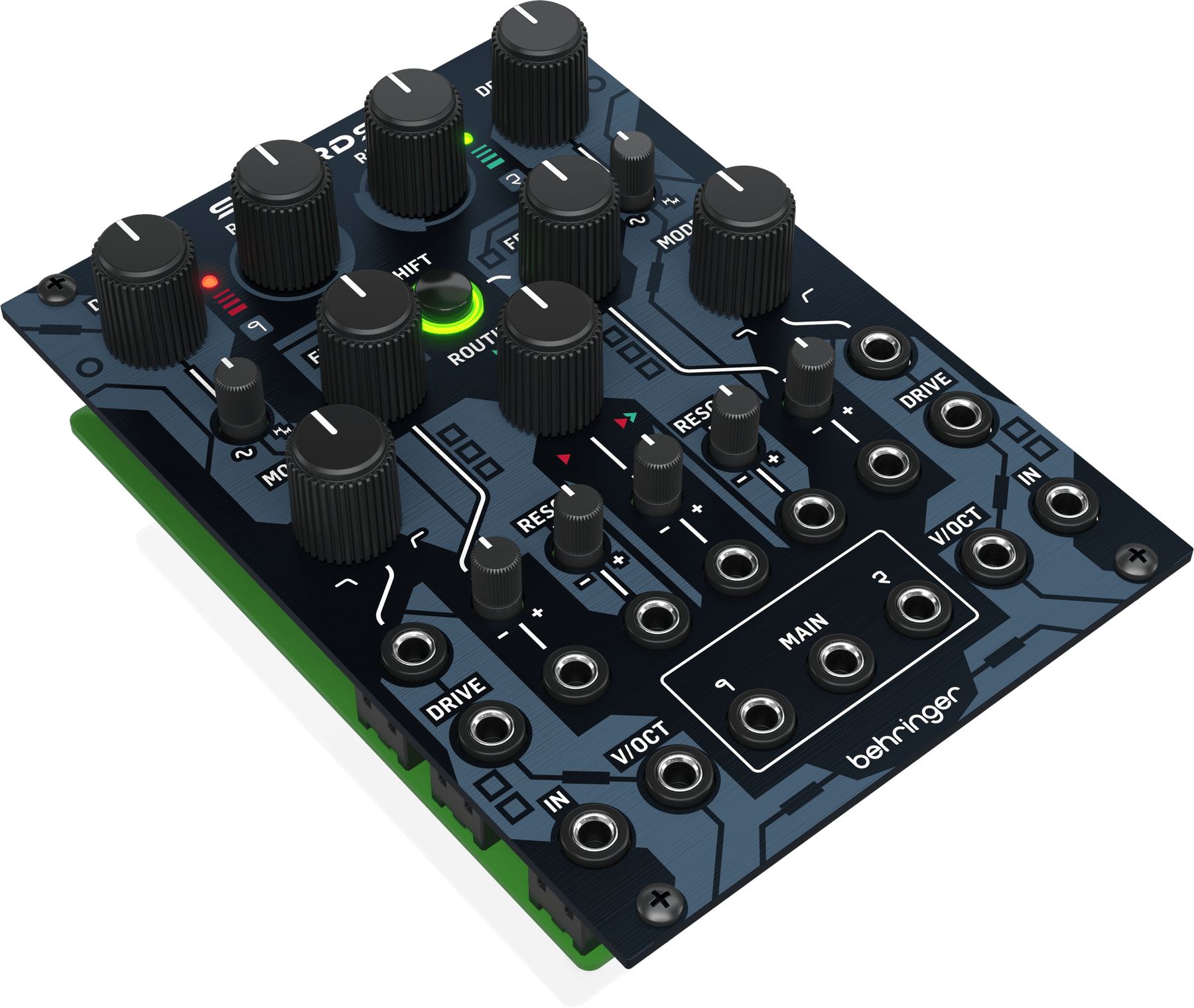

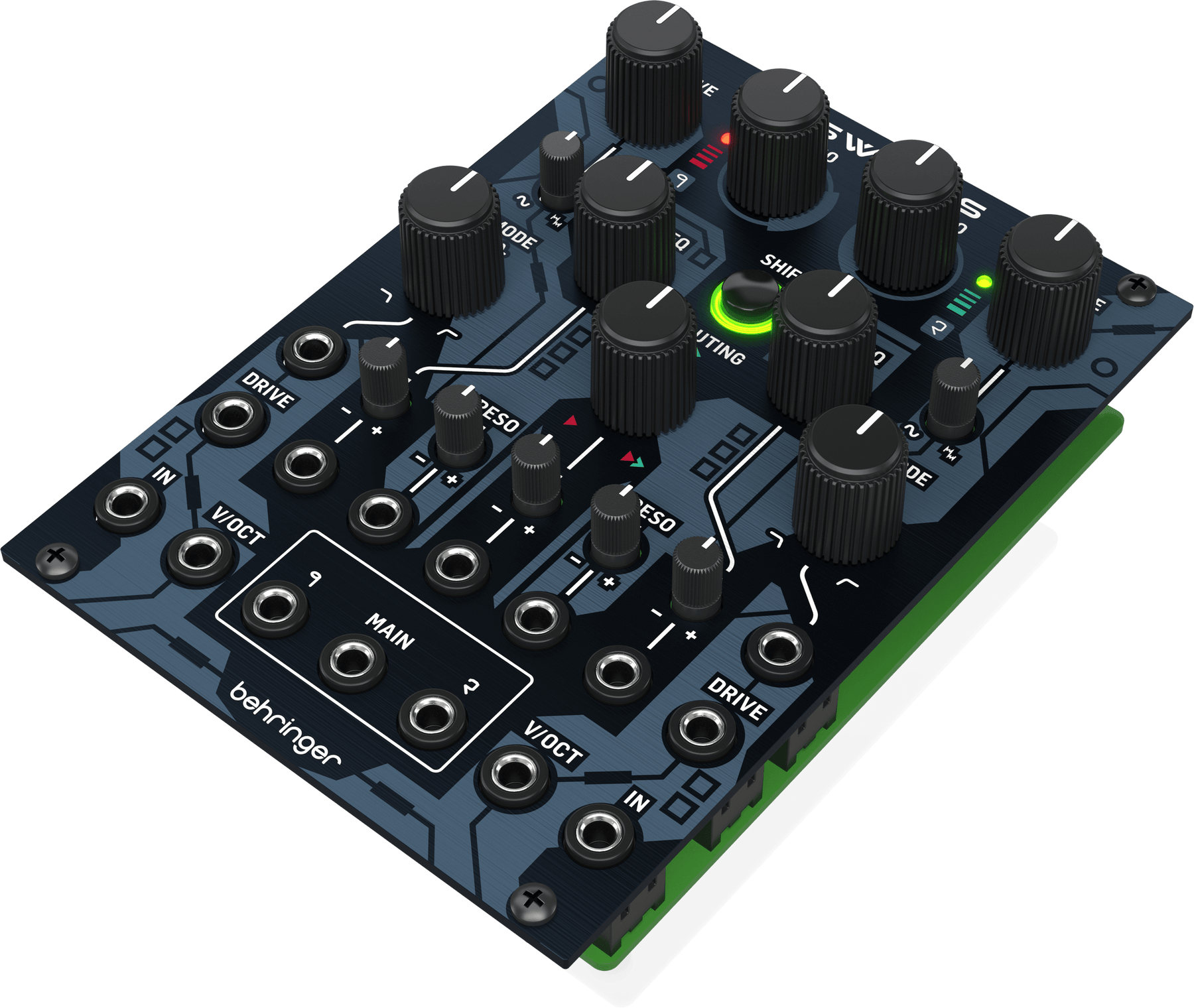

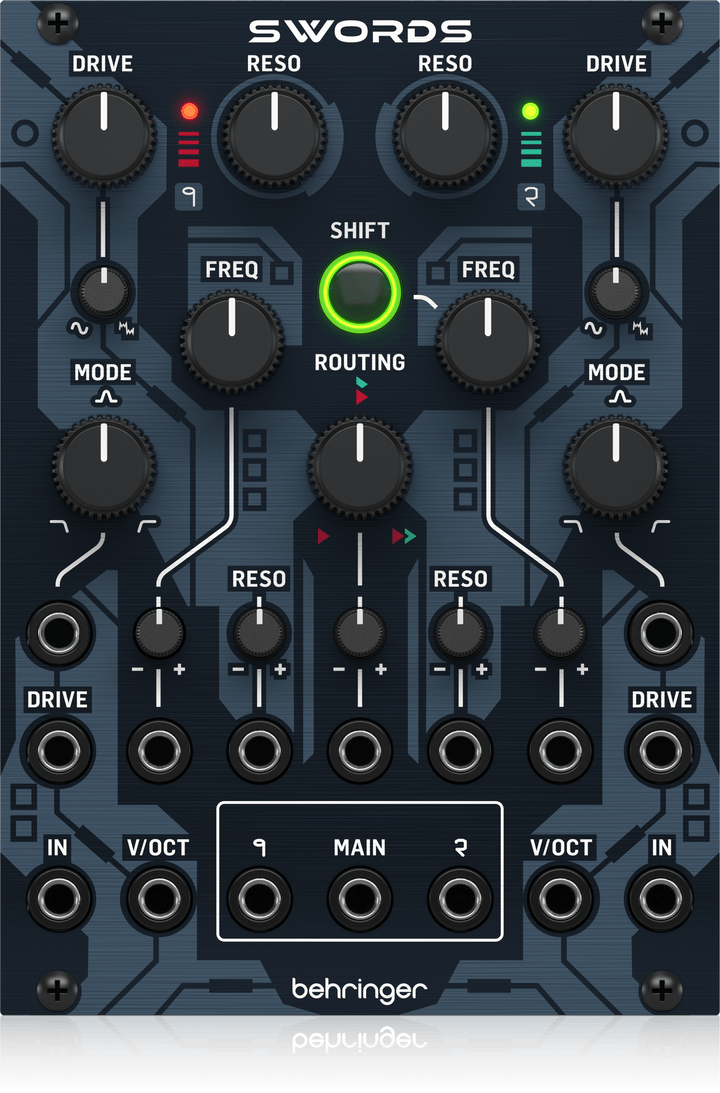

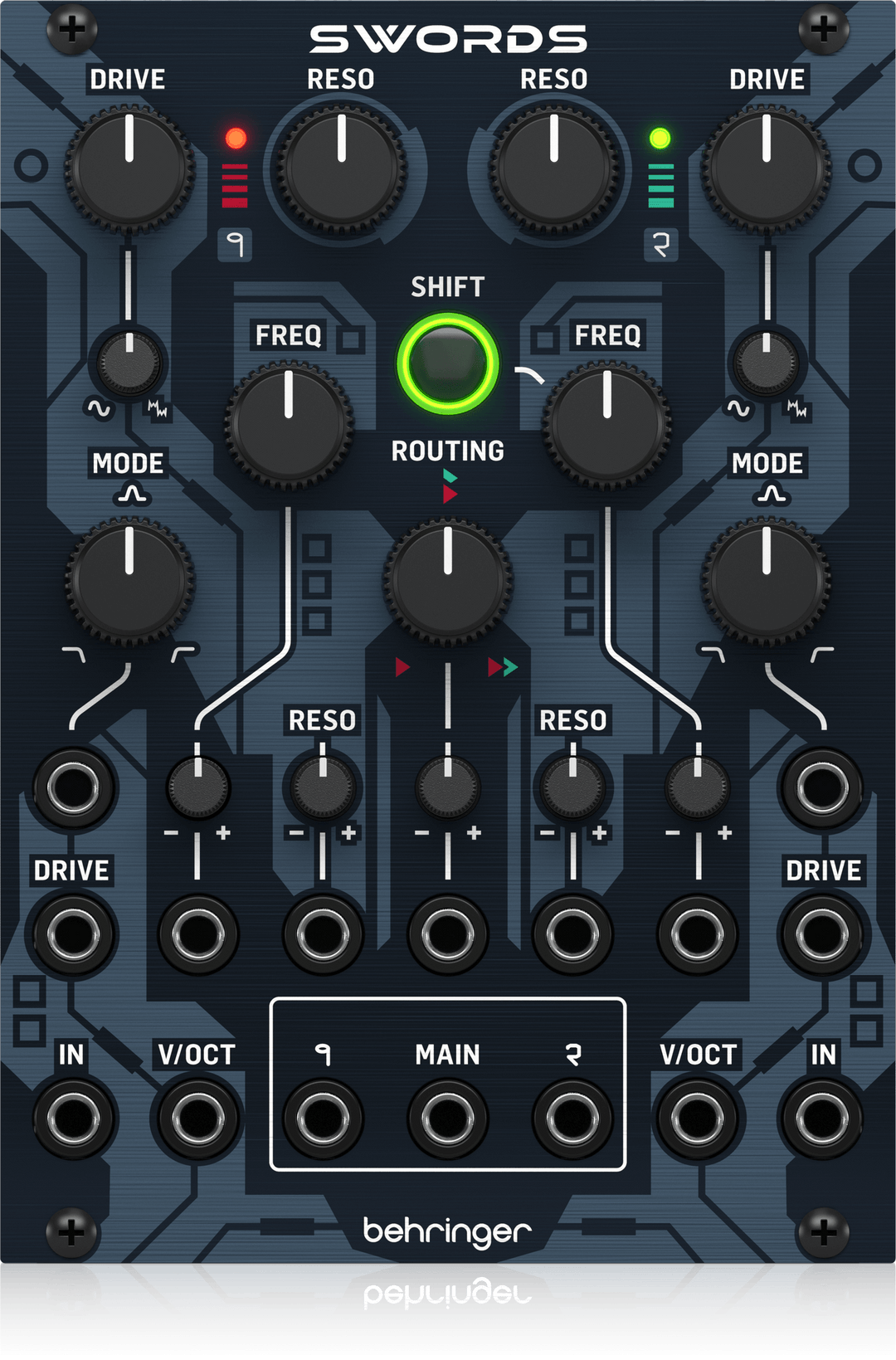

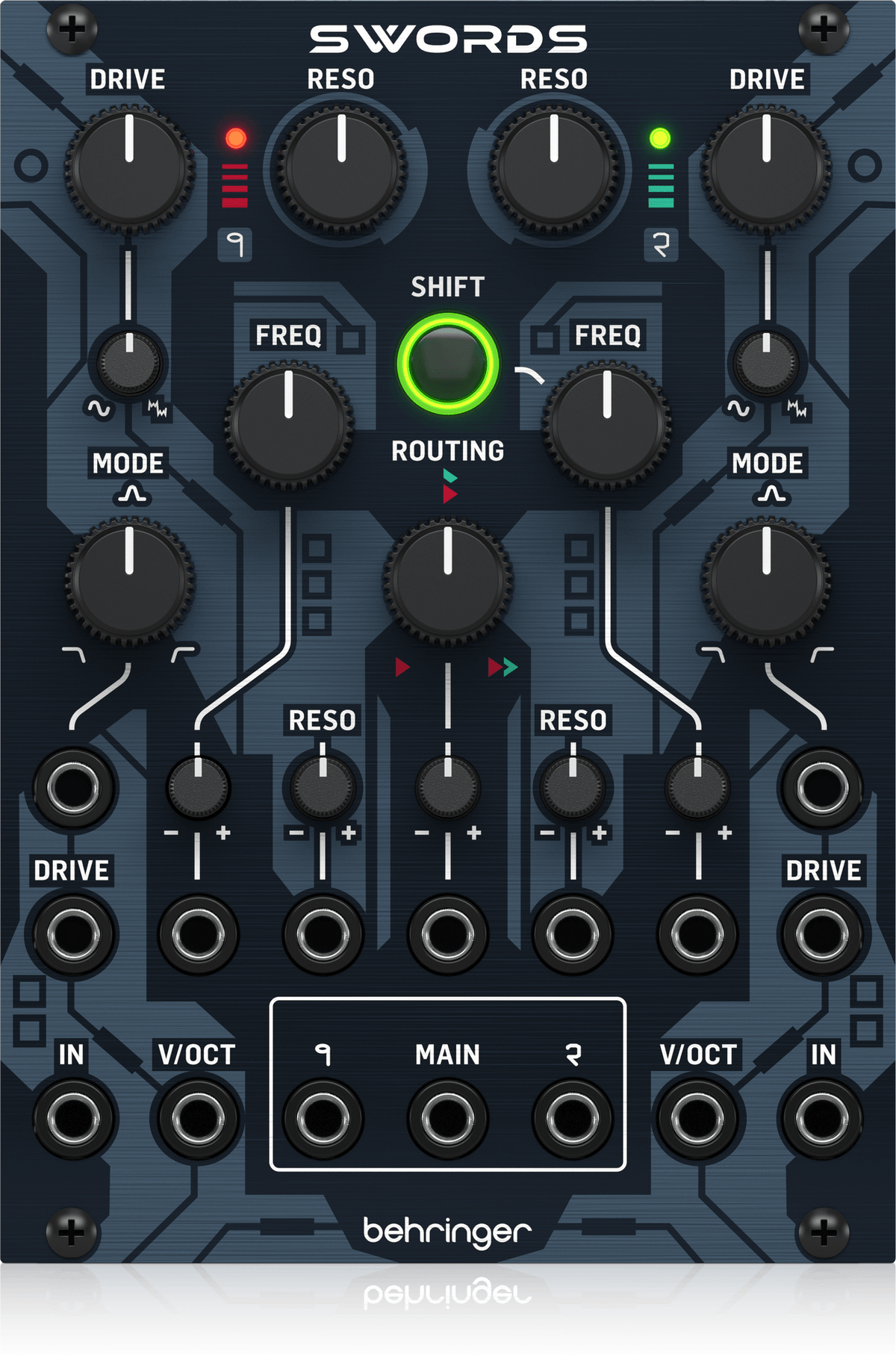

Dual Analog Multi-Mode Filter for Eurorack
SWORDS

Channel a wide range of tones, from smooth to downright searing and aggressive, with your new tool to cut through the mix and stand out: the Behringer SWORDS!

Your Drive Starts Here

SWORDS is a dual analog multi-mode filter, complete with a drive circuit that controls the amount of gain and distortion of the input signal, which can be further varied from soft clipping to two-stage wave folding.

Morphin’ Time

The Mode control morphs the filter response, ranging from low-pass and band-pass to high-pass. Routing for both filters can be manipulated with the Routing knob, blending between single, parallel, or series.

Additional Features
  • CV inputs
  • Drive inputs
  • V/Oct Input
  • Attenuverters for resonance and frequency filter as well as Routing CV inputs
Eurorack Ready

SWORDS is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix SWORDS with other modules in your setup and start creating unique sequences that add a whole new dimension to your sound.

Grab the Behringer SWORDS from your local distributor today!

Inputs
Drive CV

3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2

Mode CV

3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2

Frequency CV

3.5 mm TS jack, -3 V to + 5 V range, impedance 50 kΩ x 2

Resonance CV

3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2

Routing CV

3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ

Audio In

3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2

V/Octave In

3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ x 2

Outputs
Outputs

3.5 mm TS jack, DC coupled, impedance 1 kΩ x 3

Controls

Drive x 2

Response x 2

Frequency x 2

Resonance x 2

Mode x 2

Routing

Attenuverters

Frequency x 2

Resonance x 2

Routing

Buttons

Shift

LEDs

Drive x 2

Power Consumption

150 mA (+12 V) / 140 mA (-12 V)

Physical
Dimensions (W x H x D)

91.12 x 128.50 x 51.9 mm
(3.59 x 5.06 x 2.04")

Eurorack

18 hp

Weight

0.218 Kg (0.48 lb)
