Synthesizer features
- 8-voice polyphonic analogue synthesizer
- Fully analogue signal path
- 384 presets

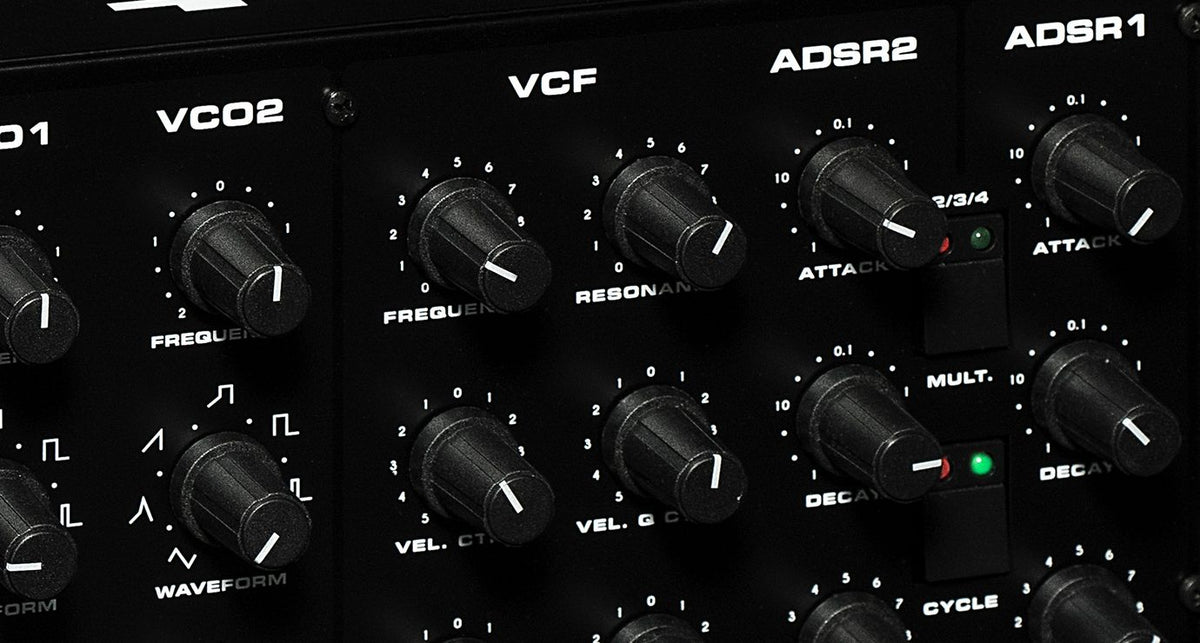

Voice architecture
- 2x VCOs with morphing waveforms
- 12dB LP filter
- EG2 ADSR/TRAPEZOID envelope with assignable destinations
- EG1 ADSR/TRAPEZOID VCA envelope
- Velocity and aftertouch controls with assignable destinations
- 2x LFOs with AD envelopes
Controls
- MIDI/MPE with polyphonic aftertouch
- Polyphonic pitchbend
- Unison
- MIDI over USB
- 256 factory and 128 user presets
- Alternate scales and tunings
Display
- 128×64 OLED display

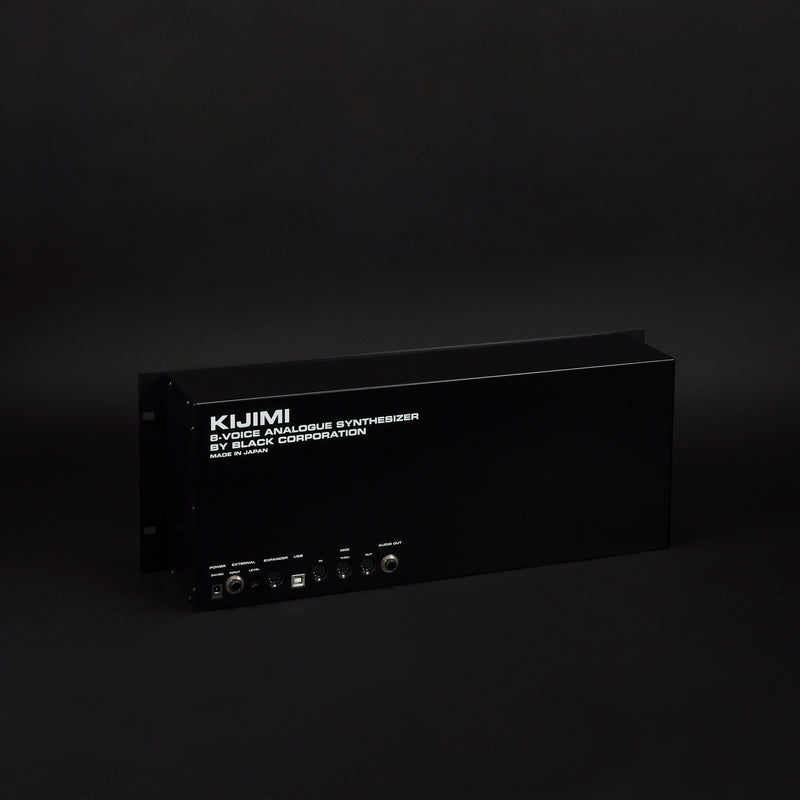

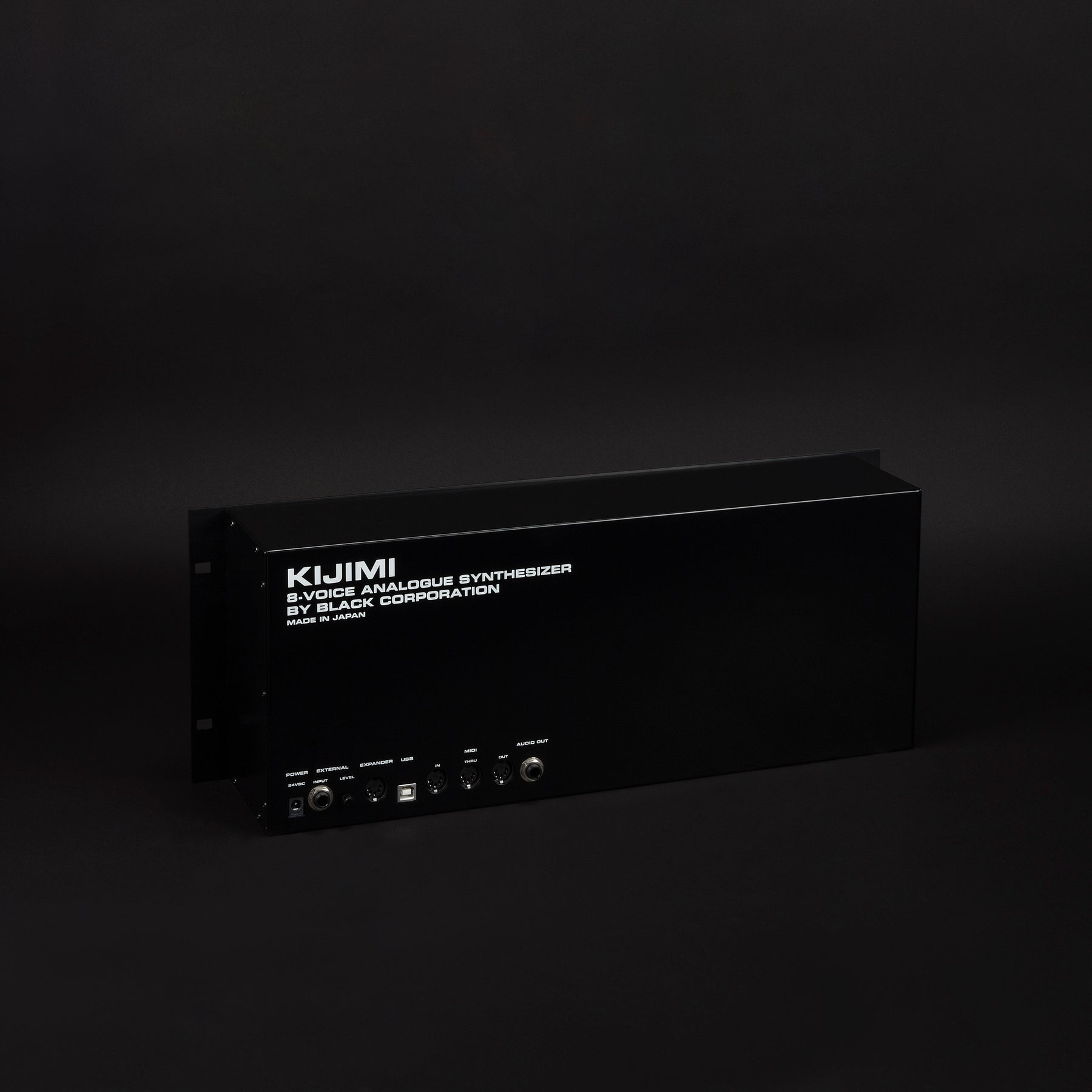

Connectors
- DC input jack (24V)
- External modulation input jack (1/4″)
- Expander jack (DIN5)
- USB jack (type B, device)
- MIDI IN jack (DIN5)
- MIDI THRU jack (DIN5)
- MIDI OUT jack (DIN5)
- AUDIO OUT (1/4″)
Physical specifications
- 19″ 4U rack-mount
- Width: 483mm / 19″
- Height: 178mm / 7″
- Depth: 100mm / 3.9″
- Weight: ~ 3 kg / 6.6 lbs incl external PSU brick.
