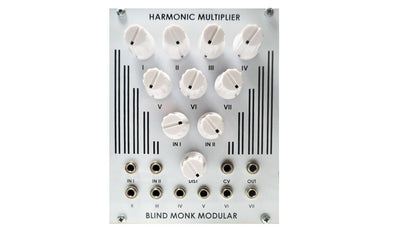

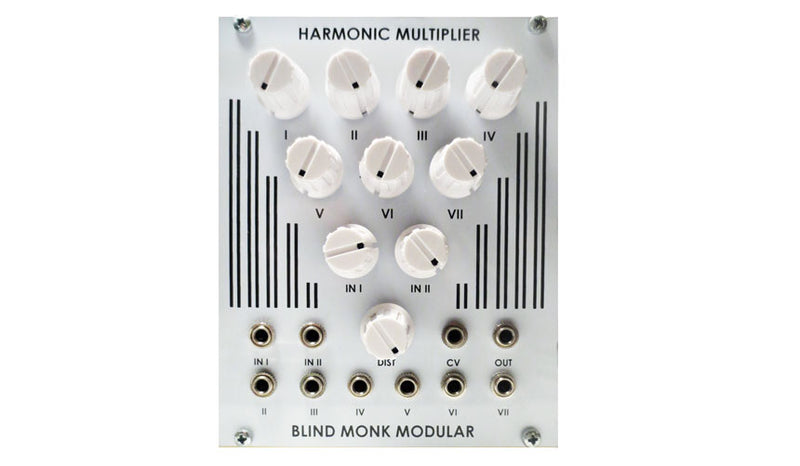

Harmonic generator and wave shaper. Capable of creating unique and complex tones,
it takes an audio input from a triangle wave oscillator and multiplies the frequency up to seven times.
It can process other audio signals as well. There is a built in distortion circuit for additional timbres.
Input two oscillators and get a variety of ring modulator sounds and feedback is available for even
further tones and harmonics

20hp, all analog circuitry

individual knobs and outputs for each of the harmonics

six stages of wave folding

distortion circuit for thick pulse width sounds and sync style tones

feedback capable of creating crunchy digital sounding harmonics

input control voltages for wave symmetry, chorus like effects, and feedback tone control

http://www.blindmonkmodular.com/

• 20HP
• 45 mA +12V
• 45 mA -12V
• 0 mA 5V
